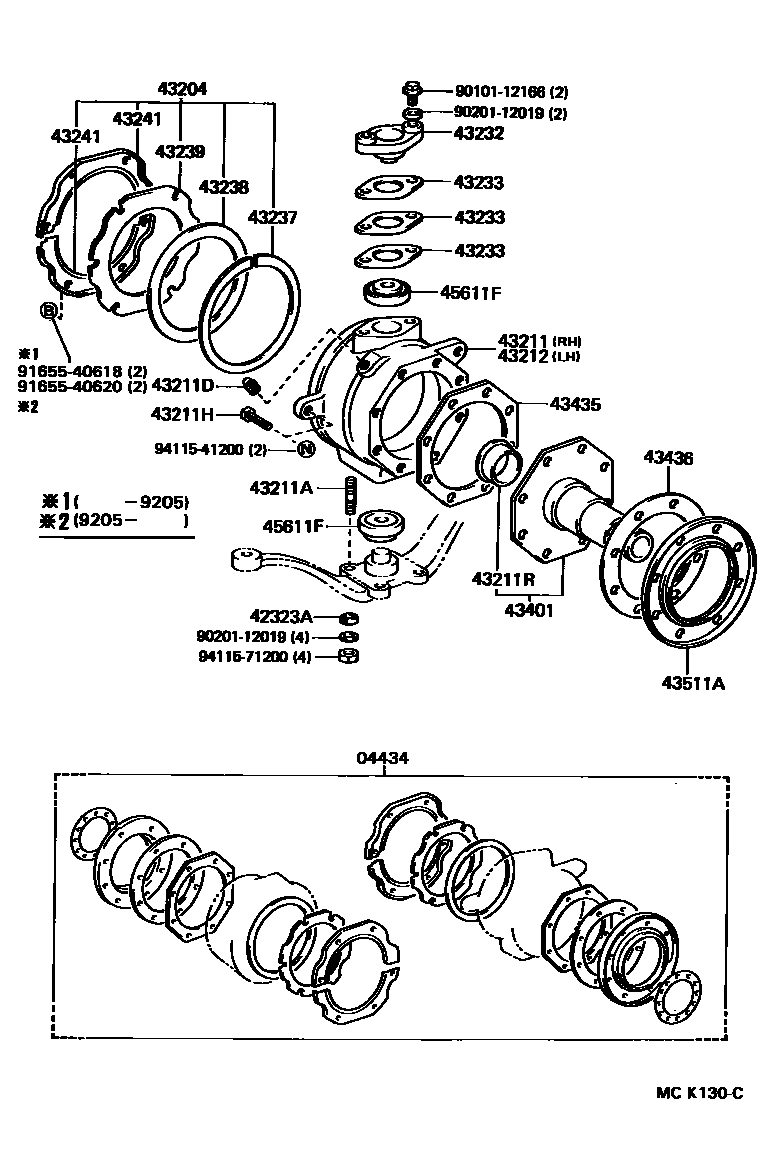

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

04434GASKET KIT, FRONT AXLE OVERHAUL

main04434-60050iFJ80,HDJ80,HZJ80199001-199205

sub04434-60051

main04434-60051iFJ80,FZJ80,HDJ80,HZJ80199205-199801

42323AWASHER, CONE (FOR STEERING KNUCKLE ARM)

main42323-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199801

43204SEAL SUB-ASSY, STEERING KNUCKLE OIL

main43204-60030iFJ80,HDJ80,HZJ80199001-199205

sub43204-60031

main43204-60031iFJ80,FZJ80,HDJ80,HZJ80199205-199801

sub43204-60032

43211KNUCKLE, STEERING, RH

main43211-60060iFJ80,HDJ80,HZJ80199001-199208

main43211-60110iFZJ80,HDJ80,HZJ80199208-199801

sub43211-60111

sub96711-24037

main43211-60120iFZJ80,HDJ80,HZJ80..GX,VX199208-199801

W(ABS)

43211ABOLT, STUD (FOR STEERING SET)

main90116-12007iFJ80,FZJ80,HDJ80,HZJ80199001-199801

sub90126-12005

43211DPLUG (FOR STEERING KNUCKLE)

main90345-53020iFJ80,FZJ80,HDJ80,HZJ80199001-199801

43211HBOLT, ROUND HEXAGON

main90106-12005iFJ80,FZJ80,HDJ80,HZJ80199001-199801

43211RBUSH (FOR STEERING KNUCKLE)

main90381-33001iFJ80,FZJ80,HDJ80,HZJ80199107-199801

main90381-33002iFJ80,HDJ80,HZJ80199001-199107

43212KNUCKLE, STEERING, LH

main43212-60060iFJ80,HDJ80,HZJ80199001-199208

main43212-60110iFZJ80,HDJ80,HZJ80199208-199801

sub43212-60111

sub96711-24037

main43212-60120iFZJ80,HDJ80,HZJ80..GX,VX199208-199801

W(ABS)

43232CAP, STEERING KNUCKLE BEARING

main43232-60030iFJ80,FZJ80,HDJ80,HZJ80199001-199801

sub43232-60031

43233SHIM, STEERING KNUCKLE ADJUST, NO.1

main43233-60030iFJ80,FZJ80,HDJ80,HZJ80199001-199801

T=0.20

main43234-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199801

T=0.50

main43235-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199801

T=1.00

main43236-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199801

T=0.10

43237RING, STEERING KNUCKLE OIL SEAL, INNER

main43237-60040iFJ80,FZJ80,HDJ80,HZJ80199001-199801

sub43237-60060

43238SEAL, STEERING KNUCKLE OIL, INNER

main43238-60020iFJ80,HDJ80,HZJ80199001-199205

sub43238-60021

main43238-60021iFJ80,FZJ80,HDJ80,HZJ80199205-199801

43239SEAL, STEERING KNUCKLE OIL, OUTER

main43239-60030iFJ80,FZJ80,HDJ80,HZJ80199001-199801

43241COVER, STEERING KUNCKLE OIL SEAL

main43241-60040iFJ80,FZJ80,HDJ80,HZJ80199001-199801

43401SPINDLE SUB-ASSY, STEERING KNUCKLE

main43401-60040iFJ80,HDJ80,HZJ80199001-199107

sub43401-60041

main43401-60041iFJ80,FZJ80,HDJ80,HZJ80199107-199801

sub43401-60080

43435GASKET, KNUCKLE SPINDLE

main43435-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199801

43436GASKET, KNUCKLE SPINDLE OIL RETAINER

main43436-60011iFJ80,FZJ80,HDJ80,HZJ80199001-199801

43511ASEAL, DUST (FOR FRONT AXLE HUB)

main90313-93003iFJ80,FZJ80,HDJ80,HZJ80199001-199801

45611FBEARING(FOR STEERING KNUCKLE ARM)

main90366-20003iFJ80,FZJ80,HDJ80,HZJ80199001-199801

9010112166

main90101-12166

9020112019

main90201-12019

9165540618

main91655-40618

9165540620

main91655-40620

9411541200

main94115-41200

9411571200

main94115-71200

26 parts on this diagram · 2 diagrams in section
