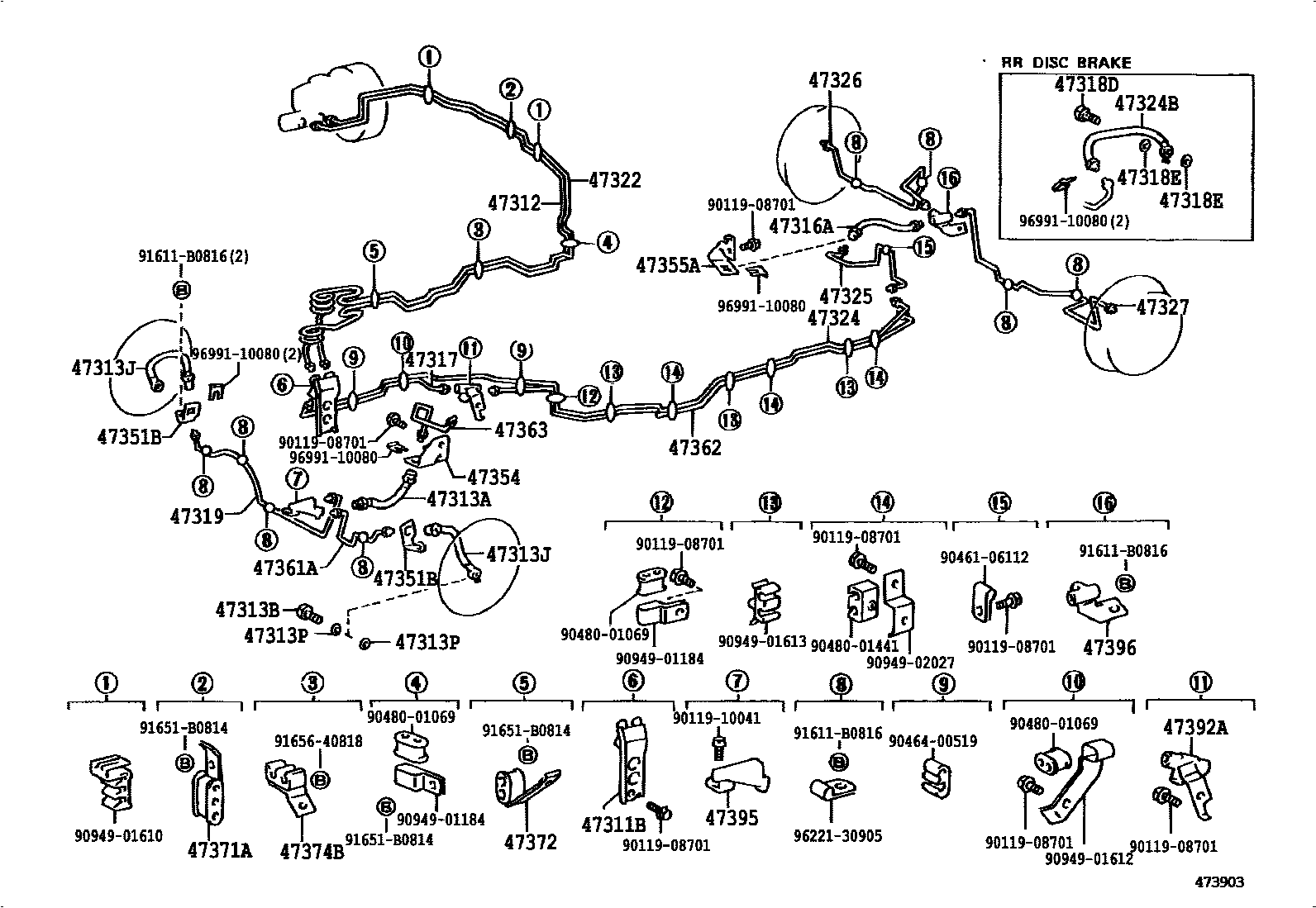

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1W(ANTI-LOCK BRAKING SYSTEM) 0007 1W(ANTI-LOCK BRAKING SYSTEM) 0008 1 0009 1W(ANTI-LOCK BRAKING SYSTEM)

47311TUBE, FRONT BRAKE, NO.1

main47311-60470iFZJ80,HDJ80,HZJ80..GX,VX199208-199801

main47311-60480iFZJ80..LHD..(GX,VX)199501-199801

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main47391-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

47312TUBE, FRONT BRAKE, NO.2

main47312-60701iHDJ80..RHD199001-199208

main47312-60720iFJ80,HDJ80,HZJ80..LHD199001-199206

main47312-60780iHDJ80..RHD199208-199407

main47312-60781iFZJ80,HDJ80..RHD199501-199801

main47312-60790iFJ80,FZJ80,HDJ80,HZJ80..LHD199206-199801

main47312-60800iHDJ80..RHD199208-199407

W(*66)

main47312-60801iFZJ80,HDJ80..RHD199501-199801

W(*66)

main47312-60810iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199208-199801

W(*66)

47313TUBE, FRONT BRAKE, NO.3

main47313-60210iHDJ80..RHD199208-199407

main47313-60211iFZJ80,HDJ80..RHD199501-199801

main47313-60221iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199208-199801

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02716iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

W(*66),RH

main90947-02815iFZJ80,HDJ80,HZJ80199501-199801

W(*66),LH

sub90947-02969

main90947-02817iFZJ80,HDJ80..GX,VX199501-199801

W(*66),RH

main96940-34006iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

W(*66),LH

sub90947-02934

main96940-34006iFJ80,FZJ80,HDJ80,HZJ80199001-199501

sub90947-02934

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iFJ80,FZJ80,HDJ80,HZJ80199001-199801

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02612iFJ80,HDJ80,HZJ80199001-199208

LH

main90947-02613iFJ80,HDJ80,HZJ80199001-199208

RH

main90947-02714iFZJ80,HDJ80,HZJ80199208-199801

sub90947-02967

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iFJ80,FZJ80,HDJ80,HZJ80199001-199801

47316TUBE, FRONT BRAKE, NO.6

main47316-60431iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

main47316-60432iFZJ80,HDJ80..GX,VX199501-199801

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02816iFZJ80,HDJ80,HZJ80199501-199801

sub90947-02968

main96940-33406iFJ80,FZJ80,HDJ80,HZJ80199001-199501

sub90947-02933

47317TUBE, FRONT BRAKE, NO.7

main47317-60020iFJ80199001-199208

main47317-60040iHDJ80,HZJ80199001-199208

main47317-60050iFZJ80,HDJ80,HZJ80199208-199501

main47317-60051iFZJ80,HDJ80,HZJ80199501-199801

main47317-60060iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

W(*66)

main47317-60061iFZJ80,HDJ80..GX,VX199501-199801

W(*66)

47318TUBE, FRONT BRAKE, NO.8

main47318-60080iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

main47318-60081iFZJ80,HDJ80..GX,VX199501-199801

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015iFJ80,HDJ80,HZJ80..GX,VX199001-199801

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074iFJ80,HDJ80,HZJ80..GX,VX199001-199801

47319TUBE, FRONT BRAKE, NO.9

main47319-60080iFJ80,HDJ80,HZJ80199001-199208

main47319-60090iFZJ80,HDJ80,HZJ80199208-199801

main47319-60100iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

W(*66)

main47319-60101iFZJ80,HDJ80..GX,VX199501-199801

W(*66)

47322TUBE, REAR BRAKE, NO.2

main47322-60581iHDJ80..RHD199001-199208

main47322-60600iFJ80,HDJ80,HZJ80..LHD199001-199206

main47322-60660iHDJ80..RHD199208-199407

main47322-60661iFZJ80,HDJ80..RHD199501-199801

main47322-60670iFJ80,FZJ80,HDJ80,HZJ80..LHD199206-199801

main47322-60680iHDJ80..RHD199208-199407

W(*66)

main47322-60681iFZJ80,HDJ80..RHD199501-199801

W(*66)

main47322-60691iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199208-199501

W(*66)

sub47322-60692

main47322-60692iFZJ80,HDJ80..LHD..(GX,VX)199501-199801

W(*66)

47324TUBE, REAR BRAKE, NO.4

main47324-60130iFJ80199001-199208

main47324-60150iHDJ80,HZJ80199001-199208

main47324-60210iFZJ80,HDJ80,HZJ80199208-199501

main47324-60211iFZJ80,HDJ80,HZJ80199501-199801

47324BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)

main90947-02614iFZJ80,HDJ80199001-199801

RH

main90947-02615iFZJ80,HDJ80,HZJ80199001-199801

LH

47325TUBE, REAR BRAKE, NO.5

main47325-60110iFJ80,FZJ80,HDJ80,HZJ80199001-199501

main47325-60111iFZJ80,HDJ80,HZJ80199501-199801

47326TUBE, REAR BRAKE, NO.6

main47326-60121iFJ80,HDJ80,HZJ80199001-199208

main47326-60131iFJ80,HDJ80,HZJ80199001-199208

W(FULL FLOATING)

main47326-60141iFJ80,HDJ80,HZJ80..GX,VX199001-199208

W(FULL FLOATING AXLE & REAR DISC BRAKE)

main47326-60160iHZJ80199208-199801

main47326-60170iHZJ80199208-199501

W(FULL FLOATING)

main47326-60170iHZJ80..GX199608-199801

W(*FFA)

main47326-60170iHZJ80..GX199503-199608

W(*RDL & *FFA)

main47326-60180iFZJ80,HDJ80199208-199801

main47326-60180iHZJ80199208-199501

W(FULL FLOATING AXLE & REAR DISC BRAKE)

47327TUBE, REAR BRAKE, NO.7

main47327-60031iFJ80,HDJ80,HZJ80199001-199208

main47327-60041iFJ80,HDJ80,HZJ80199001-199208

W(FULL FLOATING)

main47327-60051iFJ80,HDJ80,HZJ80..GX,VX199001-199208

W(FULL FLOATING AXLE & REAR DISC BRAKE)

main47327-60060iHZJ80199208-199801

main47327-60070iHZJ80..GX199503-199608

W(*RDL & *FFA)

main47327-60070iHZJ80199208-199501

W(FULL FLOATING)

main47327-60070iHZJ80..GX199608-199801

W(*FFA)

main47327-60080iFZJ80,HDJ80199208-199801

main47327-60080iHZJ80199208-199501

W(FULL FLOATING AXLE & REAR DISC BRAKE)

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-60170iFJ80,HDJ80,HZJ80199001-199208

LH

main47351-60180iFJ80,HDJ80,HZJ80199001-199208

RH

main47351-60210iFZJ80,HDJ80,HZJ80199208-199801

RH

main47351-60210iFZJ80,HDJ80..GX,VX199501-199801

W(*66)

47354BRACKET, FRONT FLEXIBLE HOSE

main47354-60111iFJ80,HDJ80,HZJ80199001-199208

main47354-60120iFZJ80,HDJ80,HZJ80199208-199501

main47354-60121iFZJ80,HDJ80,HZJ80199501-199801

47355ABRACKET, FLEXIBLE HOSE, NO.5

main47355-60050iFJ80,FZJ80,HDJ80,HZJ80199001-199501

main47355-60051iFZJ80,HDJ80,HZJ80199501-199801

47361ATUBE, FRONT BRAKE, NO.10

main47361-60090iFJ80,HDJ80,HZJ80199001-199208

main47361-60100iFZJ80,HDJ80,HZJ80199208-199801

47362TUBE, FRONT BRAKE, NO.11

main47362-60030iFJ80,HDJ80,HZJ80199001-199208

main47362-60040iFZJ80,HDJ80,HZJ80199208-199501

main47362-60041iFZJ80,HDJ80,HZJ80199501-199801

main47362-60050iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

W(*66)

main47362-60051iFZJ80,HDJ80..GX,VX199501-199801

W(*66)

47363TUBE, FRONT BRAKE, NO.12

main47363-60011iFJ80,HDJ80,HZJ80199001-199208

main47363-60020iFZJ80,HDJ80,HZJ80199208-199501

main47363-60021iFZJ80,HDJ80,HZJ80199501-199801

47371ACLAMP, BRAKE TUBE, NO.1

main47371-60030iFZJ80,HDJ80..LHD..(GX,VX)199208-199801

main47371-60050iHDJ80..RHD199001-199208

main47371-60060iFZJ80,HDJ80..RHD199208-199801

47372CLAMP, BRAKE TUBE, NO.2

main47372-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199801

main47372-60030iHDJ80..RHD199208-199801

W(*66)

47374BCLAMP, BRAKE TUBE, NO.4

main47371-60030iHDJ80..RHD199208-199407

W(*66)

main47372-60050iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199208-199501

W(*66)

main47372-60080iFZJ80,HDJ80..RHD199501-199801

W(*66)

main47374-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

main90949-01610iFZJ80,HDJ80..LHD..(GX,VX)199501-199801

W(*66)

47392AWAY, BRAKE TUBE, NO.2

main47392-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

main47392-60020iFZJ80,HDJ80..GX,VX199208-199801

W(*66)

47395WAY, BRAKE TUBE, NO.3

main47395-60010iFJ80,HDJ80,HZJ80199001-199208

main47395-60040iFZJ80,HDJ80,HZJ80199208-199801

main47395-60050iFZJ80,HDJ80..GX,VX199208-199801

W(*66)

47396WAY, BRAKE TUBE, NO.4

main47396-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

9011908701

main90119-08701

9011910041

main90119-10041

9046106112

main90461-06112

9046400519

main90464-00519

9048001069

main90480-01069

9048001441

main90480-01441

9094901184

main90949-01184

9094901610

main90949-01610

9094901612

main90949-01612

9094901613

main90949-01613

9094902027

main90949-02027

91611B0816

main91611-B0816

91651B0814

main91651-B0814

9165640818

main91656-40818

9622130905

main96221-30905

9699110080

main96991-10080

49 parts on this diagram · 8 diagrams in section
