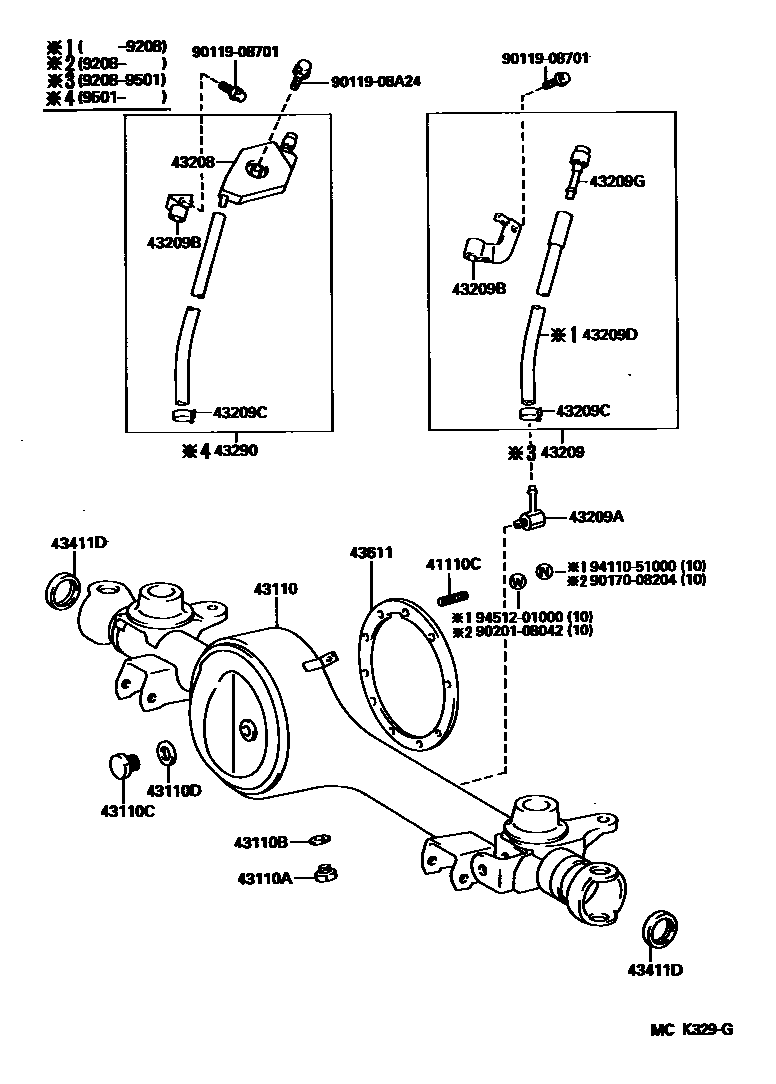

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1W(DIFFERENTIAL LOCK) 0004 1W(DIFFERENTIAL LOCK)

41110CBOLT, STUD (FOR FRONT DIFFERENTIAL CARRIER)

main90116-08233iFJ80,FZJ80,HDJ80,HZJ80199001-199801

S=14 & 14,L=42

main90116-08329iHZJ80;FJ80,HDJ80..ATM199001-199801

S=17 & 12,L=37,W(DIFFERENTIAL LOCK)

main90116-08329iFZJ80,HDJ80,HZJ80199208-199801

S=17 & 12,L=37,W(*FDL)

main90116-08329iFJ80,FZJ80,HDJ80,HZJ80199001-199801

S=17 & 12,L=37

main90116-08330iFZJ80,HDJ80..STD199208-199801

S=17 & 12,L=111,W(*FDL)

main90116-08330iHZJ80..GX199001-199801

S=17 & 12,L=111,W(DIFFERENTIAL LOCK)

43110HOUSING ASSY, FRONT AXLE

main43110-60270iHDJ80..RHD..MTM199201-199208

W(LSD)

main43110-60270iHDJ80..RHD199001-199208

main43110-60280iHZJ80..LUB;FJ80,HDJ80..LHD..ATM199012-199208

W(LSD)

main43110-60280iFJ80,HDJ80,HZJ80..LHD199001-199208

main43110-60290iHDJ80..RHD..MTM199001-199208

W(*FDL)

main43110-60300iHDJ80..LHD..MTM199001-199208

W(*FDL)

main43110-60370iHDJ80..RHD199402-199407

W(WINCH OR *66)

main43110-60370iFZJ80..RHD199605-199801

W(*66 & LSD)

main43110-60370iFZJ80,HDJ80..RHD199208-199801

main43110-60380iFZJ80,HDJ80,HZJ80..LHD199208-199801

main43110-60380iFZJ80..LUB..GX199605-199801

W(PTO DRIVE GEAR) OR W(*66)

main43110-60380iFZJ80,HDJ80,HZJ80..LHD..(GX,VX)199402-199501

W(WINCH OR *66)

main43110-60380iHZJ80..STD199404-199501

W(WINCH)

main43110-60390iHDJ80..RHD199208-199801

W(*FDL)

main43110-60400iHZJ80..GX199208-199801

W(*FDL)

43110APLUG SUB-ASSY, DRAIN

main90341-18040iFJ80,FZJ80,HDJ80,HZJ80199001-199801

43110BGASKET, DRAIN

main12157-10010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

43110CPLUG (FOR FRONT AXLE HOUSING)

main90341-18006iFJ80,FZJ80,HDJ80,HZJ80199001-199801

43110DGASKET (FOR FRONT AXLE HOUSING PLUG)

main12157-10010iFJ80,FZJ80,HDJ80,HZJ80199001-199801

43208TANK SUB-ASSY, FRONT AXLE BREATHER

main43208-60010iFZJ80,HDJ80,HZJ80199501-199801

43209HOSE SUB-ASSY, FRONT AXLE BREATHER

main43209-60160iFZJ80,HDJ80,HZJ80199208-199501

sub43290-60010

sub90119-08A24

main43209-60170iFZJ80,HDJ80,HZJ80199208-199501

W(*MW)

43209AUNION (FOR FRONT AXLE BREATHER HOSE)

main90404-10019iFJ80,HDJ80,HZJ80199001-199208

main90904-04001iFZJ80,HDJ80,HZJ80199208-199801

43209BCLAMP (FOR FRONT AXLE BREATHER HOSE)

main90461-10387iFJ80,HDJ80,HZJ80199001-199208

main90461-12404iFZJ80,HDJ80,HZJ80199208-199801

43209CCLIP, HOSE (FOR FRONT AXLE BREATHER HOSE)

main96132-30600iFJ80,FZJ80,HDJ80,HZJ80199001-199801

sub96132-51100

43209DHOSE, NO.1 (FOR FRONT AXLE BREATHER)

main90445-12248iFJ80,HDJ80,HZJ80199002-199208

L=350,W(WINCH)

main90445-12249iFJ80,HDJ80,HZJ80199002-199208

L=390

main95333-06040iFJ80,HDJ80,HZJ80199001-199002

L=400

43209GPLUG, BREATHER (FOR FRONT AXLE)

main90930-03097iFJ80,FZJ80,HDJ80,HZJ80199001-199501

43290HOSE ASSY, FRONT AXLE BREATHER

main43290-60010iFZJ80,HDJ80,HZJ80199501-199801

main43290-60020iFZJ80,HDJ80..LHD199501-199801

W(WINCH)

43411DSEAL, TYPE T OIL (FOR FRONT DRIVE SHAFT)

main90310-35005iFJ80,FZJ80,HDJ80,HZJ80199001-199409

sub90310-35010

main90310-35010iFZJ80,HDJ80,HZJ80199409-199801

43611GASKET, FRONT AXLE DIFFERENTIAL CARRIER

main42181-60040iHZJ80..LUB;FJ80,HDJ80..ATM199012-199208

W(LSD)

sub42181-60090

main42181-60040iFJ80,HDJ80,HZJ80199001-199208

sub42181-60090

main42181-60050iHZJ80;FJ80,HDJ80..ATM199001-199208

W(*FDL)

main42181-60080iFZJ80,HDJ80..STD199501-199801

W(*FDL)

sub42181-60170

main42181-60080iFZJ80,HDJ80,HZJ80199208-199501

W(*FFA & *FDL)

sub42181-60170

main42181-60090iFZJ80..RHD199605-199801

W(*66)

sub42181-60160

main42181-60090iFZJ80..RHD199605-199801

W(PTO DRIVE GEAR) OR W(*66)

sub42181-60160

main42181-60090iFZJ80,HDJ80,HZJ80..GX,VX199402-199501

W(WINCH OR *66)

sub42181-60160

main42181-60090iHZJ80..STD199404-199501

W(WINCH)

sub42181-60160

main42181-60090iFZJ80,HDJ80,HZJ80199208-199801

sub42181-60160

9011908701

main90119-08701

9011908A24

main90119-08A24

9017008204

main90170-08204

9020108042

main90201-08042

9411051000

main94110-51000

9451201000

main94512-01000

22 parts on this diagram · 4 diagrams in section
