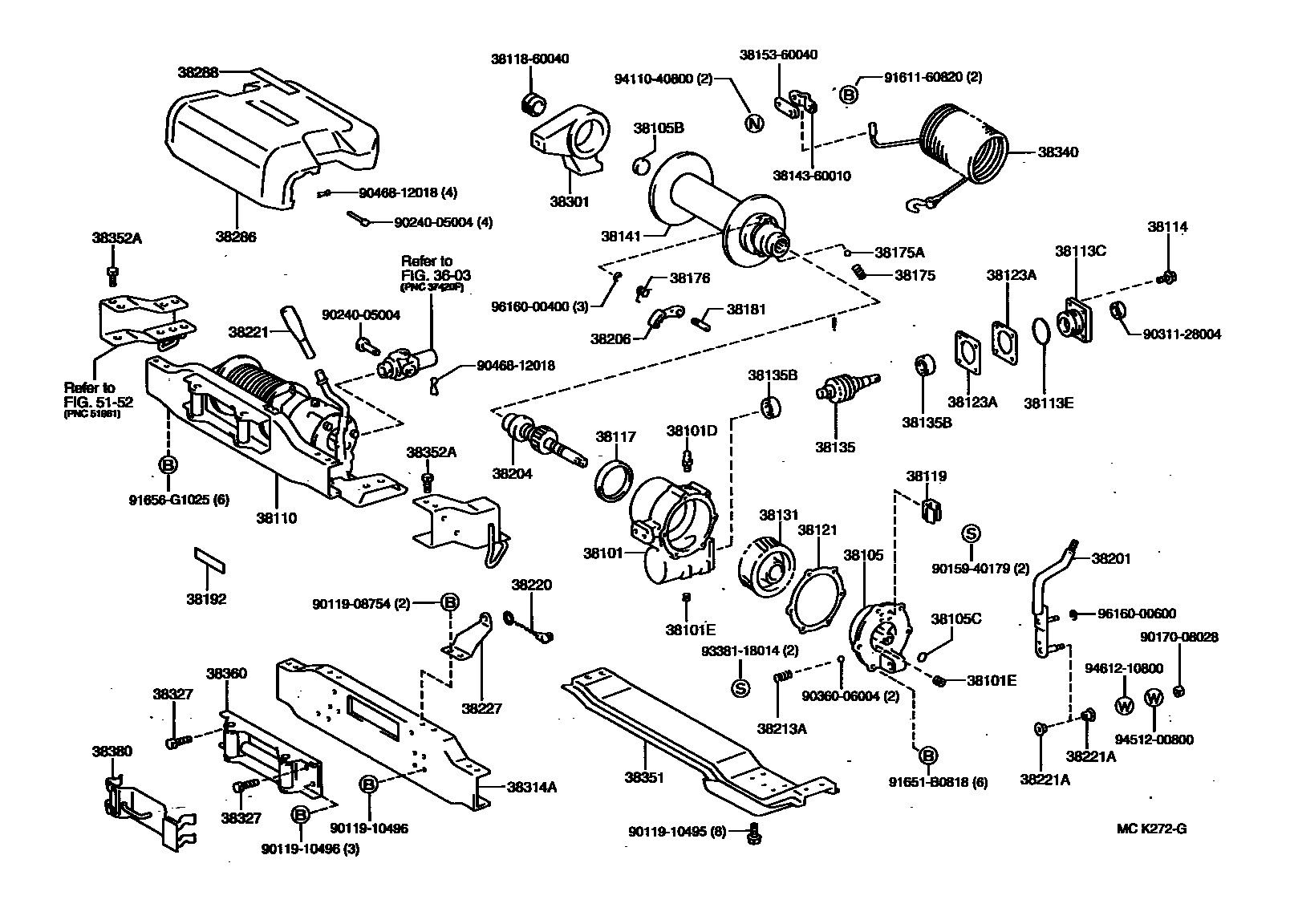

WINCH
3603
38101CASE SUB-ASSY, WINCH GEAR
38101DPLUG, BREATHER (FOR WINCH GEAR CASE)
38101EPLUG (FOR WINCH GEAR CASE)
38105COVER SUB-ASSY, WINCH GEAR CASE
38105BPLUG, TIGHT (FOR WINCH GEAR CASE COVER)
38105CRING, O (FOR WINCH GEAR CASE COVER)
38110WINCH ASSY
38113CRETAINER, WORM BEARING, NO.1
38113ERING, O (FOR WINCH WORM BEARING RETAINER NO.1)
38114BOLT, WINCH WORM BEARING RETAINER
38117SEAL, WINCH GEAR CASE COVER
38119CLIP, WINCH GEAR CASE COVER
38121GASKET, WINCH GEAR CASE COVER
38123ASHIM, WINCH WORM ADJUST, NO.1
T=0.228
T=0.500
T=1.000
38131GEAR, WORM
38135WORM, WINCH
38135BBEARING (FOR WINCH WORM)
38141DRUM, WINCH
38175SPRING, WINCH BRAKE, NO.1
38175ABALL (FOR WINCH BRAKE SPRING NO.1)
38176SPRING, WINCH BRAKE, NO.1
38181PIN, WINCH BRAKE
38192PLATE, WINCH CAUTION, NO.2
38201LEVER SUB-ASSY, WINCH CLUTCH
38204SHAFT ASSY, WINCH CLUTCH HUB
38206BRAKE ASSY, WINCH
38213ASPRING, WINCH CLUTCH HUB SHIFT
38220CAP ASSY, WINCH CLUTCH LEVER
38221LEVER, CLUTCH HUB SHIFT
38221ABUSH (FOR CLUTCH HUB SHIFT LEVER)
38227PLATE, WINCH CLUTCH LEVER SHIFT LOCK
38288LABEL, WINCH COVER
38301BRACKET SUB-ASSY, WINCH END
38314ACROSSMEMBER, WINCH SUPPORT, FRONT
38327BOLT, WINCH R0LLER BRACKET
sub91651-B1025
38340WIRE ASSY, WINCH CHAIN
38351BASE, WINCH
38352ABOLT (FOR WINCH BASE SUPPORT)
38360BRACKET ASSY, WINCH ROLLER
38380HOLDER ASSY, WINCH HOOK
5152
3811860040COVER, WINCH DRUM HOUSING
main38118-60040
3814360010LOCK, WIRE
main38143-60010
3815360040PLATE, WIRE LOCK
main38153-60040
9011908754
main90119-08754
9011910495
main90119-10495
9011910496
main90119-10496
9015940179
main90159-40179
9017008028
main90170-08028
9024005004
main90240-05004
9031128004
main90311-28004
9036006004
main90360-06004
9046812018
main90468-12018
9161160820
main91611-60820
91651B0818
main91651-B0818
91656G1025
main91656-G1025
9338118014
main93381-18014
9411040800
main94110-40800
9451200800
main94512-00800
9461210800
main94612-10800
9616000400
main96160-00400
9616000600
main96160-00600
64 parts on this diagram · 1 diagram in section
