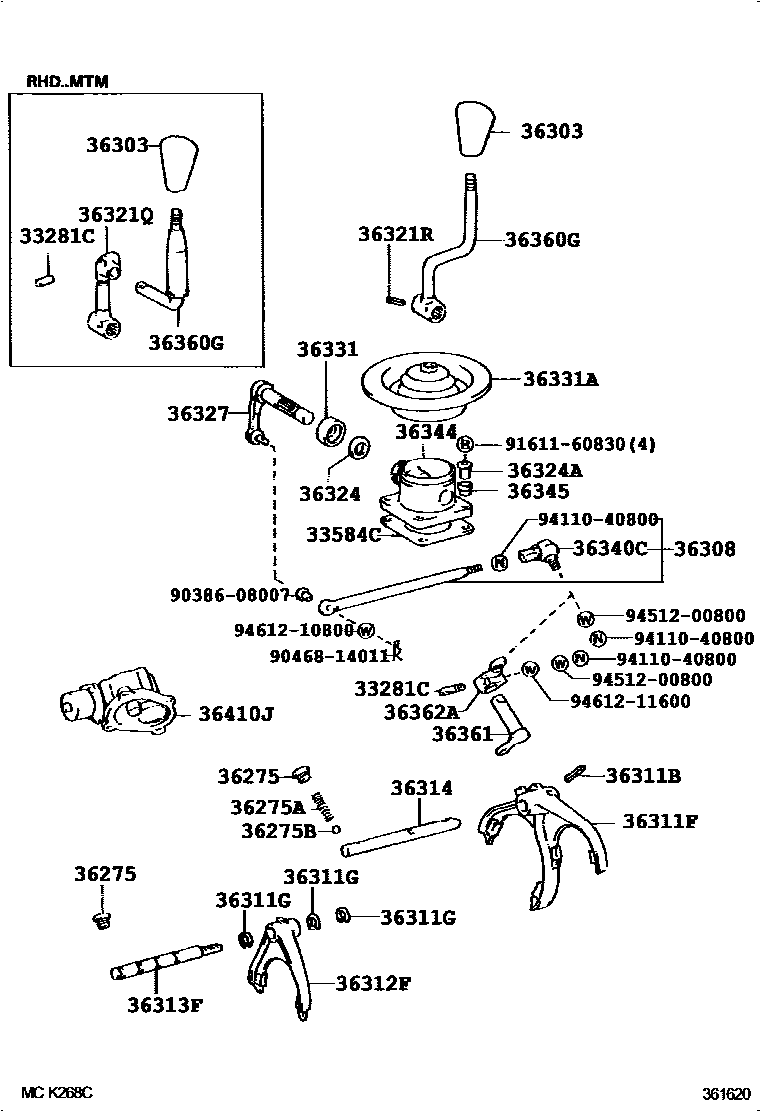

TRANSFER LEVER & SHIFT ROD
33281CPIN, LEVER LOCK
33584CGASKET,TRANSFER CONTROL SHIFT LEVER RETAINER
36275PLUG, SHIFT DETENT BALL SPRING
36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)
L=27.1
L=23.8
36275BBALL, SHIFT DETENT
OD=9.52,STEEL
36303KNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM1#,4#
BLACK,TRIM1#,4#
BLACK,TRIM1#,4#
36308ROD SUB-ASSY, HIGH & LOW SHIFT
36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
L=25.5
36311FFORK, TRANSFER GEAR SHIFT, NO.1
sub36311-60120
36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
36312FFORK, TRANSFER GEAR SHIFT, NO.2
36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK
36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK
36321QLEVER, TRANSFER SHIFT
36321RPIN, SLOTTED SPRING (FOR TRANSFER SHIFT LEVER)
36324BUSH, TRANSFER SHIFT LEVER
36324ABUSH, TRANSFER SHIFT LEVER
36327SHAFT, TRANSFER SHIFT LEVER
36331BOOT, TRANSFER SHIFT LEVER
36331ABOOT, TRANSFER SHIFT LEVER, NO.2
36340CEND ASSY, HIGH & LOW CONNECTING ROD
36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER
36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT
36361LEVER, TRANSFER SHIFT, INNER
36362ALEVER, TRANSFER SHIFT, OUTER
9038608007
main90386-08007
9046814011
main90468-14011
9161160830
main91611-60830
9411040800
main94110-40800
9451200800
main94512-00800
9461210800
main94612-10800
9461211600
main94612-11600
34 parts on this diagram · 1 diagram in section
