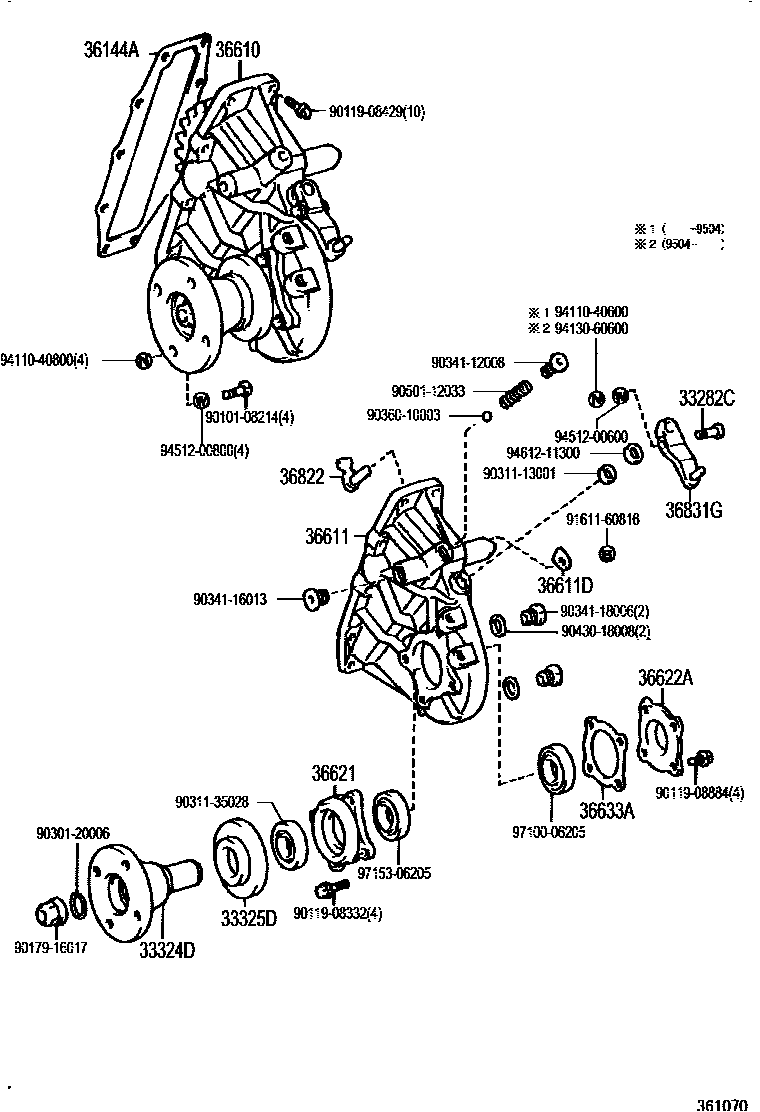

POWER TAKE-OFF CASE & GEAR

0001 1 0002 1

33282CPIN, POWER TAKE-OFF SHIFT LEVER LOCK

main33282-35010iFJ80,HDJ80,HZJ80199001-199801

33324DFLANGE, OUTPUT SHAFT COMPANION

main33324-60090iFJ80,HDJ80,HZJ80199001-199801

33325DDEFLECTOR, DUST (FOR POWER TAKE-OFF)

main33325-60080iFJ80,HDJ80,HZJ80199001-199801

36144AGASKET, TRANSFER POWER TAKE-OFF COVER, NO.2

main36144-60030iFJ80,HDJ80,HZJ80199001-199208

36610POWER TAKE-OFF ASSY

main36610-60090iFJ80,HDJ80,HZJ80199001-199801

36611CASE, POWER TAKE-OFF

main36611-60050iFJ80,HDJ80,HZJ80199001-199801

36611DPLATE, LOCK (FOR POWER TAKE-OFF CASE)

main36726-60010iFJ80,HDJ80,HZJ80199001-199801

36621RETAINER, POWER TAKE-OFF BEARING

main36621-60020iFJ80,HDJ80,HZJ80199001-199801

36622ACOVER, POWER TAKE-OFF

main36622-60010iFJ80,HDJ80,HZJ80199001-199801

36633AGASKET, POWER TAKE-OFF COVER

main36633-60010iFJ80,HDJ80,HZJ80199001-199801

36822SHAFT, POWER TAKE-OFF SHIFT LEVER

main36822-60020iFJ80,HDJ80,HZJ80199001-199801

36831GLEVER, POWER TAKE-OFF SHIFT, NO.1

main36831-60130iFJ80,HDJ80,HZJ80199001-199801

9010108214

main90101-08214

9011908332

main90119-08332

9011908429

main90119-08429

9011908884

main90119-08884

9017916017

main90179-16017

9030120006

main90301-20006

9031113001

main90311-13001

9031135028

main90311-35028

9034112008

main90341-12008

9034116013

main90341-16013

9034118006

main90341-18006

9036010003

main90360-10003

9043018008

main90430-18008

9050112033

main90501-12033

9161160816

main91611-60816

9411040600

main94110-40600

9411040800

main94110-40800

9413060600

main94130-60600

9451200600

main94512-00600

9451200800

main94512-00800

9461211300

main94612-11300

9710006205

main97100-06205

9715306205

main97153-06205

35 parts on this diagram · 2 diagrams in section
