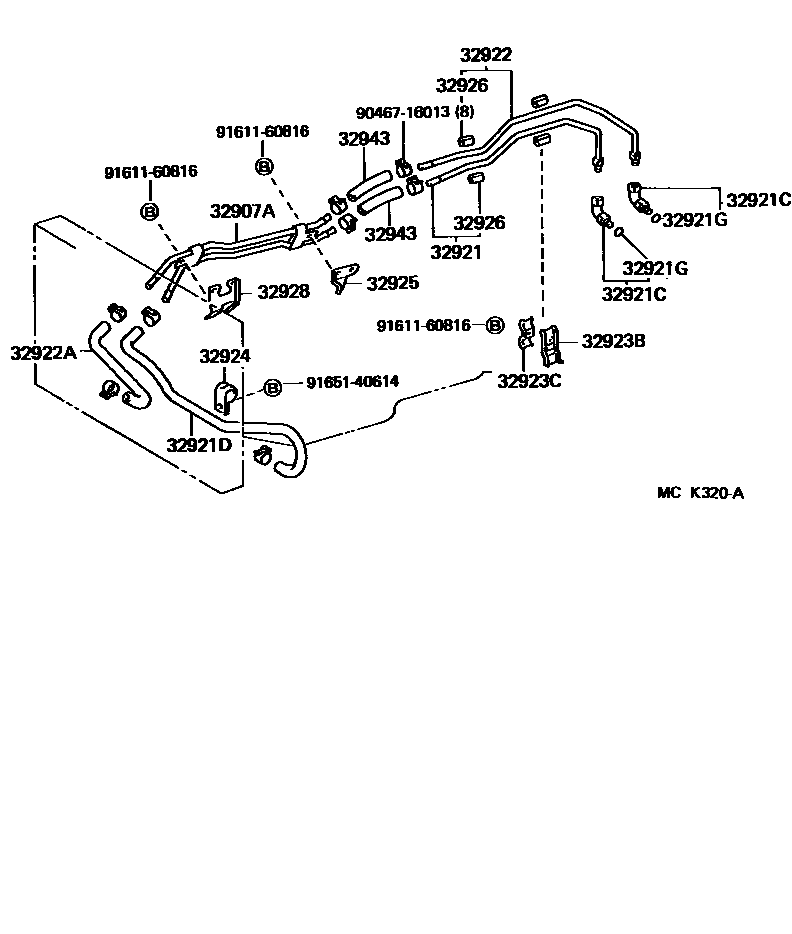

OIL COOLER & TUBE (ATM)

0001 1 0002 1AIR COOLED TYPE OIL COOLER 0003 1 0004 1AIR COOLED TYPE OIL COOLER

32907ATUBE, OIL COOLER

main32907-60030iFJ80199001-199208

32921TUBE, OIL COOLER INLET, NO.1

main32921-60050iFJ80199001-199208

main32921-60060iHDJ80,HZJ80..ATM199001-199208

main32921-60130iFZJ80..ATM199208-199801

main32921-60140iHDJ80..ATM199208-199610

32921CUNION(FOR OIL COOLER TUBE)

main90407-20004iFJ80,FZJ80,HDJ80,HZJ80..ATM199001-199801

OUTLET

main90407-20005iFJ80,HDJ80,HZJ80..ATM199001-199208

INLET

main90407-20006iFZJ80,HDJ80..ATM199208-199801

INLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-60070iHDJ80,HZJ80..ATM199001-199610

main32941-60110iFZJ80..ATM199208-199801

main32942-60070iFJ80199001-199208

main32942-60080iFJ80199001-199208

W(AIR COOLED TYPE OIL COOLER)

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iFJ80,FZJ80,HDJ80,HZJ80..ATM199001-199801

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-60050iFJ80199001-199208

main32922-60060iHDJ80,HZJ80..ATM199001-199004

main32922-60061iHDJ80,HZJ80..ATM199004-199610

main32922-60070iFZJ80..ATM199208-199801

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-35011iFJ80199001-199208

main32942-60090iHDJ80,HZJ80..ATM199001-199004

main32942-60091iHDJ80,HZJ80..ATM199004-199610

main32942-60100iHDJ80..ATM199001-199004

W(AIR COOLED TYPE OIL COOLER)

main32942-60130iHZJ80..ATM199004-199108

W(AIR COOLED TYPE OIL COOLER)

main32942-60131iHDJ80..ATM199310-199311

W(AIR COOLED TYPE OIL COOLER)

main32942-60230iFZJ80199208-199310

W(AIR COOLED TYPE OIL COOLER)

main32942-60231iFZJ80..ATM199310-199801

W(AIR COOLED TYPE OIL COOLER)

main32942-60260iFZJ80199208-199307

main32942-60261iFZJ80..ATM199307-199605

main32942-60262iFZJ80..ATM199605-199801

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-60050iFZJ80,HDJ80,HZJ80..ATM199001-199610

main32923-60060iFJ80199001-199208

sub32923-25010

32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4

main90462-12076iFJ80199001-199208

32924CLAMP, OIL COOLER TUBE, NO.2

main32909-60010iHDJ80,HZJ80..ATM199001-199610

main32909-60020iFZJ80..ATM199208-199801

main90461-08594iFJ80199001-199208

32925CLAMP, OIL COOLER TUBE, NO.3

main32909-60030iFZJ80..ATM199208-199801

main32925-60060iFJ80199001-199208

main32925-60070iHDJ80,HZJ80..ATM199001-199610

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-60010×8iFZJ80,HDJ80,HZJ80..ATM199001-199610

L=45,ID=12

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-60040iFJ80199001-199208

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-60090×2iFJ80199001-199208

9046716013

main90467-16013

9161160816

main91611-60816

9165140614

main91651-40614

17 parts on this diagram · 4 diagrams in section
