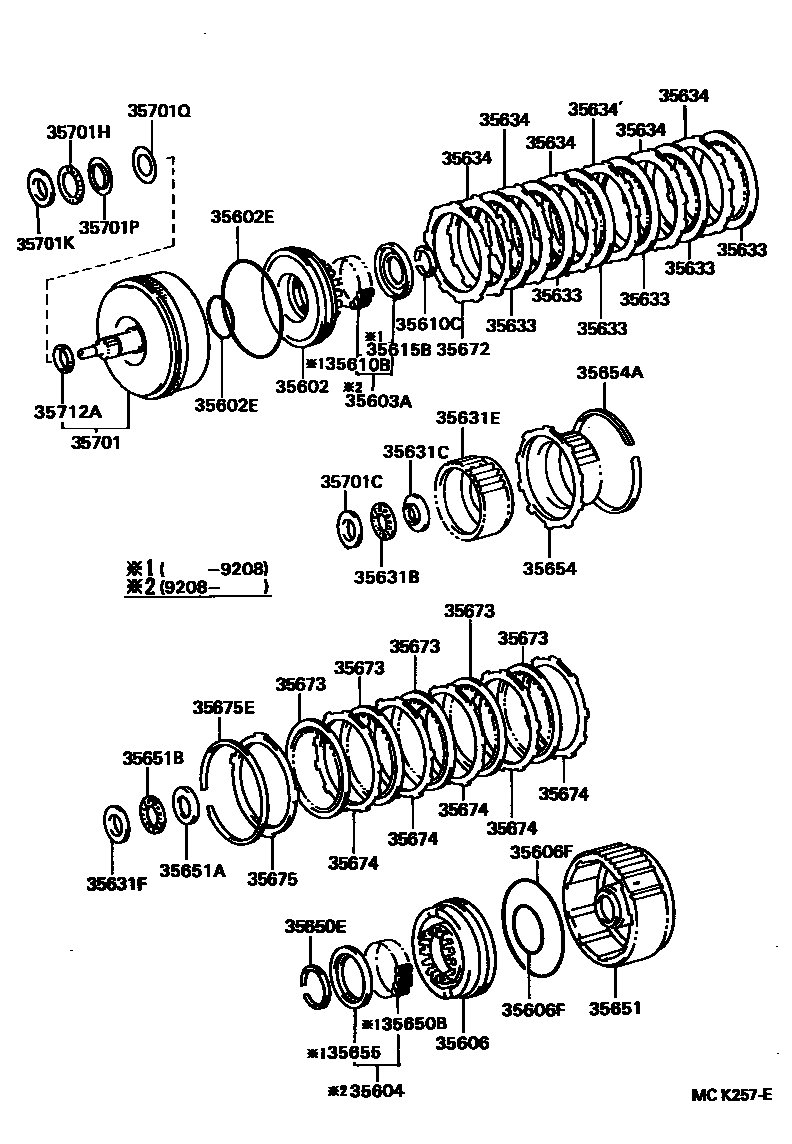

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35602PISTON SUB-ASSY, FRONT CLUTCH
35602ERING, O (FOR FRONT CLUTCH PISTON)
INNER
OUTER
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35606PISTON SUB-ASSY, REAR CLUTCH
35606FRING, O (FOR REAR CLUTCH PISTON)
INNER
OUTER
35610BSPRING, COMPRESSION (FOR FRONT CLUTCH PISTON RETURN)
35610CRING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING)
35615BSEAT, FRONT CLUTCH PISTON RETURN SPRING
35631BBEARING, THRUST(FOR FRONT CLUTCH HUB)
35631CRACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT)
35631EHUB, FRONT CLUTCH
35631FRACE, THRUST BEARING(FOR REAR CLUTCH DRUM)
35634PLATE, FRONT CLUTCH
T=1.75-1.85
T=2.35-2.45
T=1.95-2.05
T=2.15-2.25
35650BSPRING, COMPRESSION (FOR REAR CLUTCH PISTON RETURN)
35650ERING, O (FOR REAR CLUTCH PISTON OUTER)
35651DRUM, REAR CLUTCH
35651ARACE, THRUST BEARING (FOR REAR CLUTCH DRUM)
35651BBEARING, THRUST NEEDLE ROLLER (FOR REAR CLUTCH DRUM)
35654ARING, HOLE SNAP (FOR REAR CLUTCH HUB)
35655SEAT, REAR CLUTCH PISTON RETURN SPRING
35672PLATE, CLUTCH CUSHION
35675FLANGE, REAR CLUTCH
T=5.0
T=5.2
T=5.4
T=5.6
T=4.6
T=4.8
35675ERING, HOLE SNAP (FOR REAR CLUTCH FLANGE)
35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)
35701HBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)
35701KRACE, THRUST BEARING (FOR INPUT SHAFT)
35701PRACE, THRUST BEARING (FOR INPUT SHAFT)
35701QRACE, THRUST BEARING (FOR INPUT SHAFT FRONT)
T=0.9
T=1.2
T=1.5
T=1.8
T=2.1
35712ARING, INPUT SHAFT OIL SEAL
35 parts on this diagram · 1 diagram in section
