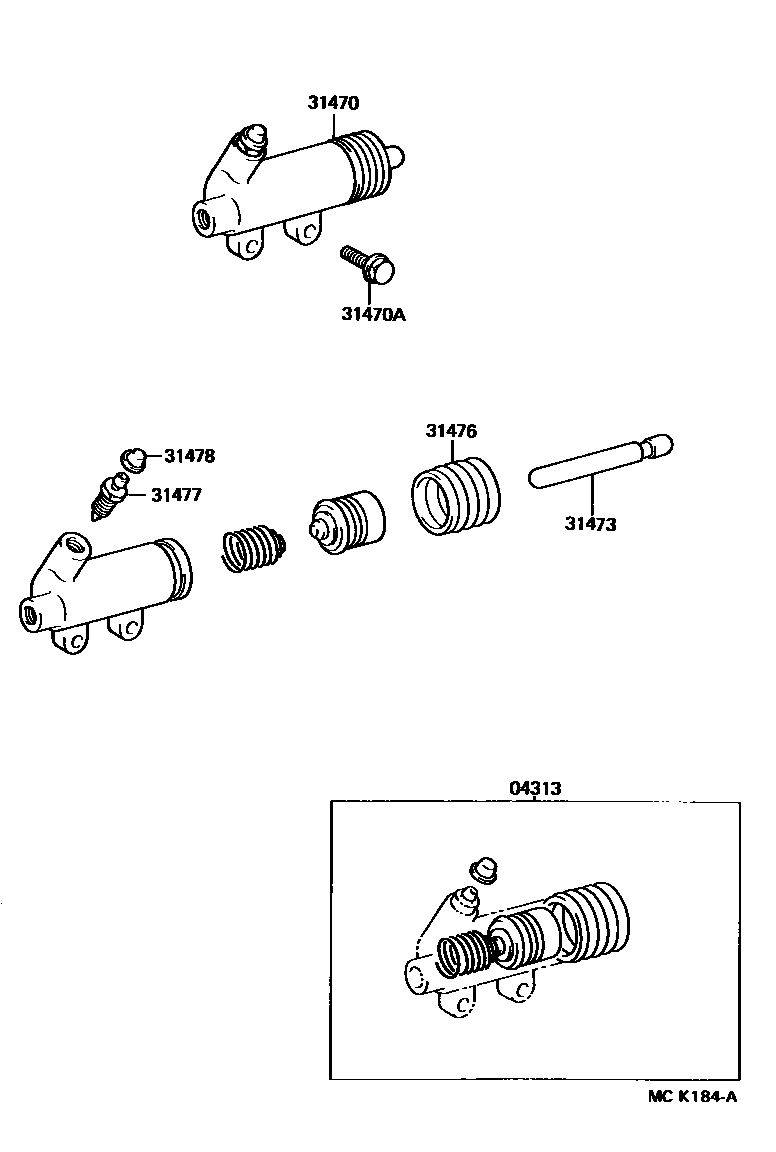

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-60081iHDJ80,HZJ80..MTM199001-199501

main04313-60110iHDJ80,HZJ80..MTM199201-199801

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-60160iHDJ80,HZJ80..MTM199001-199004

sub31470-60161

main31470-60161iHDJ80,HZJ80..MTM199004-199201

main31470-60180iFZJ80..MTM199501-199801

main31470-60190iHDJ80,HZJ80..MTM199201-199501

main31470-60230iFZJ80..MTM199608-199801

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825iHDJ80,HZJ80..MTM199001-199208

*8-1.25PX25-25

sub91611-B0825

main91611-B0825iFZJ80,HDJ80,HZJ80..MTM199208-199801

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-60130iHDJ80,HZJ80..MTM199001-199801

main31473-60150iFZJ80..MTM199608-199801

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-36010iHDJ80,HZJ80..MTM199001-199801

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iHDJ80,HZJ80..MTM199001-199801

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iHDJ80,HZJ80..MTM199001-199801

7 parts on this diagram · 2 diagrams in section
