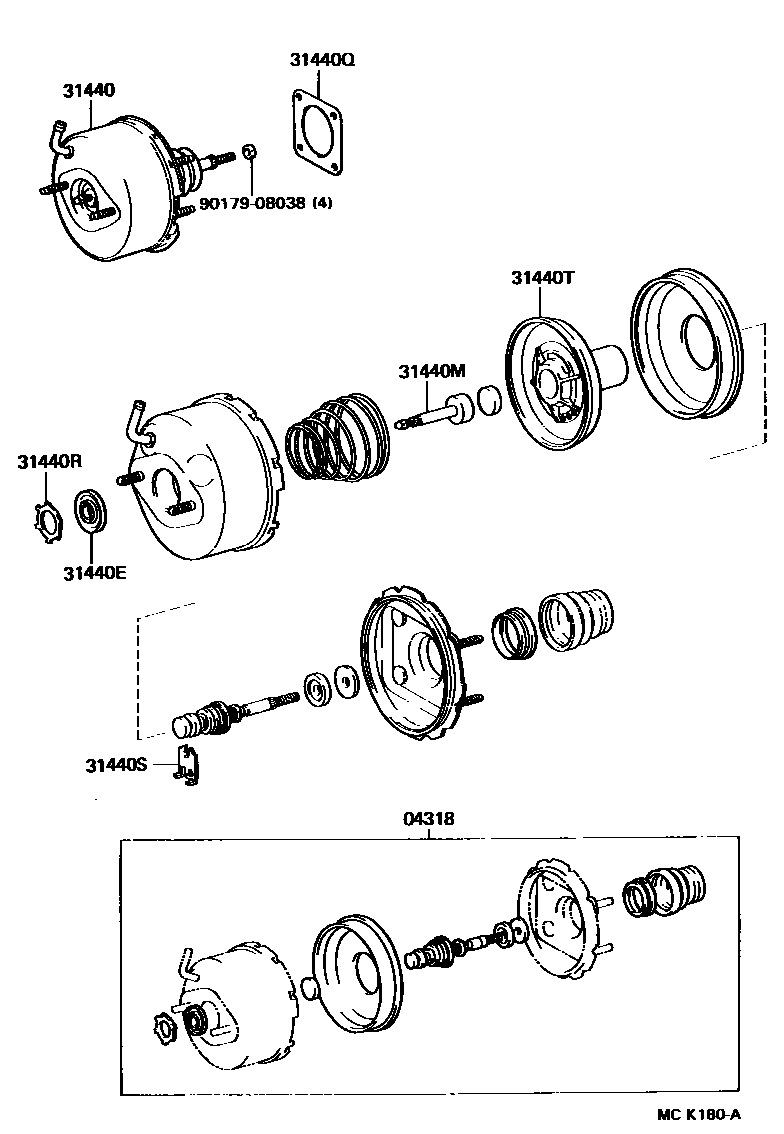

CLUTCH BOOSTER

04318BOOSTER KIT, CLUTCH

main04318-60050i199001-199501

31440BOOSTER ASSY, CLUTCH W/AIR CLEANER

main31440-60090i199001-199501

main31440-60130i199001-199407

31440ESEAL, BOOSTER BODY NO.1(FOR CLUTCH BOOSTER)

main44621-28120i199001-199407

31440MROD SUB-ASSY, CLUTCH BOOSTER PISTON

main44606-12520i199001-199407

31440QGASKET, BRAKE BOOSTER BRACKET

main44785-14010i199001-199501

31440RRING, CIRCULAR INTERN(FOR CLUTCH BOOSTER AIR VALVE)

main44628-28120i199001-199407

31440SKEY, VALVE STOPPER(FOR CLUTCH BOOSTER)

main44635-36010i199001-199407

31440TPISTON, BOOSTER(FOR CLUTCH BOOSTER)

main44642-87502i199001-199407

9017908038

9 parts on this diagram · 3 diagrams in section
