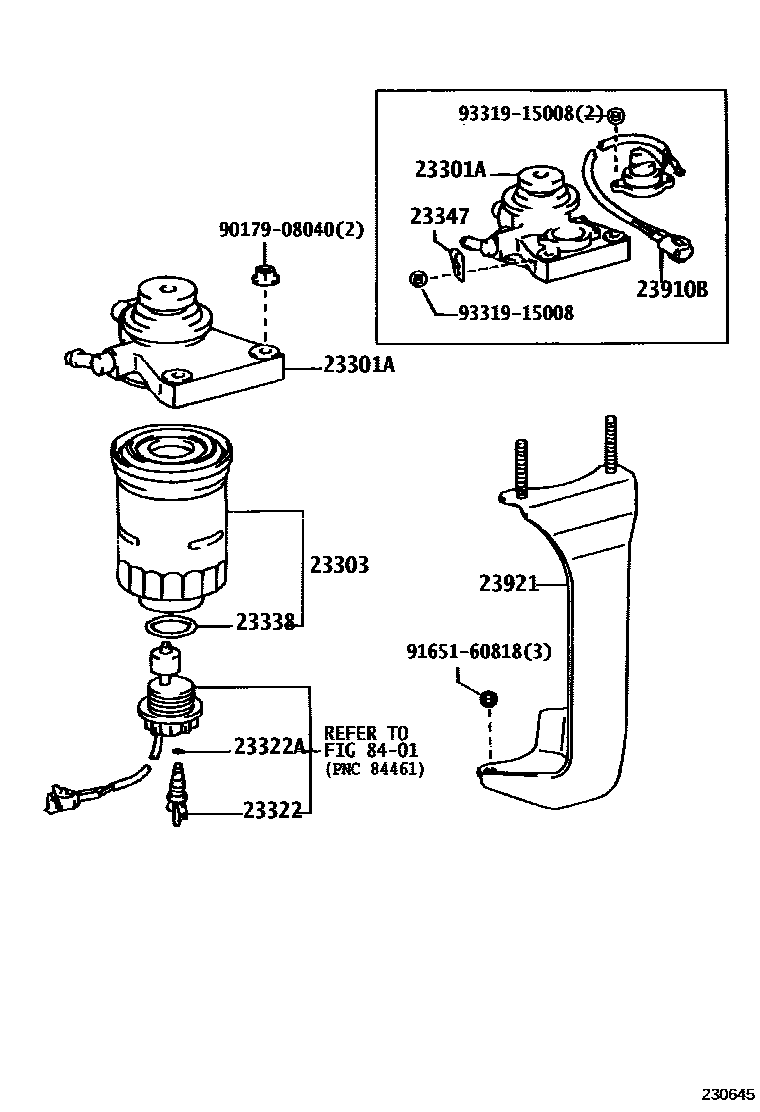

FUEL FILTER

0001 1 0002 1

23301ACAP ASSY, FUEL FILTER

main23301-17010i1HZ..HZJ80199001-199208

main23301-17020i1HZ..HZJ80199001-199208

W(FUEL HEATER)

main23301-17030i1HDT..HDJ80199001-199208

main23301-17040i1HDT..HDJ80199001-199208

W(FUEL HEATER)

main23301-17150i1HZ..HZJ80199208-199501

main23301-17160i1HZ..HZJ80199208-199303

W(FUEL HEATER)

sub23301-17161

main23301-17161i1HZ..HZJ80199501-199503

main23301-17161i1HZ..HZJ80199303-199501

W(FUEL HEATER)

main23301-17170i1HDT..HDJ80199208-199501

main23301-17180i1HDT..HDJ80199208-199303

W(FUEL HEATER)

sub23301-17181

main23301-17181i1HDT..HDJ80199303-199501

W(FUEL HEATER)

main23380-17190i1HZ..HZJ80199503-199801

main23380-17261i1HDFT..HDJ80199501-199801

main23380-17271i1HDFT..HDJ80199501-199801

W(FUEL HEATER)

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i1HD#,1HZ..HDJ80,HZJ80199001-199801

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i1HD#,1HZ..HDJ80,HZJ80199001-199801

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1HD#,1HZ..HDJ80,HZJ80199001-199801

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1HD#,1HZ..HDJ80,HZJ80199001-199801

23347CLIP, CORD

main23347-54010i1H#..HDJ80,HZJ80199001-199208

main23347-54010i1H#..HDJ80,HZJ80199208-199801

W(FUEL HEATER)

23910BHEATER ASSY, FUEL

main23910-17020i1H#..HDJ80,HZJ80199001-199208

main23910-17040i1H#..HDJ80,HZJ80199208-199302

W(FUEL HEATER)

main23910-17040i1HD#,1HZ..HDJ80,HZJ80199302-199801

23921SUPPORT, FUEL FILTER

main23904-17010i1H#..HDJ80,HZJ80199001-199205

sub23904-17011

main23904-17011i1HD#,1HZ..HDJ80,HZJ80199205-199801

8401

9017908040

main90179-08040

9165160818

main91651-60818

9331915008

main93319-15008

12 parts on this diagram · 2 diagrams in section
