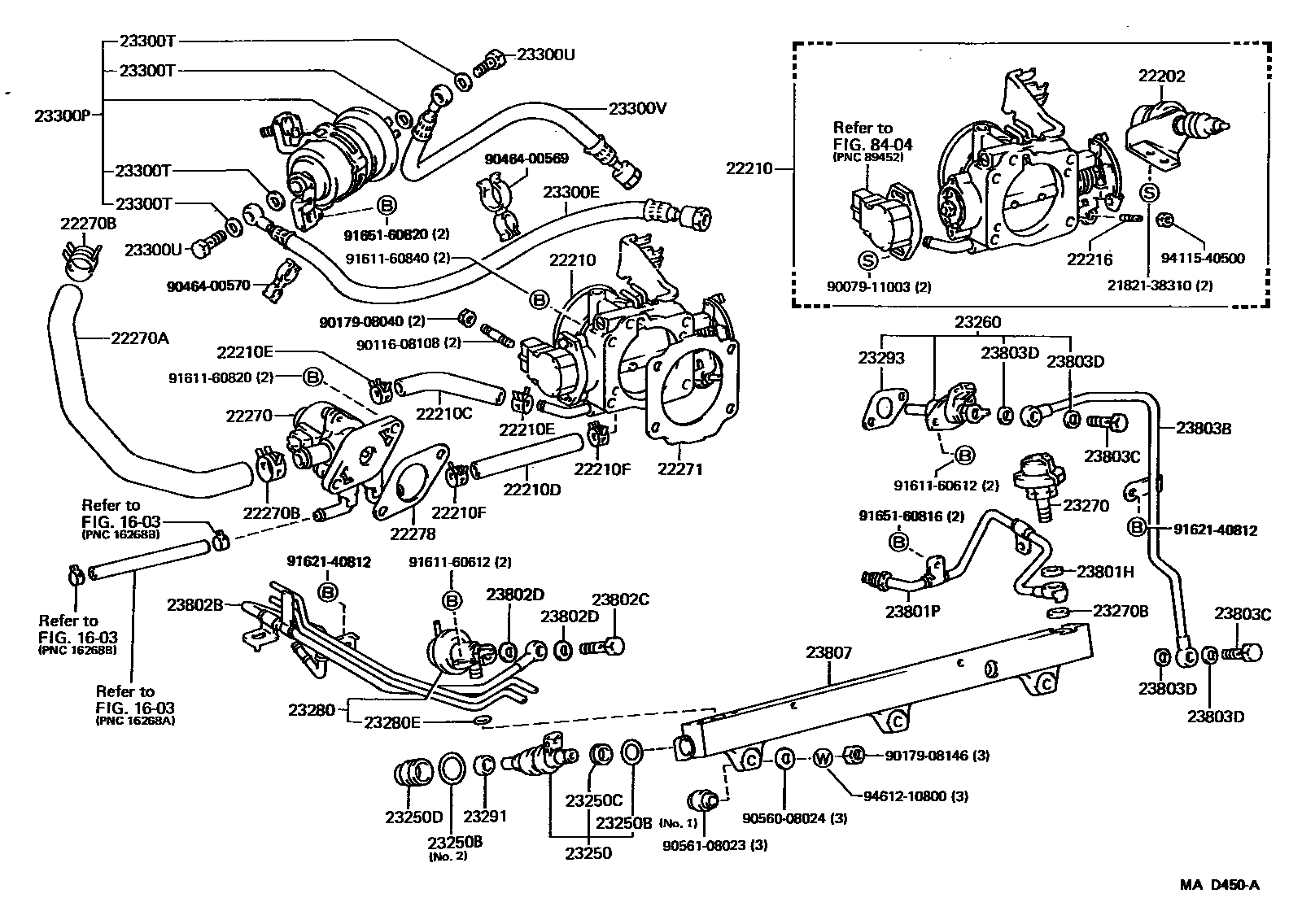

FUEL INJECTION SYSTEM
1603
22210BODY ASSY, THROTTLE
22210CHOSE, WATER BY-PASS, NO.1
22210DHOSE, WATER BY-PASS, NO.2
22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
sub96135-51300
22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
sub96135-51300
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270AHOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)
22270BCLIP(FOR AIR HOSE)
sub90467-21010
22271GASKET, THROTTLE BODY
22278GASKET, IDLE SPEED CONTROL VALVE
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
NO.1
NO.2
23250CGROMMET(FOR FUEL INJECTOR)
23250DSPACER(FOR FUEL INJECTOR)
23260INJECTOR ASSY, COLD START FUEL
23270DAMPER ASSY, FUEL PRESSURE PULSATION
sub23207-46010
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23293GASKET, COLD START INJECTOR
23300EHOSE, FUEL
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23300VHOSE, FUEL(FOR FUEL INLET)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23802DGASKET(FOR FUEL PIPE NO.2)
23803BPIPE SUB-ASSY, FUEL, NO.3
23803CGASKET(NOZZLE LEKAGE PIPE NO.3)
23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23807PIPE SUB-ASSY, FUEL DELIVERY
8404
2182138310SCREW, 2ND THROTTLE VALVE SET
main21821-38310
9007911003
main90079-11003
9011608108
main90116-08108
9017908040
main90179-08040
9017908146
main90179-08146
9046400569
main90464-00569
9046400570
main90464-00570
9056008024
main90560-08024
9056108023
main90561-08023
9161160612
main91611-60612
9161160820
main91611-60820
9161160840
main91611-60840
9162140812
main91621-40812
9165160816
main91651-60816
9165160820
main91651-60820
9411540500
main94115-40500
9461210800
main94612-10800
56 parts on this diagram · 4 diagrams in section
