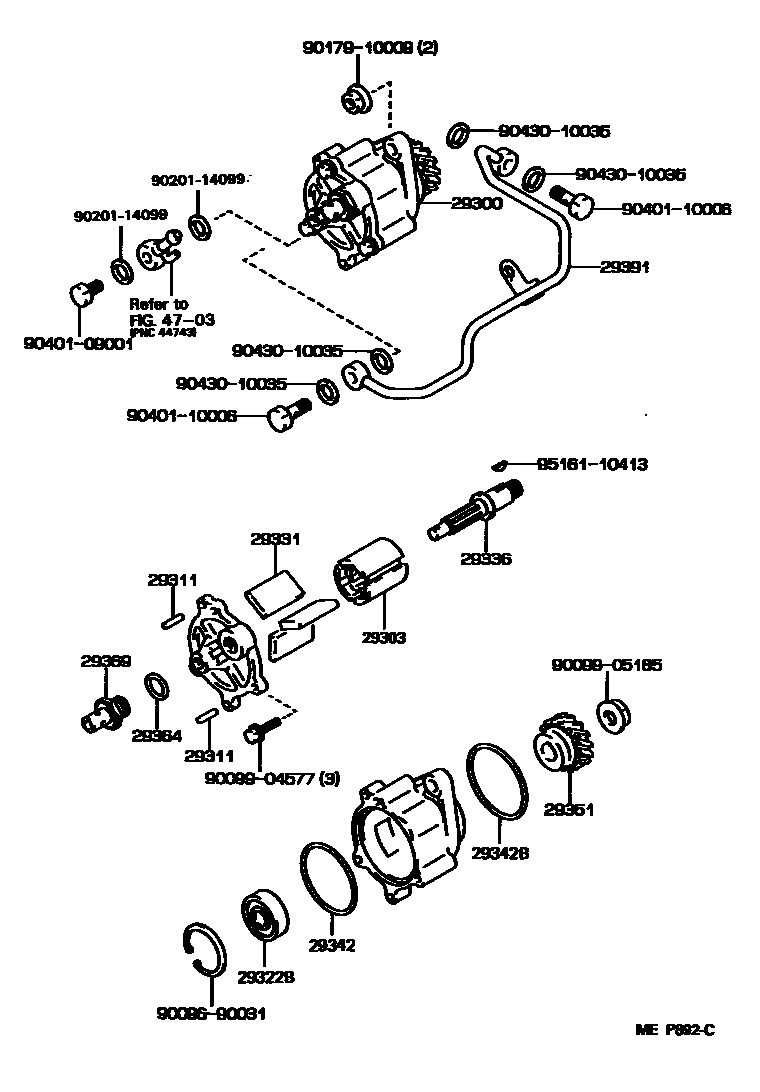

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-17010i1H#..HDJ80,HZJ80199001-199801

29303ROTOR SUB-ASSY, VACUUM PUMP

main29303-67020i1H#..HDJ80,HZJ80199508-199801

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i1H#..HDJ80,HZJ80199001-199801

29322BBEARING, VACUUM PUMP

main90099-10185i1H#..HDJ80,HZJ80199001-199801

29331BLADE, VACUUM PUMP, A

main29331-58050i1H#..HDJ80,HZJ80199001-199405

main29331-67020i1HD#,1HZ..HDJ80,HZJ80199405-199801

29336SHAFT, VACUUM PUMP

main29336-58050i1H#..HDJ80,HZJ80199001-199801

29342PACKING, VACUUM PUMP

main29342-58010i1H#..HDJ80,HZJ80199001-199801

29342BRING, O

main29342-17010i1H#..HDJ80,HZJ80199001-199801

29351GEAR, VACUUM PUMP

main29351-17010i1H#..HDJ80,HZJ80199001-199801

29364WASHER, VACUUM PUMP

main29364-66010i1H#..HDJ80,HZJ80199001-199801

29369VALVE SUB-ASSY, CHECK

main29369-64030i1H#..HDJ80,HZJ80199001-199801

29391TUBE, VACUUM PUMP

main29391-17010i1H#..HDJ80,HZJ80199001-199801

4703

9009690031

main90096-90031

9009904577

main90099-04577

9009905185

main90099-05185

9017910009

main90179-10009

9020114099

main90201-14099

9040109001

main90401-09001

9040110006

main90401-10006

9043010035

main90430-10035

9516110413

main95161-10413

22 parts on this diagram · 1 diagram in section
