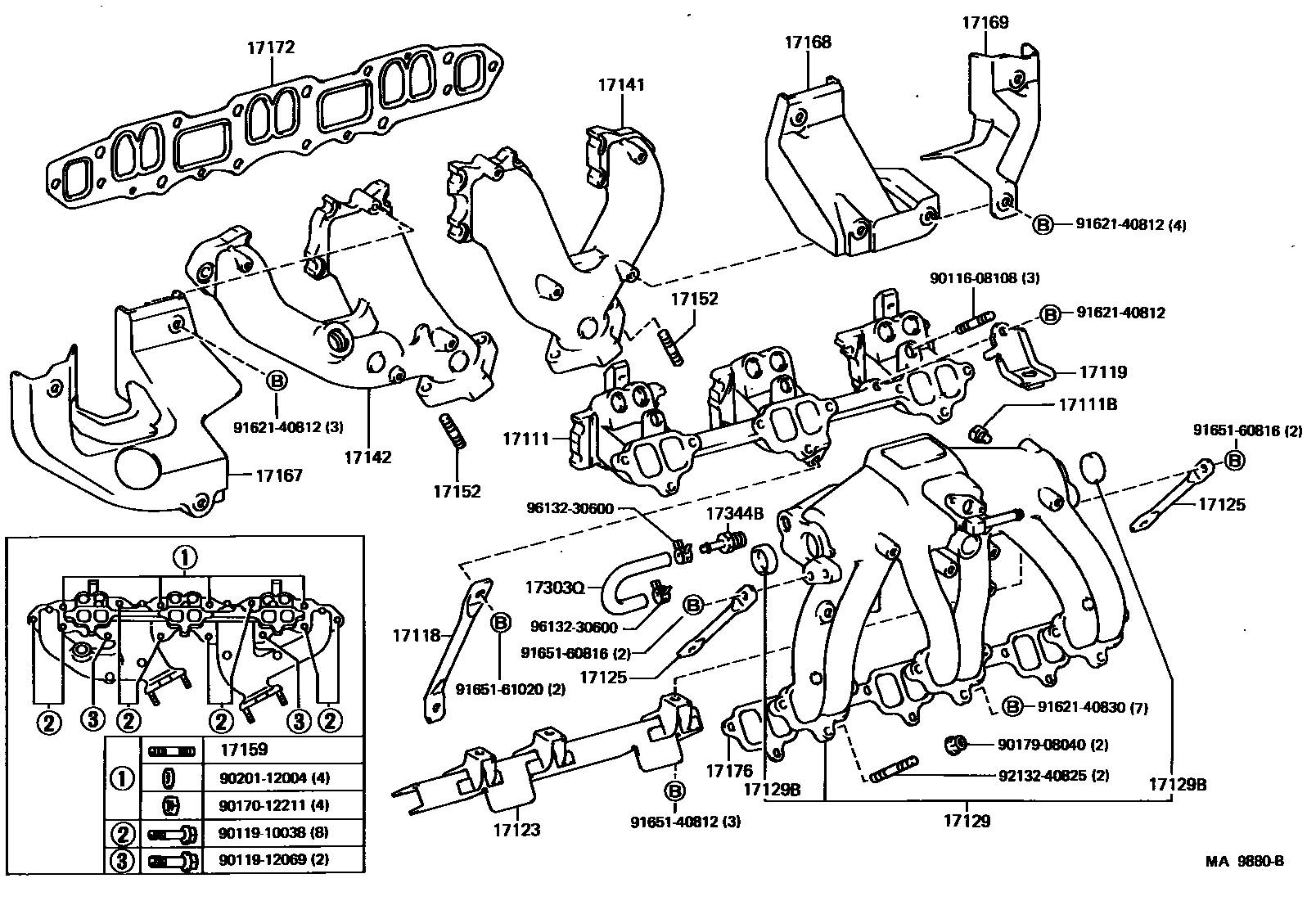

MANIFOLD
17111BPLUG, NO.2
17118STAY, MANIFOLD
17119STAY, MANIFOLD, NO.2
17123COVER, SURGE TANK
17125STAY, SURGE TANK, NO.1
17129TANK, INTAKE AIR SURGE
17129BPLUG
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
EXHAUST MANIFOLD
INTAKE MANIFOLD
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17169INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17172GASKET, MANIFOLD TO CYLINDER HEAD
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17303QHOSE(FOR PIPE TO UNION)
sub95337-06020
17344BUNION(FOR AIR HOSE)
9011608108
main90116-08108
9011910038
main90119-10038
9011912069
main90119-12069
9017012211
main90170-12211
9017908040
main90179-08040
9020112004
main90201-12004
9162140812
main91621-40812
9162140830
main91621-40830
9165140812
main91651-40812
9165160816
main91651-60816
9165161020
main91651-61020
9213240825
main92132-40825
9613230600
main96132-30600
32 parts on this diagram · 7 diagrams in section
