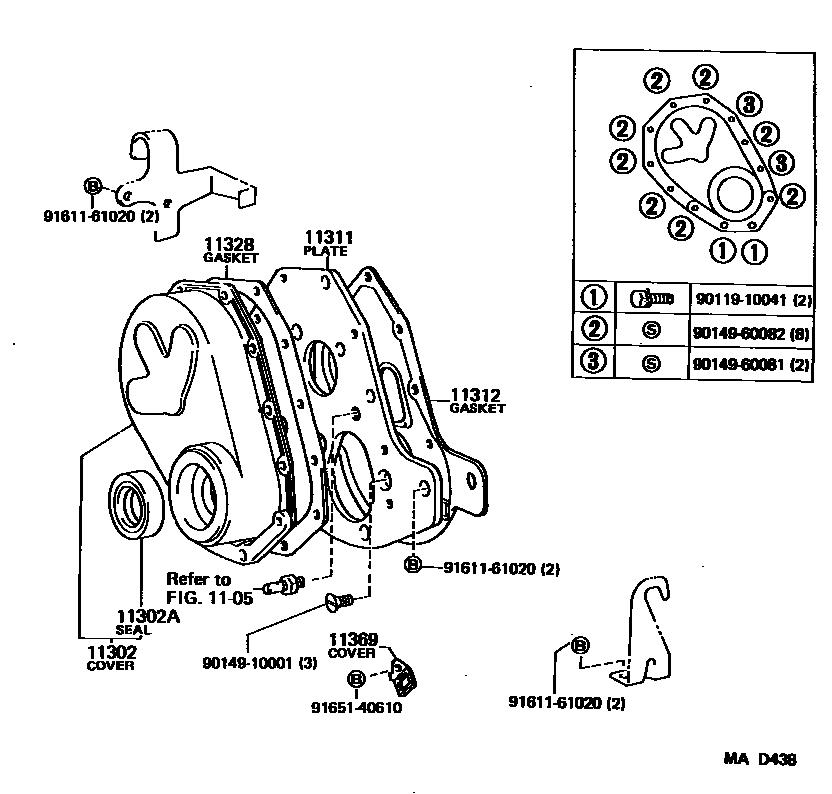

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

1105

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-61031i3FE..FJ80199001-199208

main11310-66020i1FZFE..FZJ80199208-199801

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-45008i3FE..FJ80199001-199208

main90311-52022i1FZFE..FZJ80199208-199801

main90311-58006i1HD#,1HZ..HDJ80,HZJ80199001-199801

NO.1

main90311-58007i1HD#,1HZ..HDJ80,HZJ80199001-199801

NO.2

11311PLATE, FRONT END

main11311-61020i3FE..FJ80199001-199208

11312GASKET, FRONT END PLATE

main11312-61021i3FE..FJ80199001-199208

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-17010i1HDT,1HZ..HDJ80,HZJ80199001-199801

main11328-17020i1HDFT..HDJ80199501-199503

sub11328-17021

main11328-17021i1HDFT..HDJ80199503-199512

sub11328-17022

main11328-17022i1HDFT..HDJ80199512-199801

main11328-61010i3FE..FJ80199001-199208

main11328-66020i1FZFE..FZJ80199208-199801

11369COVER, FLYWHEEL HOUSING FRONT

main11369-60011i3FE..FJ80199001-199208

9011910041

main90119-10041

9014910001

main90149-10001

9014960081

main90149-60081

9014960082

main90149-60082

9161161020

main91611-61020

9165140610

main91651-40610

13 parts on this diagram · 4 diagrams in section
