SHORT BLOCK ASSEMBLY

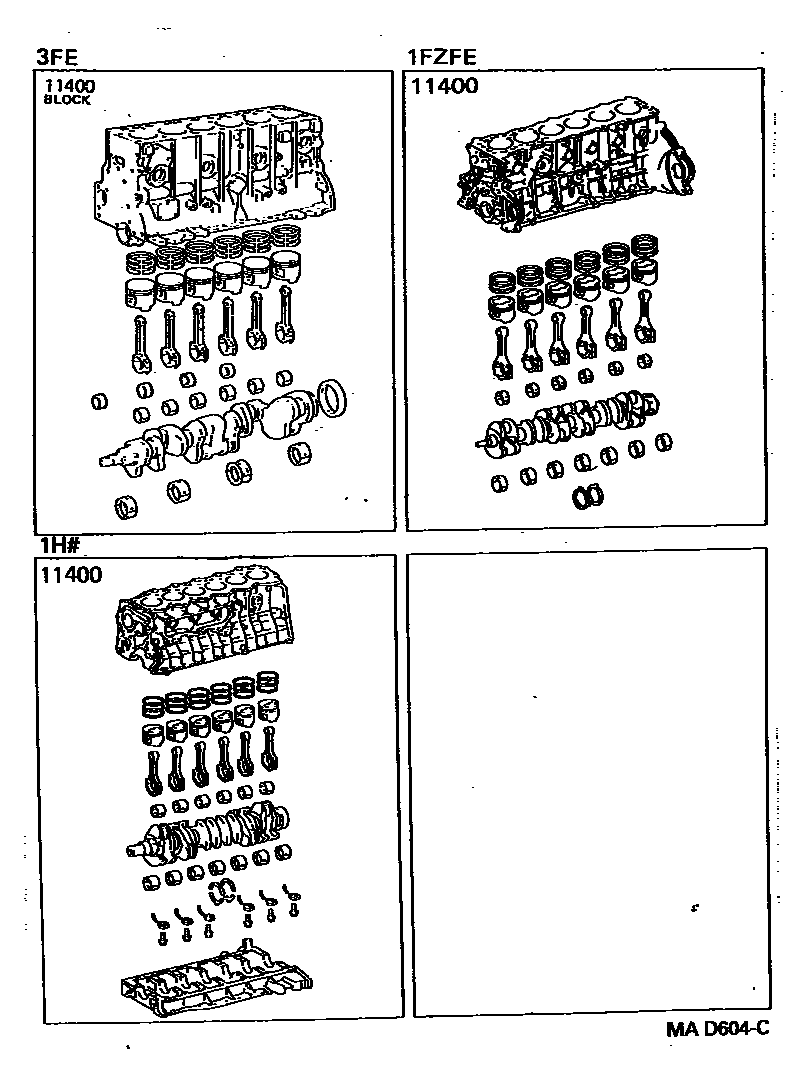

Parts diagram
11400BLOCK ASSY, SHORT
main11400-17020i199001-199411
sub11400-17021
sub91622-G1014
main11400-17021i199411-199705
sub11400-17022
sub90345-52003
main11400-17022i199705-199801
sub11400-17023
main11400-17030i199001-199208
sub11400-17031
sub11400-17080
sub91622-G1014
main11400-17050i199208-199301
sub11400-17051
sub91622-G1014
main11400-17070i199301-199411
sub11400-17071
sub91622-G1014
main11400-17071i199411-199501
sub11400-17072
sub90345-52003
main11400-17100i199501-199705
sub11400-17101
sub90345-52003
main11400-17101i199705-199801
sub11400-17102
sub15407-17020
main11400-61122i199001-199208
main11400-66040i199208-199711
sub11400-66041
sub12315-66022
sub82123-60111
sub90910-09075
main11400-66041i199711-199801

1 parts on this diagram · 1 diagram in section
