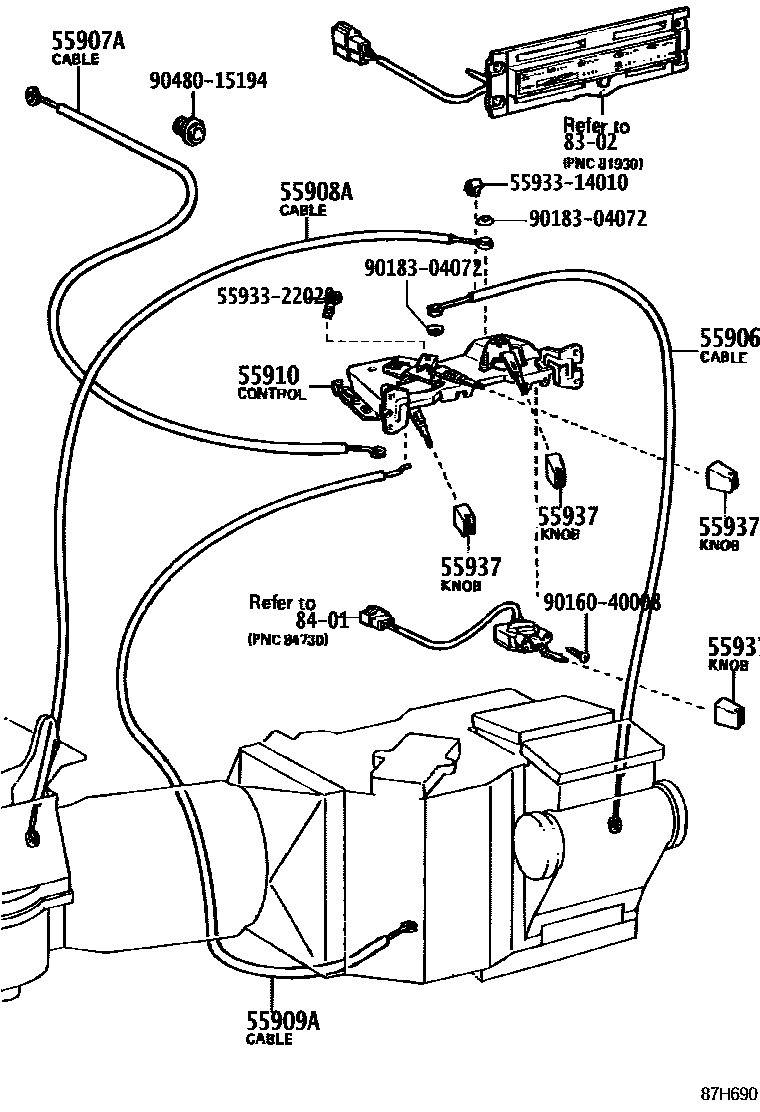

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55905-90A00iFJ62,HJ6#198708-199001

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main87286-90A00iHJ60..RHD198708-199001

main87286-90A01iFJ62,HJ6#..LHD198708-199001

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-90A00iFJ62,HJ6#198708-199001

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55907-90A00iFJ62,HJ6#198708-199001

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55901-90A00iHJ60..RHD198708-199001

main55901-90A01iFJ62,HJ6#..LHD198708-199001

55937KNOB, HEATER CONTROL LEVER

main55905-90A01iFJ62,HJ6#198708-199001

8302

8401

5593314010GUIDE, LEVER, NO.2

main55933-14010

5593322020GUIDE, LEVER, NO.2

main55933-22020

9016040008

main90160-40008

9018304072

main90183-04072

9048015194

main90480-15194

13 parts on this diagram · 2 diagrams in section
