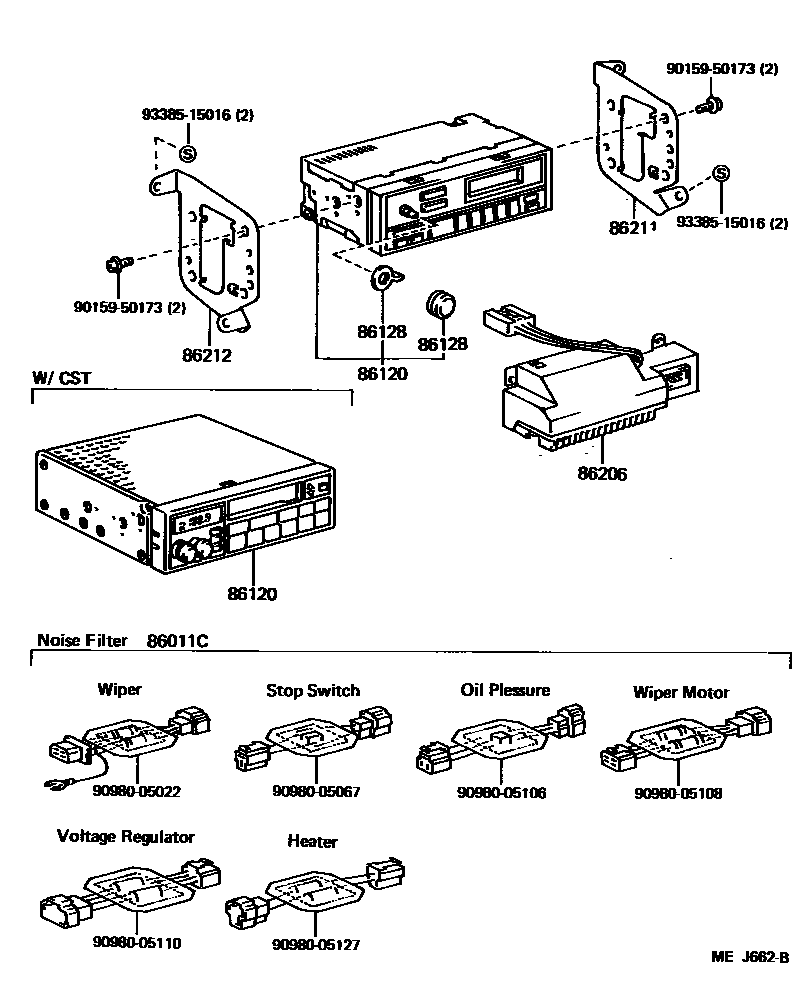

RADIO RECEIVER & AMPLIFIER & CONDENSER

86011CFILTER, NOISE

main90980-05022iFJ62,HJ6#198708-199001

WIPER

main90980-05067iFJ62,HJ6#198708-199001

STOP SWITCH

main90980-05106iFJ62,HJ6#198708-199001

OIL PRESSURE

main90980-05108iHJ6#198708-199001

WIPER MOTOR

main90980-05110iFJ62,HJ6#198708-199001

VOLTAGE REGULATOR

main90980-05110iFJ62,HJ6#198708-199001

GENERATOR REGULATOR

main90980-05127iFJ62,HJ6#198708-199001

HEATER

86120RECEIVER ASSY, RADIO

main86120-32102iFJ62,HJ6#198708-199001

MATSUSHITA,MW/LW/UKW MPX ETR CASSETTE

main86120-32111iFJ62,HJ6#198708-199001

FUJITSU TEN,MW/LW/UKW MPX ETR

main86120-32241iHJ60..RHD198708-199001

FUJITSU TEN,MW/LW/UKW ETR

86128KNOB, RADIO RECEIVER

main86128-32060iFJ62198708-199001

PWR/VOL(RADIO P/NO.86120-32241)

main86128-32060iFJ62198708-199001

PWR/VOL(RADIO P/NO.86120-32111)

main86128-32080iFJ62198708-199001

TONE(RADIO P/NO.86120-32241)

main86128-32080iFJ62198708-199001

TONE(RADIO P/NO.86120-32111)

main86128-32310iFJ62198708-199001

PWR/VOL(RADIO P/NO.86120-32102)

main86128-32330iFJ62198708-199001

BAL(RADIO P/NO.86120-32102)

main86128-32410iFJ62198708-199001

TONE(RADIO P/NO.86120-32102)

86206CONVERTER SUB-ASSY, VOLTAGE

main86206-90A05iHJ6#198708-199001

W(CASSETTE RADIO)

main86206-90K01iHJ60..RHD198708-199001

86211BRACKET, RADIO, NO.1

main86211-90A06iHJ60..RHD198708-199001

86212BRACKET, RADIO, NO.2

main86212-90A03iHJ60..RHD198708-199001

9015950173

main90159-50173

9098005022

main90980-05022

9098005067

main90980-05067

9098005106

main90980-05106

9098005108

main90980-05108

9098005110

main90980-05110

9098005127

main90980-05127

9338515016

main93385-15016

14 parts on this diagram · 1 diagram in section
