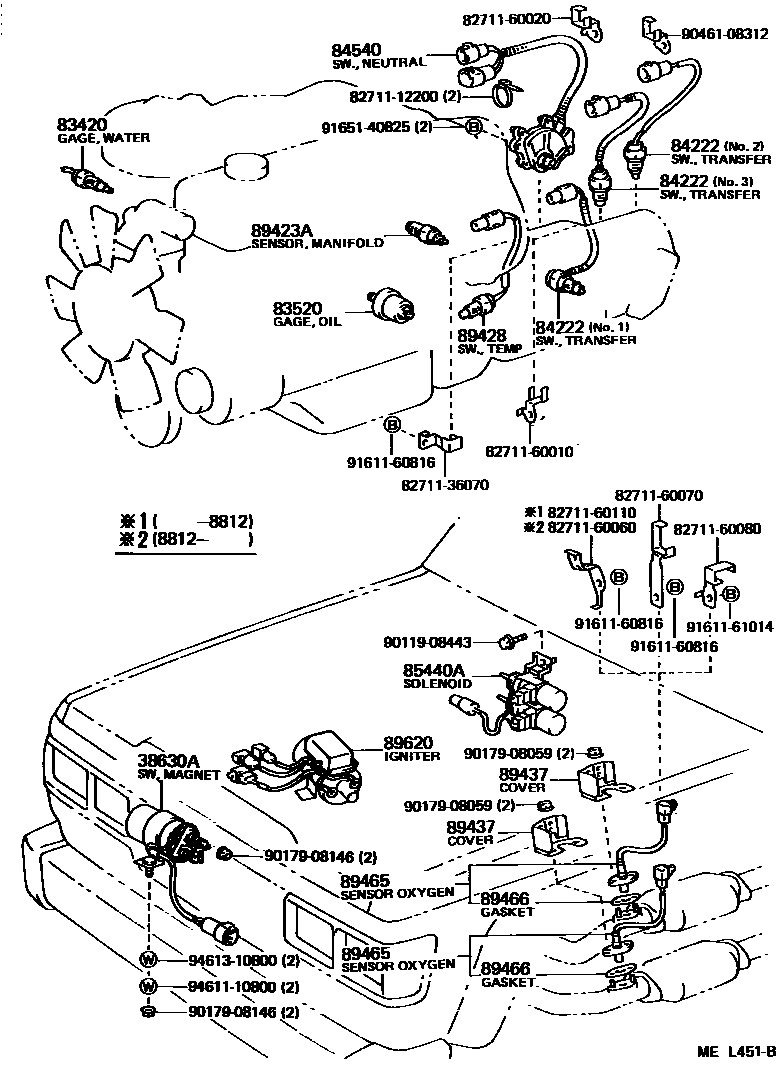

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

38630ASWITCH ASSY, MAGNET

main38630-60040iFJ62198808-199001

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iFJ62,HJ6#198708-199001

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60010iFJ62198808-199001

sub83520-60011

main83520-60020iHJ6#198708-199001

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-60021iFJ62,HJ6#198708-199001

NO.1

main84222-60030iFJ62,HJ60..ATM198708-199001

NO.2

main84222-60040iHJ6#..MTM198708-199001

NO.3

sub84222-60041

main84222-60071iFJ62198708-199001

NO.4

main84222-60071iFJ62198708-199001

W(DIFFERENTIAL LOCK),NO.4

84540SWITCH ASSY, NEUTRAL START

main84540-60020iFJ62,HJ60..ATM198708-199001

85440ASOLENOID ASSY, FOUR WHEEL DRIVE CONTROL

main85440-60120iFJ62198808-199001

main85440-60130iHJ60..ATM198708-199001

89423ASENSOR, MANIFOLD TEMPERATURE

main89423-60020iFJ62198808-199001

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-36010iFJ62,HJ60..ATM198708-199001

89437COVER, SENSOR

main89437-60010iFJ62198808-199001

OYXGEN SENSOR

main89437-90A00iFJ62,HJ6#..LHD..SRF..(GX,VX)198708-199001

AMBIENT TEMP.SENSOR

89465SENSOR, OXYGEN

main89465-69015iFJ62198808-199001

89466GASKET, OXYGEN SENSOR

main89466-20020iFJ62198810-199001

main89466-30010iFJ62198808-198810

sub89466-20020

89620IGNITER ASSY

main89620-14410iFJ62198808-199001

sub89620-22420

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271136070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36070

8271160010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60010

8271160020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60020

8271160060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60060

8271160070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60070

8271160080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60080

8271160110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60110

9011908443

main90119-08443

9017908059

main90179-08059

9017908146

main90179-08146

9046108312

main90461-08312

9161160816

main91611-60816

9161161014

main91611-61014

9165140825

main91651-40825

9461110800

main94611-10800

9461310800

main94613-10800

29 parts on this diagram · 7 diagrams in section
