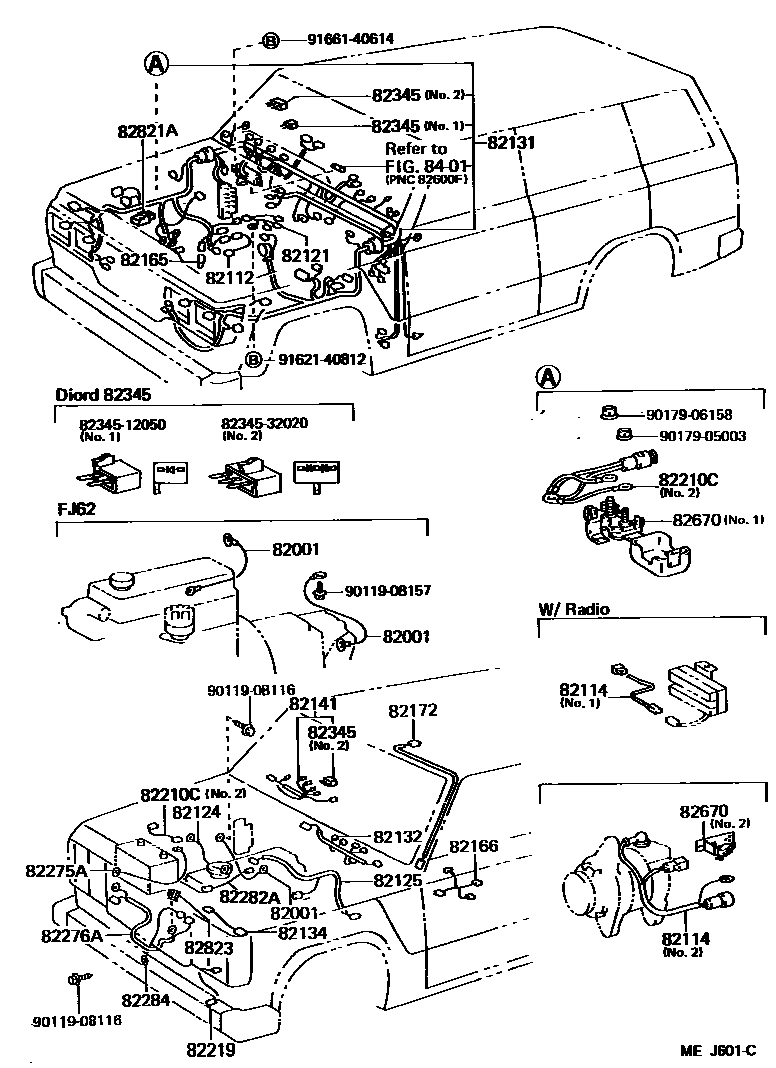

WIRING & CLAMP
82001CABLE, BOND, NO.1
FRAME-ENGINE
MISSION-BODY
ENGIN-HEATER VALVE
82112WIRE, ENGINE ROOM, NO.2
82114WIRE, ENGINE ROOM, NO.4
NO.1
W(RADIO),NO.1
NO.2
COLD SPEC,NO.2
82124WIRE, ENGINE, NO.4
82125WIRE, TRANSMISSION
82131WIRE, COWL
COLD SPEC
COLD SPEC
COLD SPEC
COLD SPEC
COLD SPEC
82132WIRE, COWL, NO.2
W(REAR WINDOW DEFOGGER) OR W(ONE TOUCH 2-4 SELECTOR)
82134WIRE, COWL, NO.4
82141WIRE, INSTRUMENT PANEL
W(CLOCK)
W(DIFFERENTIAL LOCK) OR W(CLOCK & DIFFERENTIAL LOCK)
W(DIFFERENTIAL LOCK)
82165WIRE, FRAME, NO.2
82166WIRE, CONSOLE BOX
W(FRONT BENCH SEAT)
82172WIRE, ROOF, NO.2
82210CFUSIBLE LINK
L=110,G,NO.1
L=120,GX2,Y,B,NO.2
L=120,GX2,B,L,NO.2
L=110X3,L=100,NO.2
82219WIRE, THERMO SENSOR
W(ACCESSORY METER)
W(MECHANICAL & ACCESSORY METER)
82275ACABLE, BATTERY TO MAGNET SWITCH
82276ACABLE, MAGNET SWITCH TO WINCH
82282AWIRE, INDICATOR (FOR DIFF LOCK)
FRONT
REAR
82284WIRE, EARTH
82670BLOCK ASSY, JUNCTION, NO.1
NO.1
NO.1
NO.1
COLD SPEC,NO.2
NO.2
82821ACOVER, CONNECTOR
82823CAP, TERMINAL, NO.1
8401
8234512050DIODE
main82345-12050
8234532020DIODE
main82345-32020
9011908116
main90119-08116
9011908157
main90119-08157
9017905003
main90179-05003
9017906158
main90179-06158
9162140812
main91621-40812
9166140614
main91661-40614
32 parts on this diagram · 3 diagrams in section
