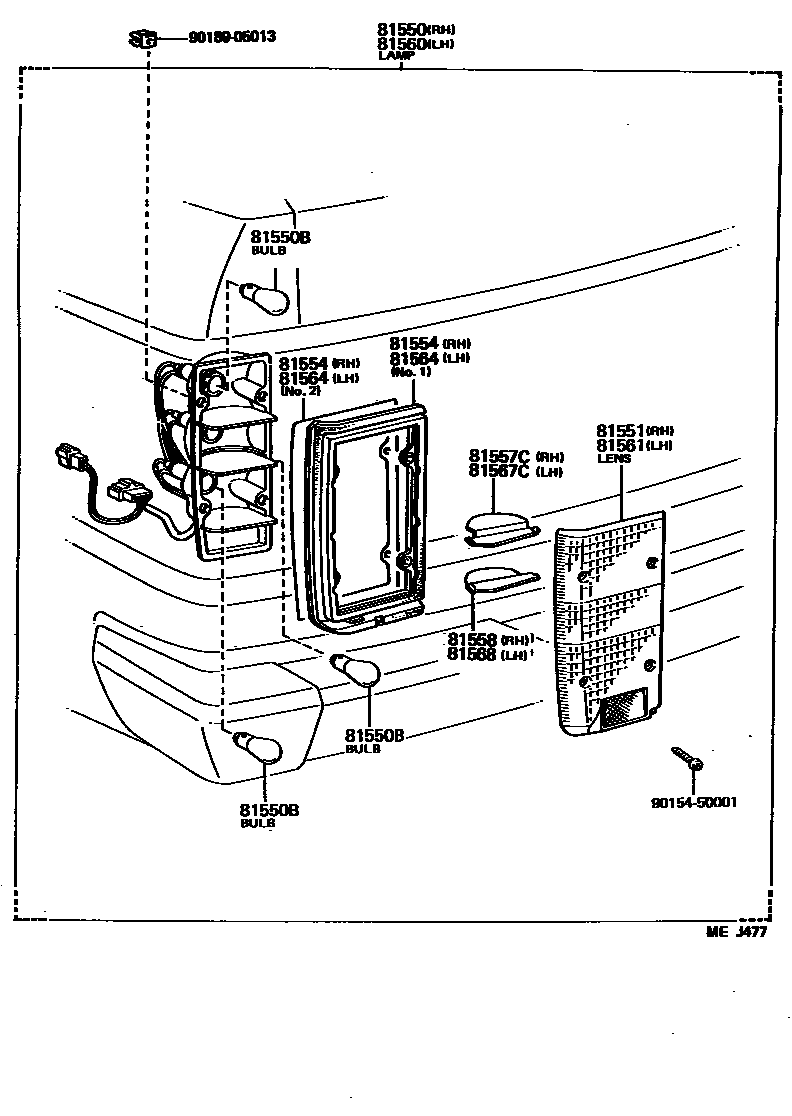

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-90A14iFJ62198808-199001

main81550-90A17iHJ6#198708-199001

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16014iHJ6#198708-199001

24V 21W

main90981-16015iHJ6#198708-199001

24V 21/5W

main99132-11210iFJ62198808-199001

12V 21W

main99132-21210iFJ62198808-199001

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-90A00iFJ62,HJ6#198708-199001

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-90A00iFJ62,HJ6#198708-199001

NO.1

main81554-90A12iFJ62,HJ6#198708-199001

NO.2

81557CCOVER, REAR COMBINATION LAMP, RH

main81557-90A00iFJ62,HJ6#198708-199001

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81558-90A00iFJ62,HJ6#198708-199001

81560LAMP ASSY, REAR COMBINATION, LH

main81560-90A14iFJ62198808-199001

main81560-90A17iHJ6#198708-199001

81561LENS, REAR COMBINATION LAMP, LH

main81561-90A00iFJ62,HJ6#198708-199001

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-90A00iFJ62,HJ6#198708-199001

NO.1

main81564-90A12iFJ62,HJ6#198708-199001

NO.2

81567CCOVER, REAR COMBINATION LAMP, LH

main81557-90A00iFJ62,HJ6#198708-199001

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81558-90A00iFJ62,HJ6#198708-199001

9015450001

main90154-50001

9018905013

main90189-05013

13 parts on this diagram · 1 diagram in section
