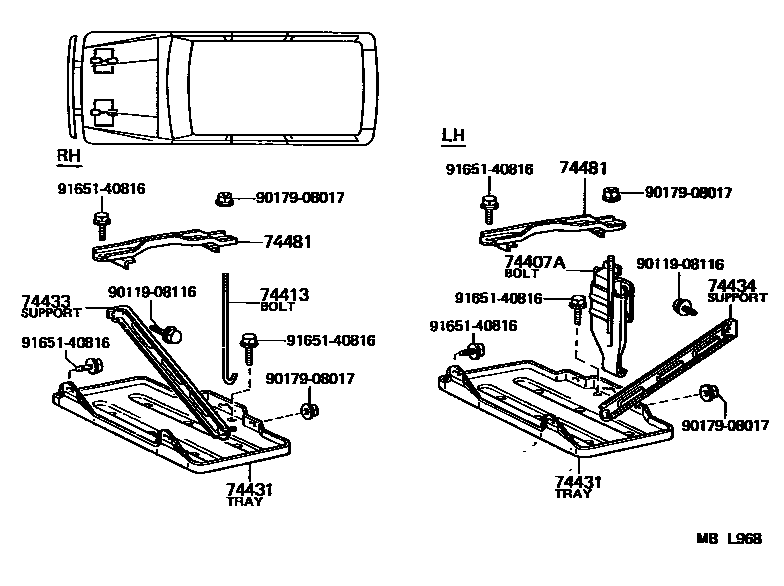

BATTERY CARRIER

74407ABOLT SUB-ASSY, BATTERY CLAMP

main74407-90A00iHJ6#198708-199001

74413BOLT, BATTERY CLAMP

main74451-90A00iFJ62,HJ6#198708-199001

74431TRAY, BATTERY

main74431-90A00iHJ6#198708-199001

74433SUPPORT, BATTERY TRAY, RH

main74433-90A00iFJ62,HJ6#198708-199001

74434SUPPORT, BATTERY TRAY, LH

main74434-90A00iHJ6#198708-199001

74481CLAMP, BATTERY HOLD DOWN

main74404-90A00iHJ6#198708-199001

9011908116

main90119-08116

9017908017

main90179-08017

9165140816

main91651-40816

9 parts on this diagram · 1 diagram in section
