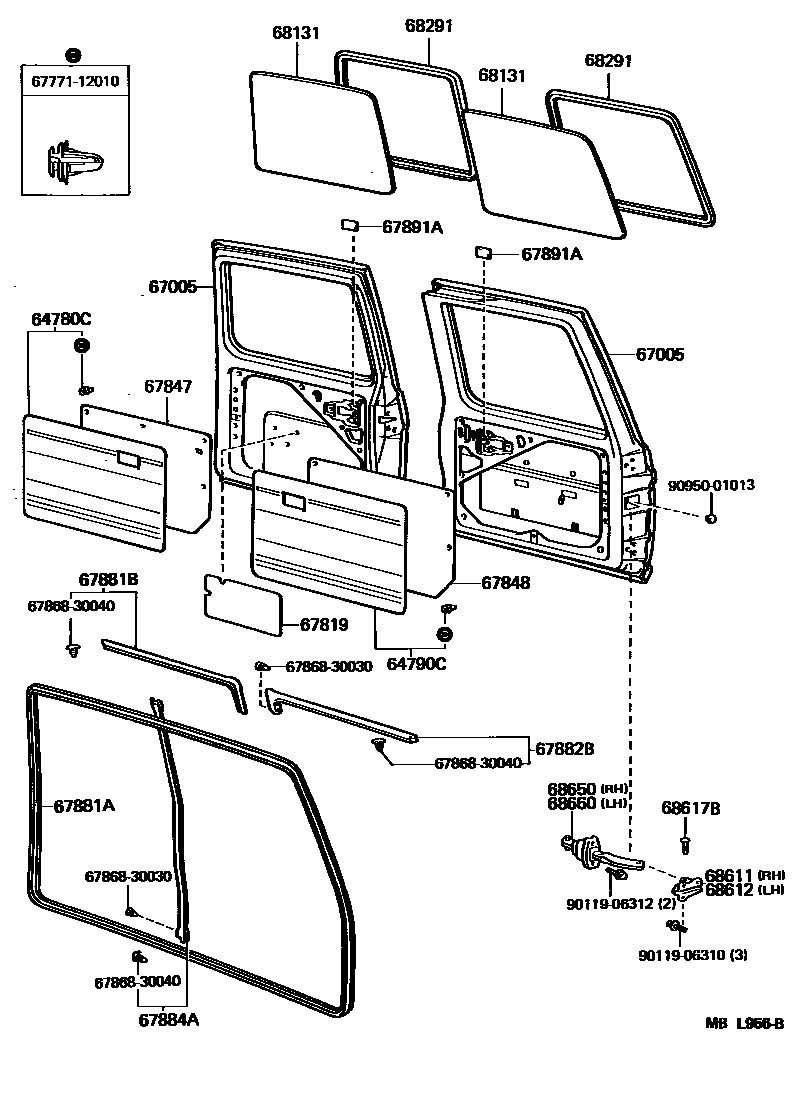

BACK DOOR PANEL & GLASS
64780CPANEL ASSY, BACK DOOR TRIM, RH
SHADOW GRAY,TRIM1#
SEPIA BROWN,TRIM4#
64790CPANEL ASSY, BACK DOOR TRIM, LH
SHADOW GRAY,TRIM1#
SEPIA BROWN,TRIM4#
67005PANEL SUB-ASSY, BACK DOOR
RH
W(MAGNET LOCK)
LH
67819PAD, BACK DOOR OUTSIDE PANEL
67847COVER, BACK DOOR SERVICE HOLE, RH
67848COVER, BACK DOOR SERVICE HOLE, LH
67881AWEATHERSTRIP, BACK DOOR
67881BWEATHERSTRIP, BACK DOOR, UPPER RH
67882BWEATHERSTRIP, BACK DOOR, UPPER LH
67884AWEATHERSTRIP, BACK DOOR, CENTER
67891ASEAL, BACK DOOR
68131GLASS, BACK DOOR
*EHTT,T=3.5
*EHTT,T=3.5,RH
*EHTT,T=3.5
*EHTT,T=3.5,LH
68291WEATHERSTRIP, BACK DOOR GLASS
RH
LH
68611BASE, BACK DOOR CHECK, RH
68612BASE, BACK DOOR CHECK, LH
68617BPIN, BACK DOOR CHECK
68650CHECK ASSY, BACK DOOR
W(REAR WINDOW DEFOGGER)
BELGIUM SPEC
BELGIUM SPEC & W(REAR WINDOW DEFOGGER)
BELGIUM SPEC
68660CHECK ASSY, BACK DOOR, LH
BELGIUM SPEC
6777112010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12010
6786830030CLIP, FRONT DOOR GLASS WEATHERSTRIP
main67868-30030
6786830040CLIP, FRONT DOOR GLASS WEATHERSTRIP
main67868-30040
9011906310
main90119-06310
9011906312
main90119-06312
9095001013
main90950-01013
24 parts on this diagram · 2 diagrams in section
