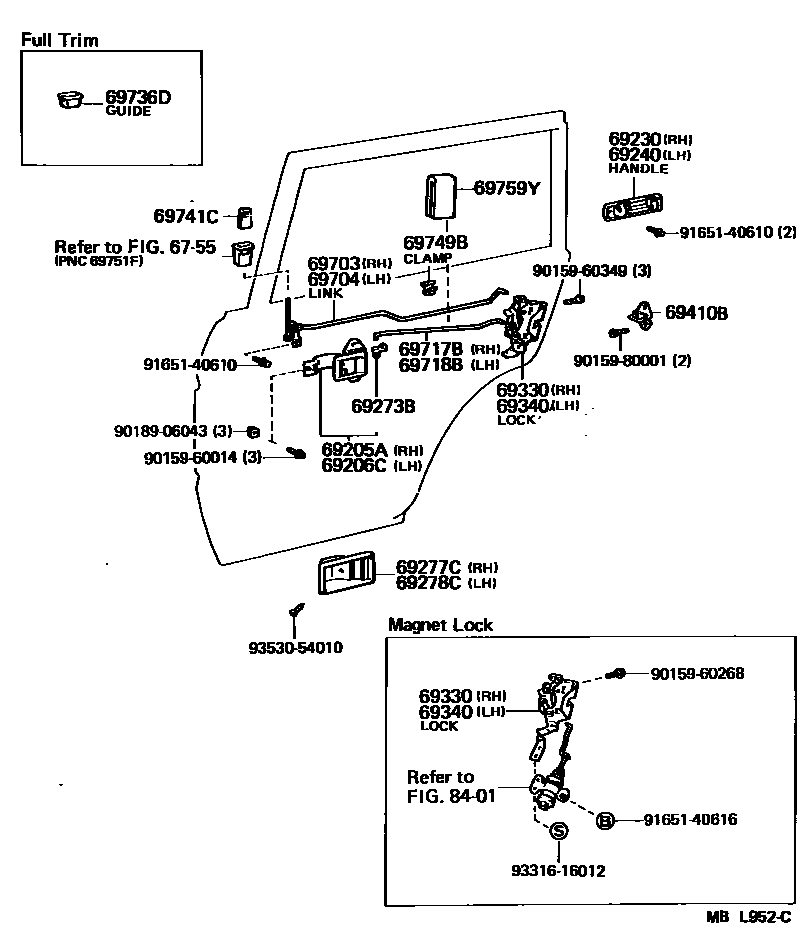

REAR DOOR LOCK & HANDLE

6755

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-20020iHJ6#;FJ62..SOB198708-199001

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-20020iHJ6#;FJ62..SOB198708-199001

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-90A00iHJ6#;FJ62..SOB198708-199001

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-90A00iHJ6#;FJ62..SOB198708-199001

69273BSNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)

main69273-30020iHJ6#;FJ62..SOB198708-199001

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-16040-23iFJ62..SOB;HJ6#..GX,VX198708-199001

GRAY,TRIM1#

sub69277-16040

sub69277-89104

main69277-16040-36iHJ6#;FJ62..SOB198708-199001

SEPIA BROWN,TRIM4#

sub69277-16040

sub69277-89104

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69277-16040-23iFJ62..SOB;HJ6#..GX,VX198708-199001

GRAY,TRIM1#

sub69277-16040

sub69277-89104

main69277-16040-36iHJ6#;FJ62..SOB198708-199001

SEPIA BROWN,TRIM4#

sub69277-16040

sub69277-89104

69330LOCK ASSY, REAR DOOR, RH

main69330-90A00iFJ62,HJ6#198708-199001

main69330-90A01iFJ62..SOB;HJ6#..GX,VX198708-199001

W(POWER WINDOW)

69340LOCK ASSY, REAR DOOR, LH

main69340-90A00iFJ62,HJ6#198708-199001

main69340-90A01iFJ62..SOB;HJ6#..GX,VX198708-199001

W(POWER WINDOW)

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-90B00iHJ6#;FJ62..SOB198708-199001

sub69410-90B01

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69770-90A02iHJ6#;FJ62..SOB198708-199001

main69770-90A03iFJ62..SOB;HJ6#..GX,VX198708-199001

W(POWER WINDOW)

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69780-90A02iHJ6#;FJ62..SOB198708-199001

main69780-90A03iFJ62..SOB;HJ6#..GX,VX198708-199001

W(POWER WINDOW)

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-90A00iFJ62,HJ6#198708-199001

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-90A00iFJ62,HJ6#198708-199001

69736DGUIDE, REAR DOOR LOCKING LINK

main69736-90K00iFJ62..SOB;HJ6#..GX,VX198708-199001

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-90K00-06iHJ6#;FJ62..SOB198708-199001

SEPIA BROWN,TRIM4#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12010iHJ6#;FJ62..SOB198708-199001

69759YSILENCER, REAR DOOR LOCK LINK

main69759-30021iFJ62,HJ6#198708-199001

8401

9015960014

main90159-60014

9015960268

main90159-60268

9015960349

main90159-60349

9015980001

main90159-80001

9018906043

main90189-06043

9165140610

main91651-40610

9165140616

main91651-40616

9331616012

main93316-16012

9353054010

main93530-54010

29 parts on this diagram · 1 diagram in section
