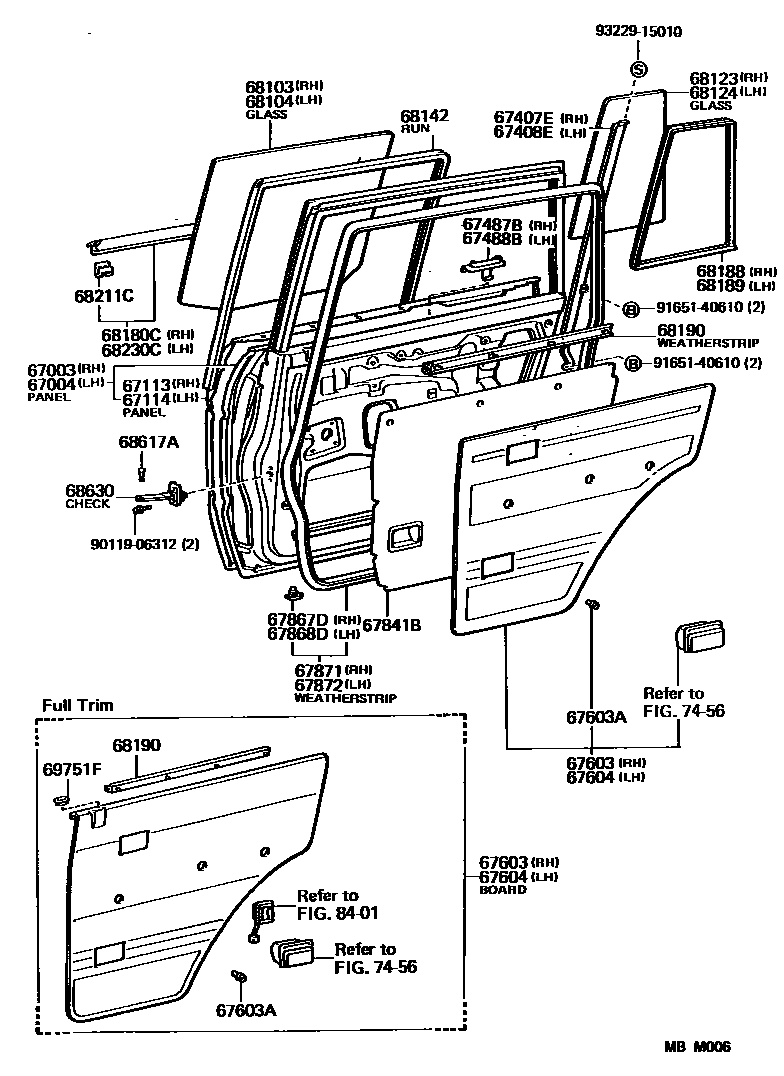

REAR DOOR PANEL & GLASS

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-90A15iFJ62,HJ6#198708-199001

sub67003-90A22

main67003-90A17iFJ62,HJ6#..GX,VX198708-199001

W(POWER WINDOW)

sub67003-90A23

main67003-90A19iHJ6#..LHD..(GX,VX)198708-199001

W(OVER FENDER)

sub67003-90A21

sub90950-01437

main67003-90A21iFJ62198708-199001

W(OVER FENDER & POWER WINDOW)

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-90A15iFJ62,HJ6#198708-199001

sub67004-90A17

sub90950-01437

main67004-90A17iFJ62,HJ6#..GX,VX198708-199001

W(POWER WINDOW)

main67004-90A19iFJ62198708-199001

W(OVER FENDER)

sub67004-90A21

sub90950-01437

main67004-90A21iFJ62198708-199001

W(OVER FENDER & POWER WINDOW)

67113PANEL, REAR DOOR, OUTER RH

main67113-90A05iFJ62,HJ6#198708-199001

main67113-90A07iFJ62198708-199001

W(OVER FENDER)

67114PANEL, REAR DOOR, OUTER LH

main67114-90A05iFJ62,HJ6#198708-199001

main67114-90A07iFJ62198708-199001

W(OVER FENDER)

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-90A00iFJ62,HJ6#198708-199001

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-90A00iFJ62,HJ6#198708-199001

67487BSEAL, REAR DOOR DIVISION BAR, RH

main67487-90A00iHJ60..STD198708-199001

67488BSEAL, REAR DOOR DIVISION BAR, LH

main67488-90A00iHJ60..STD198708-199001

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-90A11-06iHJ60..STD198708-199001

SEPIA BROWN,TRIM4#

sub67630-90A02

main67630-90A25-03iHJ6#..LHD..GX198708-198808

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67630-90A25-06iHJ6#..LHD..GX198708-198808

W(POWER WINDOW),SEPIA BROWN,TRIM4#

main67630-90A26-03iHJ61..VX198708-198808

SHADOW GRAY,TRIM1#

main67630-90A26-06iHJ61..VX198708-198808

SEPIA BROWN,TRIM4#

main67630-90A27-03iHJ61..VX198708-198808

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67630-90A27-06iHJ61..VX198708-198808

W(POWER WINDOW),SEPIA BROWN,TRIM4#

main67630-90A28-03iHJ6#..GX198708-198808

SHADOW GRAY,TRIM1#

main67630-90A28-06iHJ6#..GX198708-198808

SEPIA BROWN,TRIM4#

main67630-90A33-03iFJ62,HJ6#..GX198808-199001

SHADOW GRAY,TRIM1#

main67630-90A33-06iFJ62,HJ6#..GX198808-199001

SEPIA BROWN,TRIM4#

main67630-90A36-03iHJ6#..LHD..GX198808-199001

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67630-90A36-06iHJ6#..LHD..GX198808-199001

W(POWER WINDOW),SEPIA BROWN,TRIM4#

main67630-90A38-03iHJ61..VX198808-199001

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67630-90A38-06iHJ61..VX198808-199001

W(POWER WINDOW),SEPIA BROWN,TRIM4#

main67630-90A39-03iHJ61..VX198808-199001

SHADOW GRAY,TRIM1#

main67630-90A39-06iHJ61..VX198808-199001

SEPIA BROWN,TRIM4#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-30060iFJ62,HJ6#..GX198708-199001

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-90A11-06iHJ60..STD198708-199001

SEPIA BROWN,TRIM4#

sub67640-90A02

main67640-90A25-03iHJ6#..LHD..GX198708-198808

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67640-90A25-06iHJ60..RHD198708-198808

W(POWER WINDOW),SEPIA BROWN,TRIM4#

main67640-90A26-03iHJ61..VX198708-198808

SHADOW GRAY,TRIM1#

main67640-90A26-06iHJ61..VX198708-198808

SEPIA BROWN,TRIM4#

main67640-90A27-03iHJ61..VX198708-198808

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67640-90A27-06iHJ61..VX198708-198808

W(POWER WINDOW),SEPIA BROWN,TRIM4#

main67640-90A28-03iHJ6#..GX198708-198808

SHADOW GRAY,TRIM1#

main67640-90A28-06iHJ6#..GX198708-198808

SEPIA BROWN,TRIM4#

main67640-90A34-03iFJ62,HJ6#..GX198808-199001

SHADOW GRAY,TRIM1#

main67640-90A34-06iFJ62,HJ6#..GX198808-199001

SEPIA BROWN,TRIM4#

main67640-90A37-03iFJ62198808-199001

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67640-90A37-06iFJ62198808-199001

W(POWER WINDOW),SEPIA BROWN,TRIM4#

main67640-90A39-03iHJ61..VX198808-199001

W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67640-90A39-06iHJ61..VX198808-199001

W(POWER WINDOW),SEPIA BROWN,TRIM4#

main67640-90A40-03iHJ61..VX198808-199001

SHADOW GRAY,TRIM1#

main67640-90A40-06iHJ61..VX198808-199001

SEPIA BROWN,TRIM4#

67841BCOVER, REAR DOOR SERVICE HOLE

main67805-90A01iFJ62,HJ6#198708-199001

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67868-30040iFJ62,HJ6#198708-199001

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67868-30040iFJ62,HJ6#198708-199001

67871WEATHERSTRIP, REAR DOOR, RH

main67871-90A00iFJ62,HJ6#198708-199001

67872WEATHERSTRIP, REAR DOOR, LH

main67872-90A00iFJ62,HJ6#198708-199001

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-90A01iFJ62,HJ6#198708-199001

*TT,T=4.0

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-90A01iFJ62,HJ6#198708-199001

*TT,T=4.0

68123GLASS, REAR DOOR WINDOW, RH

main68123-90A01iFJ62,HJ6#198708-199001

*TT,T=4.0

68124GLASS, REAR DOOR WINDOW, LH

main68124-90A01iFJ62,HJ6#198708-199001

*TT,T=4.0

68142RUN, REAR DOOR GLASS

main68142-90A01iFJ62,HJ6#198708-199001

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-90A01iHJ60..STD198708-199001

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-90A00iFJ62,HJ6#198708-199001

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-90A00iFJ62,HJ6#198708-199001

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-90A00iHJ60..STD198708-199001

main68190-90A01iFJ62,HJ6#..GX,VX198708-199001

68211CCLIP(FOR REAR DOOR GLASS WEATHERSTRIP)

main68211-90K00iHJ60..STD198708-199001

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-90A01iHJ60..STD198708-199001

68617APIN, REAR DOOR CHECK

main68617-90A01iFJ62,HJ6#198708-199001

68630CHECK ASSY, REAR DOOR

main68630-90A00iFJ62,HJ6#198708-199001

69751FHOLDER, REAR DOOR LOCK CONTROL KNOB

main69079-90K00-06iHJ60..STD198708-199001

SEPIA BROWN,TRIM4#

sub69079-90K00

main69751-20040iHJ6#..GX,VX198708-199001

main69751-32010-13iHJ61..VX198808-199001

SHADOW GRAY,TRIM1#

sub69751-32010

main69751-32010-26iHJ61..VX198808-199001

SEPIA BROWN,TRIM4#

sub69751-32010

7456

8401

9011906312

main90119-06312

9165140610

main91651-40610

9322915010

main93229-15010

35 parts on this diagram · 1 diagram in section
