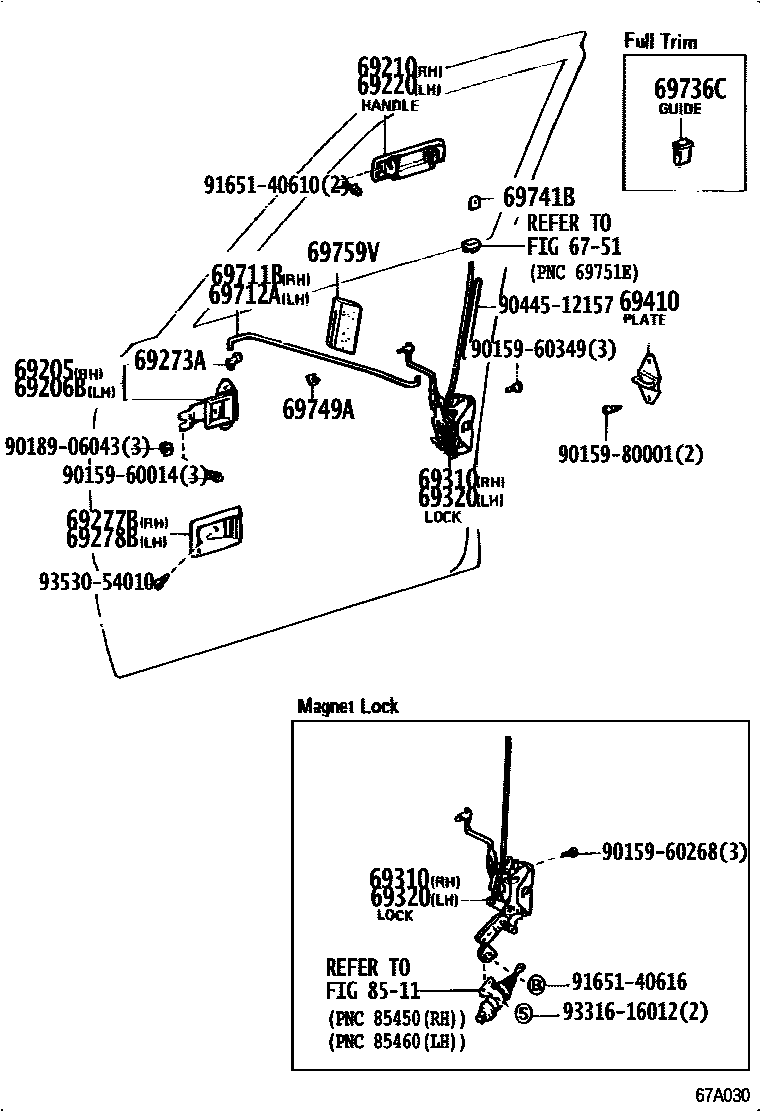

FRONT DOOR LOCK & HANDLE

6751

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-20020iHJ6#;FJ62..SOB198708-199001

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-20020iHJ6#;FJ62..SOB198708-199001

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-90A00iHJ6#;FJ62..SOB198708-199001

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-90A00iHJ6#;FJ62..SOB198708-199001

69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)

main69273-30020iHJ6#;FJ62..SOB198708-199001

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-16040-23iFJ62..SOB;HJ6#..GX,VX198708-199001

GRAY,TRIM1#

sub69277-16040

sub69277-89104

main69277-16040-36iHJ6#;FJ62..SOB198708-199001

SEPIA BROWN,TRIM4#

sub69277-16040

sub69277-89104

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69277-16040-23iFJ62..SOB;HJ6#..GX,VX198708-199001

GRAY,TRIM1#

sub69277-16040

sub69277-89104

main69277-16040-36iHJ6#;FJ62..SOB198708-199001

SEPIA BROWN,TRIM4#

sub69277-16040

sub69277-89104

69310LOCK ASSY, FRONT DOOR, RH

main69310-90A00iFJ62,HJ6#198708-199001

main69310-90A01iFJ62..SOB;HJ6#..GX,VX198708-199001

W(POWER WINDOW)

69320LOCK ASSY, FRONT DOOR, LH

main69320-90A00iFJ62,HJ6#198708-199001

main69320-90A01iFJ62..SOB;HJ6#..GX,VX198708-199001

W(POWER WINDOW)

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-90B00iHJ6#;FJ62..SOB198708-199001

sub69410-90B01

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-90A00iFJ62,HJ6#198708-199001

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-90A00iFJ62,HJ6#198708-199001

69736CGUIDE, FRONT DOOR LOCKING LINK

main69736-90K00iFJ62..SOB;HJ6#..GX,VX198708-199001

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-90K00-06iHJ6#;FJ62..SOB198708-199001

SEPIA BROWN,TRIM4#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-12010iFJ62,HJ6#198708-199001

69759VSILENCER, FRONT DOOR LOCK LINK

main69759-30021iFJ62,HJ6#198708-199001

8511

9015960014

main90159-60014

9015960268

main90159-60268

9015960349

main90159-60349

9015980001

main90159-80001

9018906043

main90189-06043

9044512157

main90445-12157

9165140610

main91651-40610

9165140616

main91651-40616

9331616012

main93316-16012

9353054010

main93530-54010

28 parts on this diagram · 1 diagram in section
