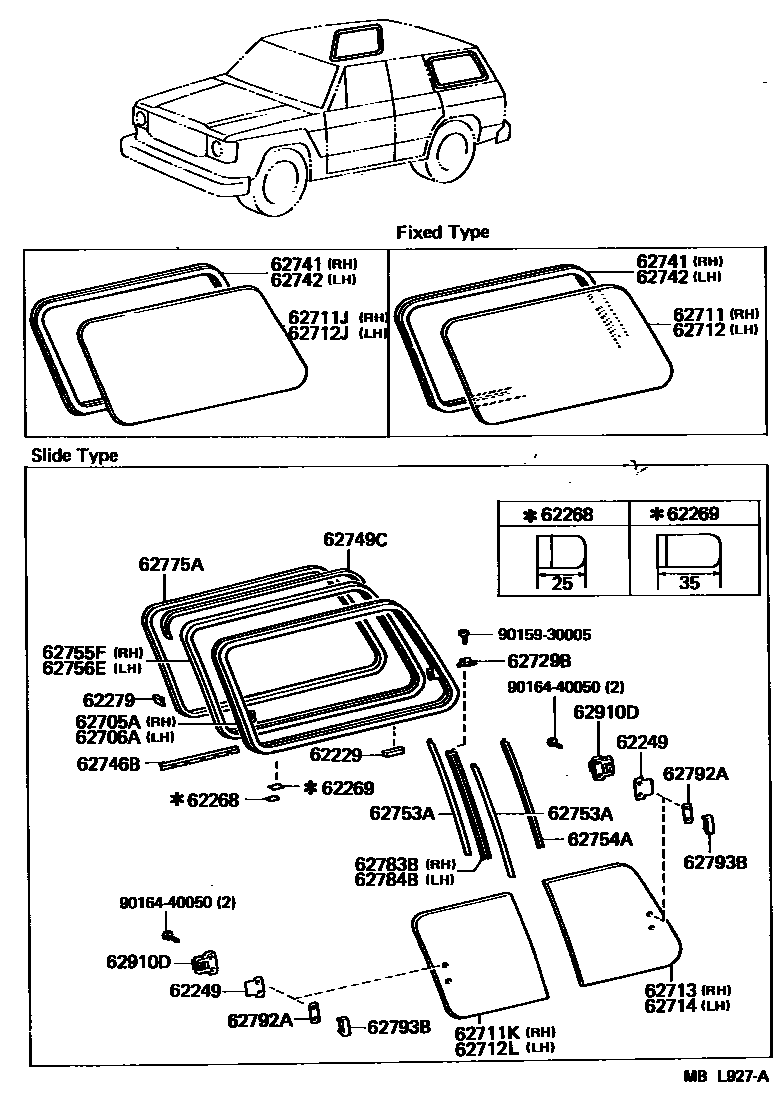

SIDE WINDOW
62229PACKING, SIDE WINDOW
62249PLATE, SIDE WINDOW, RH
62268FILM, SIDE WINDOW FRAME, B
62269FILM, SIDE WINDOW FRAME, RH
62279SPACER, SIDE WINDOW FRAME, UPPER
62705AFRAME SUB-ASSY, QUARTER WINDOW, RH
62706AFRAME SUB-ASSY, QUARTER WINDOW, LH
62711GLASS, QUARTER WINDOW, RH
*TT,T=3.5
62711JPANEL, QUARTER WINDOW, RH
62711KGLASS, QUARTER WINDOW, FRONT RH
*TT,T=4.0
62712GLASS, QUARTER WINDOW, LH
*TT,T=3.5
62712JPANEL, QUARTER WINDOW, LH
62712LGLASS, QUARTER WINDOW, FRONT LH
*TT,T=4.0
62713GLASS, QUARTER WINDOW, REAR RH
*TT,T=4.0
62714GLASS, QUARTER WINDOW, REAR LH
*TT,T=4.0
62729BPAD, WINDOW CENTER SASH
62741WEATHERSTRIP, QUARTER WINDOW, RH
62742WEATHERSTRIP, QUARTER WINDOW, LH
62746BPACKING, QUARTER WINDOW, RH
62753AWEATHERSTRIP, QUARTER WINDOW, CENTER
62754AWEATHERSTRIP, QUARTER WINDOW, CENTER NO.2
62755FRUN, QUARTER WINDOW, RH
62756ERUN, QUARTER WINDOW, LH
62775ACLIP, QUARTER WINDOW
62783BSASH, QUARTER WINDOW, CENTER RH
62784BSASH, QUARTER WINDOW, CENTER LH
62792APACKING, SIDE WINDOW LOCK, RH
62793BRETAINER, SIDE WINDOW LOCK, RH
62910DLOCK ASSY, QUARTER WINDOW
9015930005
main90159-30005
9016440050
main90164-40050
32 parts on this diagram · 1 diagram in section
