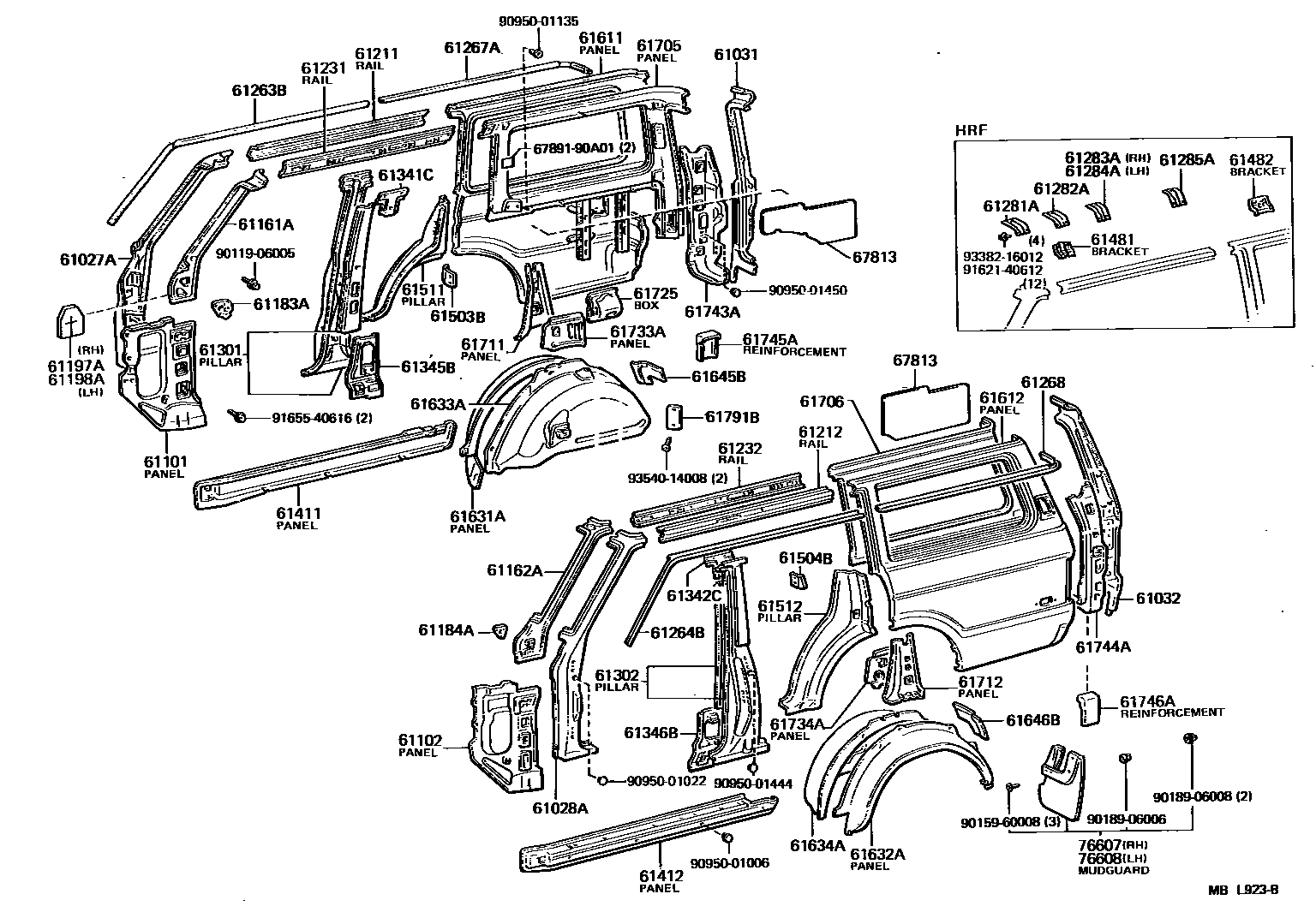

SIDE MEMBER

0001 1 0002 1

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-90A04iFJ62,HJ6#198708-199001

main61027-90A10iHJ60..HRF198708-199001

W(SUN ROOF)

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-90A04iFJ62,HJ6#198708-199001

main61028-90A07iHJ60..HRF198708-199001

W(SUN ROOF)

61031EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER RH

main61031-90A02iFJ62,HJ6#..LUB198708-199001

main61031-90A03iFJ62,HJ6#..SOB198708-199001

61032EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH

main61032-90A00iFJ62,HJ6#..LUB198708-199001

main61032-90A02iFJ62,HJ6#..SOB198708-199001

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-90A08iFJ62,HJ6#198708-199001

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-90A07iFJ62,HJ6#198708-199001

61161APILLAR, FRONT BODY, INNER RH

main61161-90A03iFJ62,HJ6#198708-198812

61162APILLAR, FRONT BODY, INNER LH

main61162-90A03iFJ62,HJ6#198708-198812

61183ABRACKET, INSTRUMENT PANEL SIDE, NO.2 RH

main61183-90A01iFJ62,HJ6#198708-199001

61184ABRACKET, INSTRUMENT PANEL SIDE, NO.2 LH

main61184-90A00iFJ62,HJ6#198708-199001

61197ACOVER, FRONT PILLAR, RH

main61197-90A00iFJ62,HJ60..ATM198708-199001

61198ACOVER, FRONT PILLAR, LH

main61197-90A00iFJ62,HJ60..ATM198708-199001

61211RAIL, ROOF SIDE, OUTER RH

main61211-90A01iFJ62,HJ6#198708-199001

61212RAIL, ROOF SIDE, OUTER LH

main61212-90A01iFJ62,HJ6#198708-199001

61231RAIL, ROOF SIDE, INNER RH

main61231-90A03iFJ62,HJ6#198708-199001

61232RAIL, ROOF SIDE, INNER LH

main61232-90A02iFJ62,HJ6#198708-199001

61263BCHANNEL, ROOF DRIP SIDE, FRONT RH

main61263-90A01iFJ62,HJ6#198708-199001

61264BCHANNEL, ROOF DRIP SIDE, FRONT LH

main61264-90A01iFJ62,HJ6#198708-199001

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-90A00iFJ62,HJ6#198708-199001

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-90A00iFJ62,HJ6#198708-199001

61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-90A00×2iHJ60..HRF198708-199001

61282ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.2

main61282-90A00×2iHJ60..HRF198708-199001

61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH

main61283-90A00iHJ60..HRF..SOB198708-199001

61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH

main61283-90A00iHJ60..HRF..LUB198708-199001

61285ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.4

main61285-90A00×2iHJ60..HRF198708-199001

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61330-90A04iFJ62,HJ6#198708-199001

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61340-90A05iFJ62,HJ6#198708-199001

61341CPILLAR, CENTER BODY, INNER UPPER RH

main61341-90A00iFJ62,HJ6#198708-199001

61342CPILLAR, CENTER BODY, INNER UPPER LH

main61342-90A00iFJ62,HJ6#198708-199001

61345BPILLAR, CENTER BODY, INNER LOWER RH

main61345-90A00iFJ62,HJ6#198708-199001

61346BPILLAR, CENTER BODY, INNER LOWER LH

main61346-90A00iFJ62,HJ6#198708-199001

61411PANEL, ROCKER, OUTER RH

main61401-90A06iFJ62,HJ6#198708-199001

61412PANEL, ROCKER, OUTER LH

main61402-90A06iFJ62,HJ6#198708-199001

61481BRACKET, ROOF SIDE RAIL REINFORCE, NO.1

main61481-90A00iHJ60..HRF198708-199001

main61481-90A01×4iHJ60..HRF198708-199001

W(SUN ROOF)

61482BRACKET, ROOF SIDE RAIL REINFORCE, NO.2

main61482-90A00iHJ60..HRF198708-199001

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-90A00iFJ62,HJ6#198708-199001

61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

main61504-90A00iFJ62,HJ6#198708-199001

61511PILLAR, QUARTER LOCK, RH

main61511-90A01iFJ62,HJ6#198708-199001

61512PILLAR, QUARTER LOCK, LH

main61512-90A01iFJ62,HJ6#198708-199001

61611PANEL, QUARTER, RH

main61611-90A15iFJ62,HJ6#198708-199001

main61611-90A18iFJ62198708-199001

W(OVER FENDER)

61612PANEL, QUARTER, LH

main61612-90A12iFJ62,HJ6#198708-199001

main61612-90A15iFJ62198708-199001

W(OVER FENDER)

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-90A03iFJ62,HJ6#198708-199001

main61631-90A05iHJ60..HRF198708-199001

W(SUN ROOF)

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-90A03iFJ62,HJ6#198708-199001

main61632-90A05iHJ60..HRF198708-199001

W(SUN ROOF)

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-90A04iFJ62,HJ6#..SRF;HJ60..HRF..SOB198708-199001

main61607-90A07iHJ60..HRF..LUB198708-199001

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-90A00iFJ62,HJ6#..SRF;HJ60..HRF..SOB198708-199001

main61608-90A03iHJ60..HRF..LUB198708-199001

main61608-90A07iFJ62..LUB198708-199001

W(REAR 3 POINT SEAT BELT)

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-90A00iFJ62,HJ6#198708-199001

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-90A00iFJ62,HJ6#198708-199001

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-90A30iFJ62,HJ6#..SRF198708-199001

W(ROOF CARRIER)

main61705-90A33iHJ60..HRF..LUB198708-199001

sub61705-90A36

main61705-90A40iFJ62,HJ6#..SRF;HJ60..HRF..SOB198708-199001

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-90A49iFJ62,HJ6#..SOB198708-199001

main61706-90A66iFJ62,HJ6#..SRF..LUB198708-199001

W(ROOF CARRIER)

main61706-90A67iFJ62,HJ6#..SRF..LUB198708-199001

main61706-90A70iHJ60..HRF..LUB198708-199001

61711PANEL, ROOF SIDE, OUTER RH

main61711-90A01iFJ62,HJ6#198708-199001

61712PANEL, ROOF SIDE, OUTER LH

main61712-90A01iFJ62,HJ6#198708-199001

61725BOX, FUEL INLET

main61709-90A01iFJ62,HJ6#198708-199001

main61709-90A02iHJ60..STD;HJ60..RHD198708-199001

W(FUEL LID OPENER)

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-90A02iHJ6#..SRF..(GX,STD)198708-198712

main61733-90A03iFJ62,HJ6#..SRF..(GX,STD)198708-199001

W(REAR SEAT BELT = *ELR)

main61733-90A05iFJ62,HJ6#..SRF..(GX,STD)198712-199001

61734APANEL, ROOF SIDE, INNER FRONT LH

main61734-90A01iHJ61..VX;HJ60..HRF;FJ62..LUB198708-199001

W(REAR SEAT BELT = *ELR)

main61734-90A03iHJ6#..SRF..(GX,STD)198708-198712

main61734-90A05iFJ62..LUB198708-199001

W(REAR SEAT BELT = *ELR)

61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH

main61743-90A01iFJ62,HJ6#..SOB198708-199001

main61743-90A02iFJ62,HJ6#..LUB198708-199001

61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH

main61034-90A00iFJ62,HJ6#..LUB198708-199001

main61034-90A01iFJ62,HJ6#..SOB198708-199001

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61745-90A01iFJ62,HJ6#198708-199001

61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH

main61746-90A01iFJ62,HJ6#198708-199001

61791BCOVER, ROOF SIDE INNER SERVICE HOLE

main61791-90B01×2iFJ62,HJ6#198708-199001

67813PAD, QUARTER PANEL SILENCER

main67813-90A00iFJ62,HJ6#198708-199001

RH

main67814-90A00iFJ62,HJ6#198708-199001

LH

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76607-69015iHJ60..LHD..MTM..GX198708-199001

main76607-90A01iFJ62198708-199001

W(OVER FENDER)

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76608-69015iHJ60..LHD..MTM..GX198708-199001

main76608-90A01iFJ62198708-199001

W(OVER FENDER)

6789190A01WEATHERSTRIP, REAR DOOR PANEL

main67891-90A01

9011906005

main90119-06005

9015960008

main90159-60008

9018906006

main90189-06006

9018906008

main90189-06008

9095001006

main90950-01006

9095001022

main90950-01022

9095001135

main90950-01135

9095001444

main90950-01444

9095001450

main90950-01450

9162140612

main91621-40612

9165540616

main91655-40616

9338216012

main93382-16012

9354014008

main93540-14008

76 parts on this diagram · 2 diagrams in section
