FLOOR MAT & SILENCER PAD

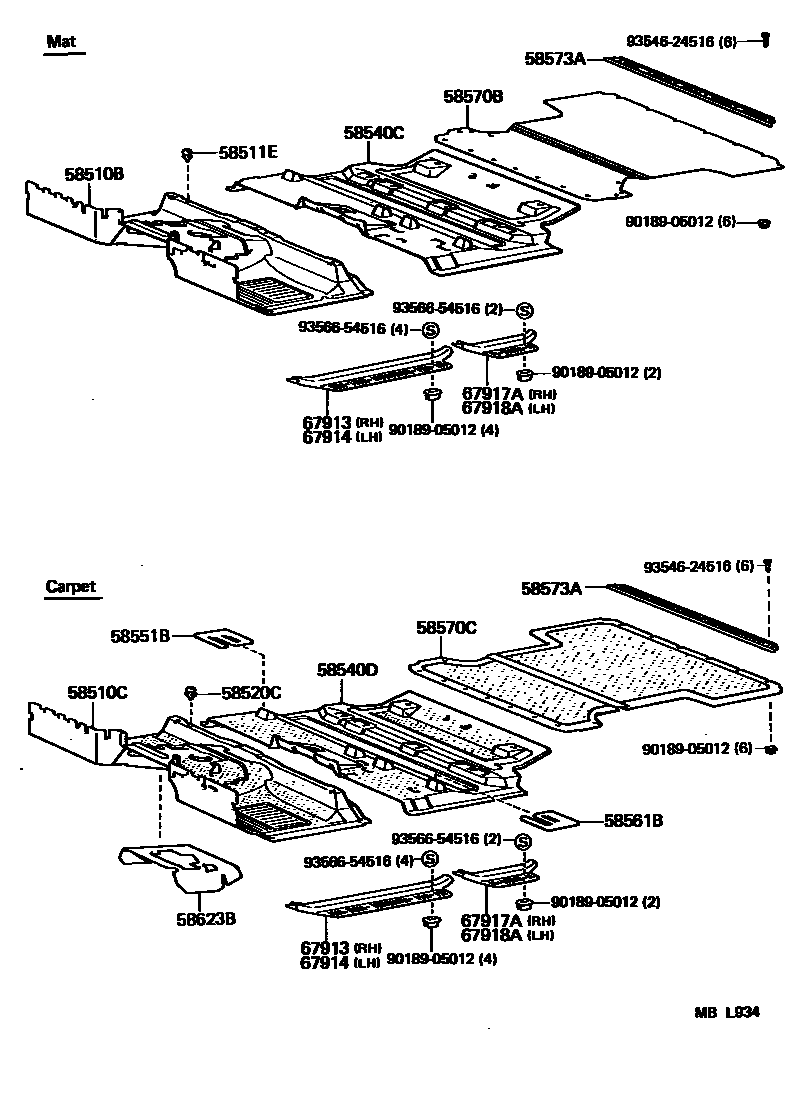

Parts diagram
58510BMAT, FRONT FLOOR, FRONT
main58510-90A77-03i198708-199001
SHADOW GRAY,TRIM1#
main58510-90A77-06i198708-199001
SEPIA BROWN,TRIM4#
main58510-90A79-03i198708-199001
W(PTO),SHADOW GRAY,TRIM1#
main58510-90A79-06i198708-199001
W(WINCH) OR W(PTO),SEPIA BROWN,TRIM4#
main58510-90A79-06i198708-199001
W(PTO),SEPIA BROWN,TRIM4#
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-90A85-03i198708-199001
SHADOW GRAY,TRIM1#
sub58510-90A85
main58510-90A85-06i198708-199001
SEPIA BROWN,TRIM4#
sub58510-90A85
main58510-90A87-03i198708-199001
W(PTO),SHADOW GRAY,TRIM1#
main58510-90A87-06i198708-199001
W(PTO),SEPIA BROWN,TRIM4#
main58510-90A97-03i198708-199001
SHADOW GRAY,TRIM1#
sub58510-90G05
main58510-90A97-06i198708-199001
SEPIA BROWN,TRIM4#
sub58510-90G05
main58510-90A98-03i198708-199001
SHADOW GRAY,TRIM1#
sub58510-90G06
main58510-90A98-06i198708-199001
SEPIA BROWN,TRIM4#
sub58510-90G06
main58510-90A99-03i198708-199001
W(WINCH) OR W(PTO),SHADOW GRAY,TRIM1#
sub58510-90G07
main58510-90A99-03i198708-199001
W(PTO),SHADOW GRAY,TRIM1#
sub58510-90G07
main58510-90A99-06i198708-199001
W(WINCH) OR W(PTO),SEPIA BROWN,TRIM4#
sub58510-90G07
main58510-90A99-06i198708-199001
W(PTO),SEPIA BROWN,TRIM4#
sub58510-90G07
main58510-90G06-03i198708-199001
SHADOW GRAY,TRIM1#
sub58510-90G06
main58510-90G06-06i198708-199001
SEPIA BROWN,TRIM4#
sub58510-90G06
main58510-90G07-03i198708-199001
W(WINCH) OR W(PTO),SHADOW GRAY,TRIM1#
sub58510-90G07
main58510-90G07-03i199001-199001
W(MECHANICAL WINCH) OR W(PTO & LEVER ONLY),SHADOW GRAY,TRIM1#
sub58510-90G07
main58510-90G07-06i199001-199001
W(MECHANICAL WINCH) OR W(PTO & LEVER ONLY),SEPIA BROWN,TRIM4#
sub58510-90G07
main58510-90G07-06i198708-199001
W(WINCH) OR W(PTO),SEPIA BROWN,TRIM4#
sub58510-90G07
main58510-90G19-03i198708-199001
SHADOW GRAY,TRIM1#
main58510-90G19-06i198708-199001
SEPIA BROWN,TRIM4#
main58510-90G20-03i198708-199001
W(PTO),SHADOW GRAY,TRIM1#
main58510-90G20-06i198708-199001
W(PTO),SEPIA BROWN,TRIM4#
58511ECLIP(FOR FRONT FLOOR MAT)
main90467-12035-03i198708-199001
SHADOW GRAY,TRIM1#
sub90467-12035
main90467-12035-03i198708-199001
W(*SUS),SHADOW GRAY,TRIM1#
sub90467-12035
main90467-12035-06i198708-199001
SEPIA BROWN,TRIM4#
sub90467-12035
main90467-12035-06i198708-199001
W(*SUS),SEPIA BROWN,TRIM4#
sub90467-12035
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-12035-03i198708-199001
SHADOW GRAY,TRIM1#
sub90467-12035
main90467-12035-03i198708-199001
W(BENCH SEAT),SHADOW GRAY,TRIM1#
sub90467-12035
main90467-12035-03i198708-199001
W(*SUS),SHADOW GRAY,TRIM1#
sub90467-12035
main90467-12035-06i198708-199001
SEPIA BROWN,TRIM4#
sub90467-12035
main90467-12035-06i198708-199001
W(BENCH SEAT),SEPIA BROWN,TRIM4#
sub90467-12035
main90467-12035-06i198708-199001
W(*SUS),SEPIA BROWN,TRIM4#
sub90467-12035
58540CMAT ASSY, FLOOR, REAR
main58540-90A79-06i198708-199001
SEPIA BROWN,TRIM4#
main58540-90A92-03i198708-199001
SHADOW GRAY,TRIM1#
main58540-90A92-06i198708-199001
SEPIA BROWN,TRIM4#
main58540-90A98-06i198708-199001
W/O(REAR SEAT),SEPIA BROWN,TRIM4#
main58540-90G16-03i198708-199001
W(*SUS),SHADOW GRAY,TRIM1#
main58540-90G16-06i198708-199001
W(*SUS),SEPIA BROWN,TRIM4#
58540DCARPET ASSY, FLOOR, REAR
main58540-90A81-03i198708-199001
W(BENCH SEAT),SHADOW GRAY,TRIM1#
sub58540-90A81
main58540-90A81-06i198708-199001
W(BENCH SEAT),SEPIA BROWN,TRIM4#
sub58540-90A81
main58540-90A82-03i198708-199001
SHADOW GRAY,TRIM1#
main58540-90A82-06i198708-199001
SEPIA BROWN,TRIM4#
main58540-90A83-03i198708-199001
SHADOW GRAY,TRIM1#
sub58540-90A83
main58540-90A83-06i198708-199001
SEPIA BROWN,TRIM4#
sub58540-90A83
main58540-90A85-03i198708-199001
W(BENCH SEAT & REAR HEATER),SHADOW GRAY,TRIM1#
sub58540-90A85
main58540-90A85-06i198708-199001
W(BENCH SEAT & REAR HEATER),SEPIA BROWN,TRIM4#
sub58540-90A85
main58540-90A87-03i198708-199001
SHADOW GRAY,TRIM1#
main58540-90A87-06i198708-199001
SEPIA BROWN,TRIM4#
main58540-90A88-03i198708-199001
W(BENCH SEAT & REAR HEATER),SHADOW GRAY,TRIM1#
main58540-90A88-06i198708-199001
W(BENCH SEAT & REAR HEATER),SEPIA BROWN,TRIM4#
main58540-90A89-03i198708-199001
W(BENCH SEAT),SHADOW GRAY,TRIM1#
main58540-90A89-06i198708-199001
W(BENCH SEAT),SEPIA BROWN,TRIM4#
main58540-90G01-03i198708-199001
W(*SUS),SHADOW GRAY,TRIM1#
main58540-90G01-06i198708-199001
W(*SUS),SEPIA BROWN,TRIM4#
main58540-90G04-03i198708-199001
W(*SUS),SHADOW GRAY,TRIM1#
sub58540-90G04
main58540-90G04-06i198708-199001
DARK BROWN,TRIM4#
sub58540-90G04
main58540-90G05-03i198708-199001
W(*SUS),SHADOW GRAY,TRIM1#
main58540-90G05-06i198708-199001
W(*SUS),SEPIA BROWN,TRIM4#
main58540-90G06-03i198708-199001
SHADOW GRAY,TRIM1#
main58540-90G06-06i198708-199001
DARK BROWN,TRIM4#
main58540-90G07-03i198708-199001
W/O(REAR SEAT),SHADOW GRAY,TRIM1#
sub58540-90G07
main58540-90G07-06i198708-199001
W/O(REAR SEAT),SEPIA BROWN,TRIM4#
sub58540-90G07
main58540-90G26-03i198708-199001
W(*SUS) & W/O(REAR SEAT),SHADOW GRAY,TRIM1#
main58540-90G26-06i198708-199001
W(*SUS) & W/O(REAR SEAT),SEPIA BROWN,TRIM4#
58551BCARPET, FRONT FLOOR SIDE, RH
main58551-90A00-03i198708-199001
SHADOW GRAY,TRIM1#
main58551-90A00-06i198708-199001
DARK BROWN,TRIM4#
main58551-90A01-03i198708-199001
SHADOW GRAY,TRIM1#
sub58551-90A01
main58551-90A01-06i198708-199001
DARK BROWN,TRIM4#
sub58551-90A01
58561BCARPET, FRONT FLOOR SIDE, LH
main58561-90A00-03i198708-199001
SHADOW GRAY,TRIM1#
main58561-90A00-06i198708-199001
DARK BROWN,TRIM4#
main58561-90A01-03i198708-199001
SHADOW GRAY,TRIM1#
main58561-90A01-06i198708-199001
DARK BROWN,TRIM4#
58570BMAT ASSY, REAR FLOOR
main58581-90A08-06i198708-199001
SEPIA BROWN,TRIM4#
main58581-90A09-06i198708-199001
W/O(REAR SEAT),SEPIA BROWN,TRIM4#
main58581-90A13-03i198708-199001
SHADOW GRAY,TRIM1#
sub58581-90A13
main58581-90A13-06i198708-199001
SEPIA BROWN,TRIM4#
sub58581-90A13
58570CCARPET ASSY, REAR FLOOR
main58570-90A18-03i198708-199001
SHADOW GRAY,TRIM1#
main58570-90A18-06i198708-199001
SEPIA BROWN,TRIM4#
main58570-90A24-03i198708-199001
SHADOW GRAY,TRIM1#
sub58570-90A24
main58570-90A24-06i198708-199001
DARK BROWN,TRIM4#
sub58570-90A24
main58570-90A28-03i198708-199001
SHADOW GRAY,TRIM1#
sub58570-90A28
main58570-90A28-06i198708-199001
SEPIA BROWN,TRIM4#
sub58570-90A28
main58570-90A29-03i198708-199001
W/O(REAR SEAT),SHADOW GRAY,TRIM1#
main58570-90A29-06i198708-199001
W/O(REAR SEAT),SEPIA BROWN,TRIM4#
58573APLATE, REAR FLOOR MAT SUPPORT
main58573-90A00i198708-199001
58623BPAD, FRONT FLOOR SILENCER, CENTER
main58623-90A00i198708-199001
67913PLATE, FRONT DOOR SCUFF, RH
main67913-90A00-03i198708-199001
GRAY,TRIM1#
sub67913-90A00
main67913-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub67913-90A00
67914PLATE, FRONT DOOR SCUFF, LH
main67913-90A00-03i198708-199001
GRAY,TRIM1#
sub67913-90A00
main67913-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub67913-90A00
67917APLATE, REAR DOOR SCUFF, RH
main67917-90A00-03i198708-199001
GRAY,TRIM1#
sub67917-90A00
main67917-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub67917-90A00
67918APLATE, REAR DOOR SCUFF, LH
main67917-90A00-03i198708-199001
GRAY,TRIM1#
sub67917-90A00
main67917-90A00-16i198708-199001
SEPIA BROWN,TRIM4#
sub67917-90A00
9018905012
main90189-05012
9354624516
main93546-24516
9356654516
main93566-54516

19 parts on this diagram · 1 diagram in section
