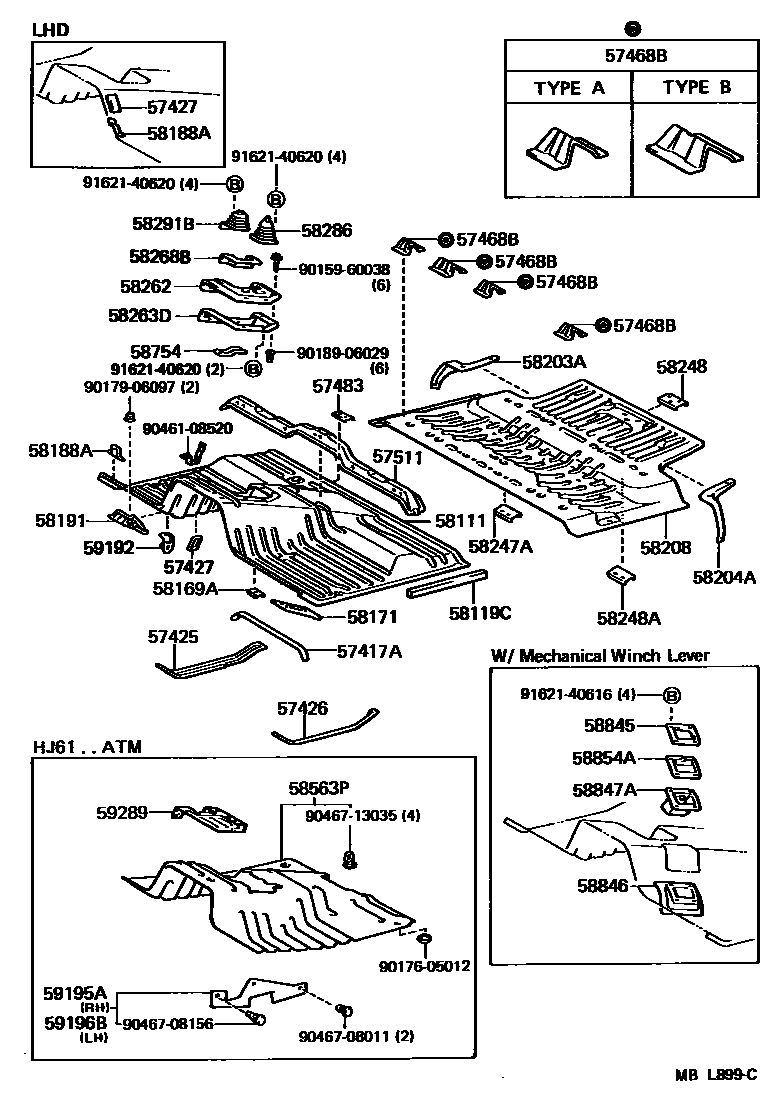

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1

57417AREINFORCEMENT, FRONT FLOOR UNDER

main57417-90A03iHJ6#..MTM198708-199001

main57505-90A02iFJ62198708-199001

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-90A02iHJ6#198708-199001

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-90A04iHJ6#198708-199001

57427REINFORCEMENT, FRONT FLOOR TO BRACE

main57427-90A00iHJ6#198708-199001

57468BBRACKET, FRONT SEAT, REAR

main57468-90A01iHJ60..LHD..MTM..LUB198708-199001

OUTER

main57468-90A02iHJ60..HRF..LUB198708-199001

INNER

57483RETAINER, DIFFERENTIAL LOCK LEVER SUPPORT

main57483-90A00iFJ62;HJ61..VX;HJ6#..SOB..GX198708-199001

W(REAR HEATER)

main57483-90A00iHJ6#..LHD..MTM..LUB..GX198708-199001

57511REINFORCEMENT, FRONT FLOOR, CENTER

main57511-90A03iFJ62,HJ61;HJ60..MTM198708-199001

58111PAN, FRONT FLOOR

main58111-90A42iHJ6#..LHD..MTM198708-199001

main58111-90A43iHJ61..VX;HJ60..SOB..GX198708-199001

W(PTO)

main58111-90A43iHJ61..VX;HJ60..SOB..GX198708-199001

W(WINCH) OR W(PTO)

main58111-90A46iFJ62198708-199001

main58111-90A47iHJ60..ATM198708-199001

W(PTO)

main58111-90A50iHJ60..RHD198708-199001

58119CCUSHION, FRONT FLOOR

main58119-90A00iFJ62198808-199001

58169ARETAINER, REAR HEATER MOUNTING

main58169-90A00iHJ6#..LHD..MTM..SRF..LUB..GX198708-199001

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-90A00iHJ60..ATM198708-199001

58188ABRACKET, ACCELERATOR PEDAL STOPPER

main58188-90A02iHJ60..RHD198708-199001

main58188-90A03iFJ62,HJ61;HJ60..LHD..MTM198708-199001

58191FOOTREST, FRONT FLOOR

main58192-90A00iFJ62,HJ60..ATM198708-199001

58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

main58203-90A00iFJ62,HJ6#198708-199001

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58204-90A00iFJ62,HJ6#198708-199001

58208PAN, CENTER FLOOR

main58211-90A21iFJ62,HJ61..GX;HJ60..MTM..SRF198708-199001

main58211-90A22iHJ61..VX;HJ60..HRF198708-199001

main58211-90A23iHJ60..RHD198708-199001

W(DEFFERENTIAL LOCK)

main58211-90A24iHJ60..STD198708-199001

W(DEFFERENTIAL LOCK)

main58211-90A24iFJ62;HJ6#..SRF..SOB..GX198708-199001

W(DIFFERENTIAL LOCK)

main58211-90A25iHJ60..RHD198708-199001

W(REAR HEATER)

main58211-90A26iHJ60..ATM198708-199001

W(REAR HEATER)

main58211-90A27iHJ60..RHD198708-199001

W(DEFFERENTIAL LOCK & REAR HEATER)

main58211-90A28iHJ60..ATM198708-199001

W(DEFFERENTIAL LOCK)

main58211-90A28iHJ60..ATM198708-199001

W(DEFFERENTIAL LOCK & REAR HEATER)

main58211-90A30iHJ61..VX;HJ60..HRF..SOB198708-199001

W(DEFFERENTIAL LOCK)

main58211-90A32iHJ61..VX;HJ60..HRF198708-199001

W(REAR HEATER)

main58211-90A34iHJ61..VX;HJ60..HRF198708-199001

W(DEFFERENTIAL LOCK & REAR HEATER)

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-90A00iFJ62,HJ6#..SRF..(GX,STD)198708-199001

58248REINFORCEMENT, REAR SEAT CUSHION LOCK

main58248-90A00iFJ62,HJ6#..SRF..(GX,STD)198708-199001

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-90A00iFJ62,HJ6#..SRF..(GX,STD)198708-199001

58262COVER, TRANSMISSION

main58261-90A03iHJ6#..MTM198708-199001

main58261-90A04iHJ60..ATM198708-199001

main58261-90A06iFJ62198808-199001

58263DPACKING, TRANSMISSION COVER

main58263-90A02iFJ62,HJ6#198708-199001

58268BSEAL, TRANSFER LEVER BOOT

main58268-90A05iFJ62,HJ6#198708-199001

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-90A04iHJ6#..MTM198708-199001

58291BBOOT, TRANSFER SHIFT LEVER

main58290-90A04iFJ62,HJ6#198708-198901

sub58290-90A05

main58290-90A05iFJ62,HJ6#198901-199001

58563PSILENCER, FRONT FLOOR

main58563-90A00iFJ62198808-199001

58754PLATE, ENGINE SERVICE COVER CATCH

main58754-90A00iHJ6#198708-199001

58845RETAINER, WINCH LEVER BOOT

main58845-90A01iHJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB198708-199001

58846COVER, WINCH LEVER

main58846-90A01iHJ60..ATM198708-199001

58847ASEAL, WINCH LEVER

main58847-90A01iHJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB198708-199001

58854ABOOT, WINCH LEVER

main58854-90A01iHJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB198708-199001

59192BRACKET, NOISE SHUTTER, NO.2

main59192-90A00iFJ62198808-199001

59195AINSULATOR, NOISE SHUTTER

main59195-90A00iFJ62198808-199001

59196BINSULATOR, NOISE SHUTTER, LH

main59196-90A01iFJ62198808-199001

59289SILENCER, TRANSMISSION COVER

main59289-90A00iFJ62198808-199001

9015960038

main90159-60038

9017605012

main90176-05012

9017906097

main90179-06097

9018906029

main90189-06029

9046108520

main90461-08520

9046708011

main90467-08011

9046708156

main90467-08156

9046713035

main90467-13035

9162140616

main91621-40616

9162140620

main91621-40620

44 parts on this diagram · 3 diagrams in section
