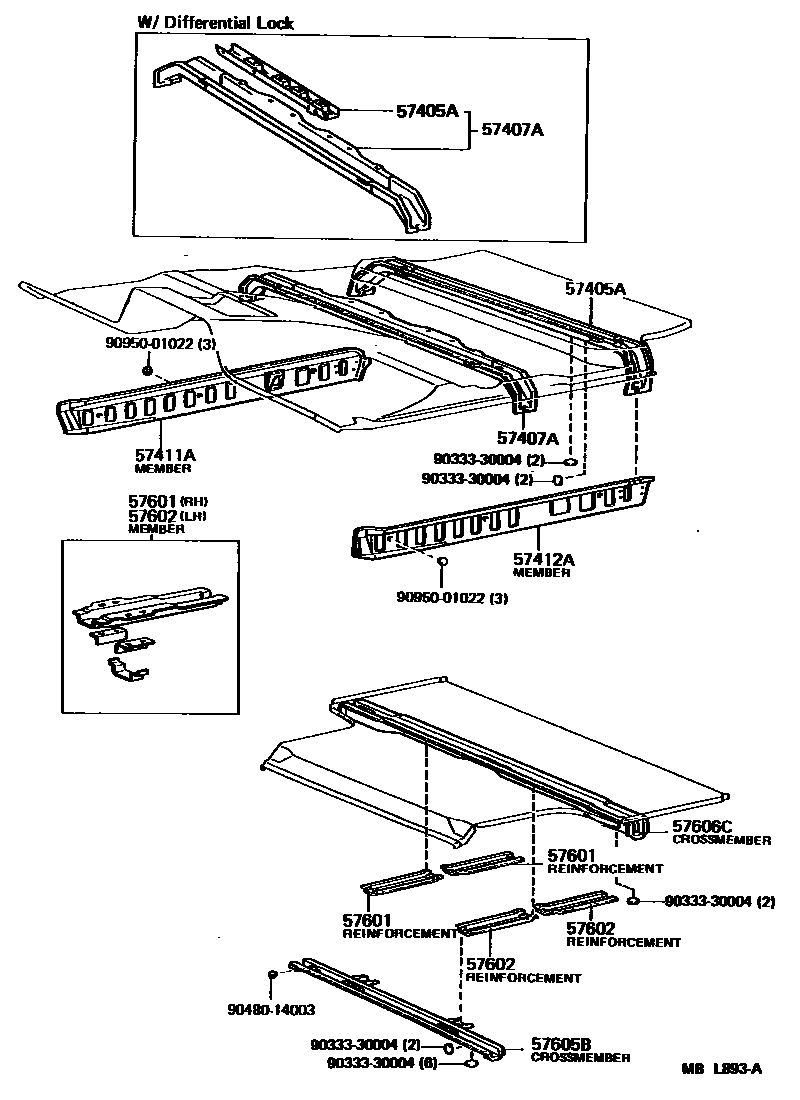

FLOOR MEMBER

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-90A07iFJ62,HJ6#198708-199001

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-90A37iHJ6#..LHD..MTM..LUB..GX198708-199001

W(BENCH SEAT)

sub57407-90A40

main57407-90A38iHJ6#..LHD..MTM..LUB..GX198708-199001

W(DEFFERENTIAL LOCK & BENCH SEAT)

sub57407-90A40

main57407-90A39iHJ61..LUB..GX198708-199001

W(BENCH SEAT & REAR HEATER)

sub57407-90A40

main57407-90A40iHJ6#..LHD..MTM..LUB..GX198708-199001

W(DEFFERENTIAL LOCK & BENCH SEAT & REAR HEATER)

main57407-90A43iFJ62,HJ6#198708-199001

sub57407-90A40

main57407-90A44iHJ60..RHD198708-199001

W(DEFFERENTIAL LOCK)

main57407-90A46iHJ61..VX;HJ6#..SOB..GX198708-199001

W(DEFFERENTIAL LOCK)

sub57407-90A40

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-90A05iFJ62,HJ6#198708-199001

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-90A05iFJ62,HJ6#198708-199001

sub57402-90A06

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-90A02iHJ60..HRF..LUB198708-199001

main57635-90A03iFJ62,HJ6#..SRF;HJ60..HRF..SOB198708-199001

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-90A01iHJ60..HRF..LUB198708-199001

main57635-90A03iFJ62,HJ6#..SRF;HJ60..HRF..SOB198708-199001

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-90A02iFJ62,HJ6#198708-199001

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-90A07iHJ61..VX198708-199001

main57606-90A08iHJ60..HRF..LUB198708-199001

main57606-90A09iHJ60..HRF..SOB;FJ62,HJ6#..SRF..(GX,STD)198708-199001

9033330004

main90333-30004

9048014003

main90480-14003

9095001022

main90950-01022

11 parts on this diagram · 1 diagram in section
