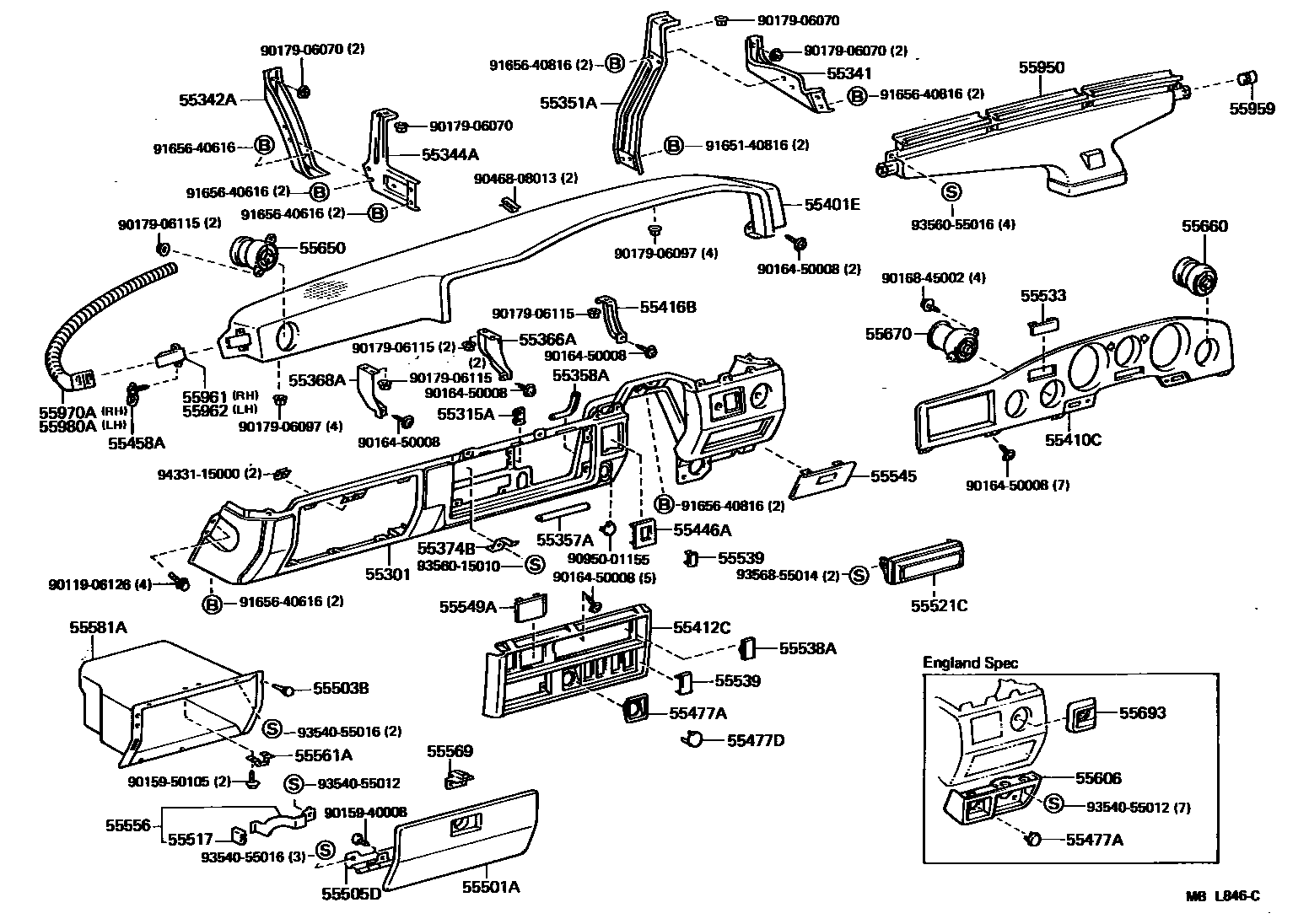

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-90A72-03iHJ60..RHD198708-199001

SHADOW GRAY,TRIM1#

main55301-90A72-05iHJ60..RHD198708-199001

SEPIA BROWN,TRIM4#

main55301-90A73-03iHJ60..RHD198708-199001

UNITED KINGDOM SPEC,SHADOW GRAY,TRIM1#

main55301-90A73-05iHJ60..RHD198708-199001

UNITED KINGDOM SPEC,SEPIA BROWN,TRIM4#

main55301-90A77-03iFJ62,HJ6#..LHD..(GX,VX)198708-199001

SHADOW GRAY,TRIM1#

main55301-90A77-05iFJ62,HJ6#..LHD198708-199001

SEPIA BROWN,TRIM4#

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-90A00iFJ62,HJ6#¥230198708-199001

55341BRACE, INSTRUMENT PANEL, NO.1

main55341-90A01iHJ60..RHD¥7,200198708-199001

main55341-90A02iFJ62¥7,200198808-199001

main55341-90A03iHJ6#..LHD198708-199001

55342ABRACE, INSTRUMENT PANEL TO COWL, NO.2

main55342-90A00iHJ60..RHD¥3,910198708-199001

main55342-90A01iFJ62,HJ6#..LHD¥3,910198708-199001

55344ABRACE, INSTRUMENT PANEL TO COWL, NO.3

main55344-90A00iHJ60..RHD¥4,440198708-199001

main55344-90A01iFJ62,HJ6#..LHD¥4,440198708-199001

55351ABRACE, INSTRUMENT PANEL TO FLOOR

main55351-90A02iHJ60..RHD¥6,100198708-199001

main55351-90A03iFJ62,HJ6#..LHD¥6,600198708-199001

55357APROTECTOR, EDGE, NO.1

main55357-90A00iFJ62,HJ6#¥320198708-199001

55358APROTECTOR, EDGE, NO.2

main55358-90A01iHJ60..RHD198708-199001

55366ABRACKET, RADIO MOUNTING, NO.1

main55366-90A02iFJ62,HJ6#¥4,350198708-199001

55368ABRACKET, RADIO MOUNTING, NO.2

main55368-90A03iFJ62,HJ6#¥4,400198708-199001

55374BBRACKET, INSTRUMENT PANEL

main55374-90A00iHJ60..RHD¥300198708-199001

main55374-90A01iFJ62,HJ6#..LHD¥270198708-199001

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-90A04-03iHJ60..RHD198708-199001

SHADOW GRAY,TRIM1#

main55401-90A04-05iHJ60..RHD198708-199001

SEPIA BROWN,TRIM4#

main55401-90A05-03iHJ60..ATM198708-199001

SHADOW GRAY,TRIM1#

sub55401-90A05¥42,400

main55401-90A05-05iHJ60..ATM198708-199001

SEPIA BROWN,TRIM4#

sub55401-90A05¥42,400

main55401-90A06-03iHJ60..RHD198708-198710

COLD SPEC,SHADOW GRAY,TRIM1#

sub55401-90A04¥42,800

main55401-90A06-05iHJ60..RHD198708-198710

COLD SPEC,SEPIA BROWN,TRIM4#

sub55401-90A04¥42,800

main55401-90A07-03iHJ60..ATM198708-198710

COLD SPEC,SHADOW GRAY,TRIM1#

sub55401-90A05¥42,400

main55401-90A07-03iHJ6#..LHD..MTM..(GX,VX)198708-198710

SHADOW GRAY,TRIM1#

sub55401-90A05¥42,400

main55401-90A07-05iHJ60..ATM198708-198710

SEPIA BROWN,TRIM4#

sub55401-90A05¥42,400

main55401-90A07-05iHJ60..ATM198708-198710

COLD SPEC,SEPIA BROWN,TRIM4#

sub55401-90A05¥42,400

55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH

main55410-90G26iHJ60..RHD¥9,300198708-199001

main55410-90G28iFJ62,HJ6#..LHD¥9,100198708-199001

W(RADIO)

main55410-90G29iFJ62,HJ6#..LHD¥9,300198708-199001

55412CPANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1

main55412-90A09-03iHJ60..RHD198708-199001

SHADOW GRAY,TRIM1#

main55412-90A09-05iHJ60..RHD198708-199001

SEPIA BROWN,TRIM4#

main55412-90A10-03iFJ62,HJ6#..LHD..(GX,VX)198708-199001

SHADOW GRAY,TRIM1#

main55412-90A10-05iFJ62,HJ6#..LHD198708-199001

SEPIA BROWN,TRIM4#

55416BBRACKET, INSTRUMENT PAD, NO.2

main55416-90A00iHJ60..RHD¥3,640198708-199001

main55416-90A01iFJ62,HJ6#..LHD¥3,610198708-199001

55446ABASE, SWITCH HOLE, NO.1

main55446-90A01-06iHJ6#..MTM198708-199001

SEPIA BROWN,TRIM4#

sub55446-90A01¥2,520

main55446-90A01-13iHJ6#..MTM..(GX,VX)198708-199001

SHADOW GRAY,TRIM1#

sub55446-90A01¥2,520

main55446-90A02-06iFJ62,HJ60..ATM198708-199001

SEPIA BROWN,TRIM4#

sub55446-90A02¥2,520

main55446-90A02-06iFJ62,HJ60..ATM198708-199001

W(ONE TOUCH 2-4 SELECTOR),SEPIA BROWN,TRIM4#

sub55446-90A02¥2,520

main55446-90A02-13iHJ6#..MTM..(GX,VX)198708-199001

W(ONE TOUCH 2-4 SELECTOR),SHADOW GRAY,TRIM1#

sub55446-90A02¥2,520

main55446-90A02-13iFJ62,HJ60..ATM198708-199001

SHADOW GRAY,TRIM1#

sub55446-90A02¥2,520

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-90A00iFJ62,HJ6#¥260198708-199001

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-10010-01iHJ60..RHD198708-199001

BLACK,TRIM1#,4#

sub55477-10010¥370

main55477-87001iFJ62¥1,200198808-199001

main55477-90A02iHJ6#..GX,VX¥310198708-199001

55477DCOVER, CIGARETTE LIGHTER HOLE

main55477-10010-01iHJ60..STD198708-199001

BLACK,TRIM4#

sub55477-10010¥370

55501ADOOR SUB-ASSY, GLOVE COMPARTMENT

main55501-90A00-06iFJ62,HJ6#198708-199001

SEPIA BROWN,TRIM4#

sub55501-90A00¥10,800

main55501-90A00-23iFJ62,HJ6#..GX,VX198708-199001

SHADOW GRAY,TRIM1#

sub55501-90A00¥10,800

55503BCUSHION(FOR GLOVE COMPARTMENT)

main90541-03015iFJ62,HJ6#¥110198708-199001

55505DHINGE SUB-ASSY, GLOVE COMPARTMENT DOOR

main55505-90A00iFJ62,HJ6#¥3,050198708-199001

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iFJ62,HJ6#¥230198708-199001

55521CCOVER, STEREO OPENING

main55521-14050-01iFJ62,HJ6#..LHD198708-199001

BLACK,TRIM1#,4#

sub55521-14050¥1,610

main55521-20110iFJ62,HJ6#..LHD¥1,540198708-199001

main55521-20120iFJ62,HJ6#..LHD¥1,760198708-199001

W(RADIO)

55533COVER, AUTO CLOCK HOLE

main55533-90A00iFJ62,HJ6#..GX,STD¥2,100198708-199001

55538ACOVER, COOLER SWITCH HOLE

main55538-22010iFJ62,HJ6#¥300198708-199001

55539COVER, SPARE SWITCH HOLE

main55539-32010-01iHJ60..STD198708-198712

BLACK,TRIM1#,4#

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-01iHJ6#198708-198712

BLACK,TRIM4#

sub55539-32010¥460

sub55539-32030¥470

55545COVER, FUSE BOX OPENING

main55545-90A01-03iFJ62,HJ6#..GX,VX198708-199001

SHADOW GRAY,TRIM1#

sub55545-90A01¥2,060

main55545-90A01-06iFJ62,HJ6#198708-199001

SEPIA BROWN,TRIM4#

sub55545-90A01¥2,060

55549ACOVER, REAR COOLER SWITCH HOLE

main55549-90A00iFJ62,HJ6#¥590198708-199001

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-90A00iHJ60..RHD¥2,250198708-199001

main55556-90A01iFJ62,HJ6#..LHD¥2,220198708-199001

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-90A00iFJ62,HJ6#¥680198708-199001

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-90A00-06iFJ62,HJ6#198708-199001

SEPIA BROWN,TRIM4#

sub55569-90A00¥670

main55569-90A00-23iFJ62,HJ6#..GX,VX198708-199001

SHADOW GRAY,TRIM1#

sub55569-90A00¥670

55581ACOMPARTMENT, GLOVE

main55581-90A04iHJ60..RHD¥4,910198708-199001

main55581-90A05iHJ6#..LHD¥4,850198708-199001

main55581-90A06iFJ62¥4,910198808-199001

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55641-90A00-06iHJ60..RHD198708-199001

SEPIA BROWN,TRIM4#

sub55641-90A00¥4,800

main55641-90A00-13iHJ60..RHD198708-199001

SHADOW GRAY,TRIM1#

sub55641-90A00¥4,800

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-90A02iFJ62,HJ6#¥4,120198708-199001

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-90A00iFJ62,HJ6#¥4,120198708-199001

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-90A02iFJ62,HJ6#¥4,120198708-199001

55693PROTECTOR, CONTROL KNOB, NO.1

main55693-90A00-06iHJ60..RHD198708-199001

SEPIA BROWN,TRIM4#

sub55693-90A00¥800

main55693-90A00-13iHJ60..RHD198708-199001

SHADOW GRAY,TRIM1#

sub55693-90A00¥800

55950NOZZLE ASSY, DEFROSTER

main55950-90A00iHJ60..RHD¥4,420198708-198805

sub55950-90A02¥4,440

main55950-90A01iHJ6#..LHD¥4,420198708-198805

sub55950-90A03¥4,410

main55950-90A02iHJ60..RHD¥4,440198805-199001

main55950-90A03iFJ62,HJ6#..LHD¥4,410198805-199001

55959COVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-14010iFJ62,HJ61;HJ60..MTM¥180198708-199001

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-90A00-03iFJ62198708-199001

GRAY,TRIM1#

sub55961-90A00¥1,870

main55961-90A00-16iFJ62198708-199001

SEPIA BROWN,TRIM4#

sub55961-90A00¥1,870

55962NOZZLE, SIDE DEFROSTER, NO.2

main55961-90A00-03iFJ62198708-199001

GRAY,TRIM1#

sub55961-90A00¥1,870

main55961-90A00-16iFJ62198708-199001

SEPIA BROWN,TRIM4#

sub55961-90A00¥1,870

55970ADUCT ASSY, SIDE DEFROSTER, RH

main55970-90A00iFJ62¥2,760198708-199001

55980ADUCT ASSY, SIDE DEFROSTER, LH

main55980-90A00iFJ62¥2,760198708-199001

9011906126

main90119-06126¥70

9015940008

main90159-40008¥190

9015950105

main90159-50105¥90

9016450008

main90164-50008¥90

9016845002

main90168-45002¥130

9017906070

main90179-06070¥180

9017906097

main90179-06097¥320

9017906115

main90179-06115¥120

9046808013

main90468-08013¥180

9095001155

main90950-01155¥310

9165140816

main91651-40816¥80

9165640616

main91656-40616¥100

9165640816

main91656-40816¥140

9354055012

main93540-55012¥60

9354055016

main93540-55016¥70

9356015010

main93560-15010¥80

9356055016

main93560-55016¥70

9356855014

main93568-55014¥70

9433115000

main94331-15000¥190

9617906070

main96179-06070

64 parts on this diagram · 2 diagrams in section
