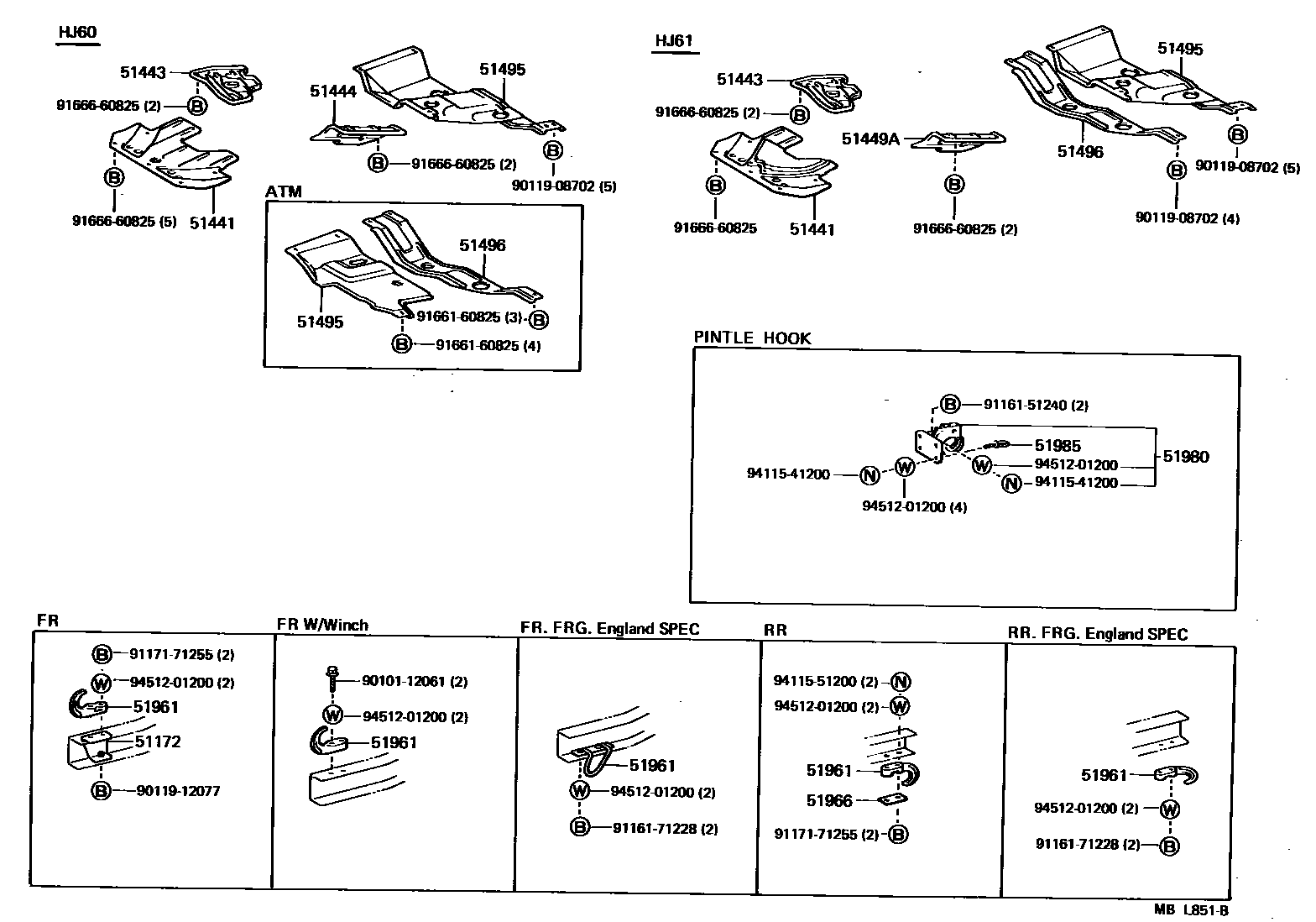

SUSPENSION CROSSMEMBER & UNDER COVER

51172REINFORCEMENT, SIDE RAIL FRONT HOOK

main51172-60010iFJ62,HJ6#198708-199001

51441COVER, ENGINE UNDER, NO.1

main51440-60020iHJ61198708-199001

main51441-60061iFJ62,HJ60198708-199001

51443COVER, ENGINE UNDER, REAR RH

main51443-60100iHJ6#198708-199001

51444COVER, ENGINE UNDER, REAR LH

main51444-60070iHJ60198708-199001

51449ACOVER, ENGINE SIDE UNDER, LH

main51450-60010iHJ61198708-199001

51495COVER, TRANSMISSION UNDER

main51495-60142iHJ60..ATM198708-199001

main51495-60230iFJ62198808-199001

main58208-60040iHJ60..MTM198708-199001

main58270-60061iHJ61198708-199001

51496COVER, TRANSMISSION UNDER, NO.2

main51496-60041iHJ60..ATM198708-199001

main58260-60020iHJ61198708-199001

51961HOOK, NO.1

main51961-36040iFJ62,HJ6#198708-199001

RR

main51961-60010iFJ62198708-199001

W(WINCH),FR

main51961-60030iHJ60..RHD198708-199001

main51961-60040iFJ62,HJ6#198708-199001

FR

51966RETAINER, REAR HOOK

main51966-60010iFJ62,HJ6#198708-199001

51980HOOK ASSY, PINTLE

main51980-60010iFJ62,HJ6#198708-199001

sub51980-60011

51985HOOK, EYELET PINTLE

main51985-60011iFJ62,HJ6#198708-199001

9010112061

main90101-12061

9011908702

main90119-08702

9011912077

main90119-12077

9116151240

main91161-51240

9116171228

main91161-71228

9117171255

main91171-71255

9166160825

main91661-60825

9166660825

main91666-60825

9411541200

main94115-41200

9411551200

main94115-51200

9451201200

main94512-01200

22 parts on this diagram · 1 diagram in section
