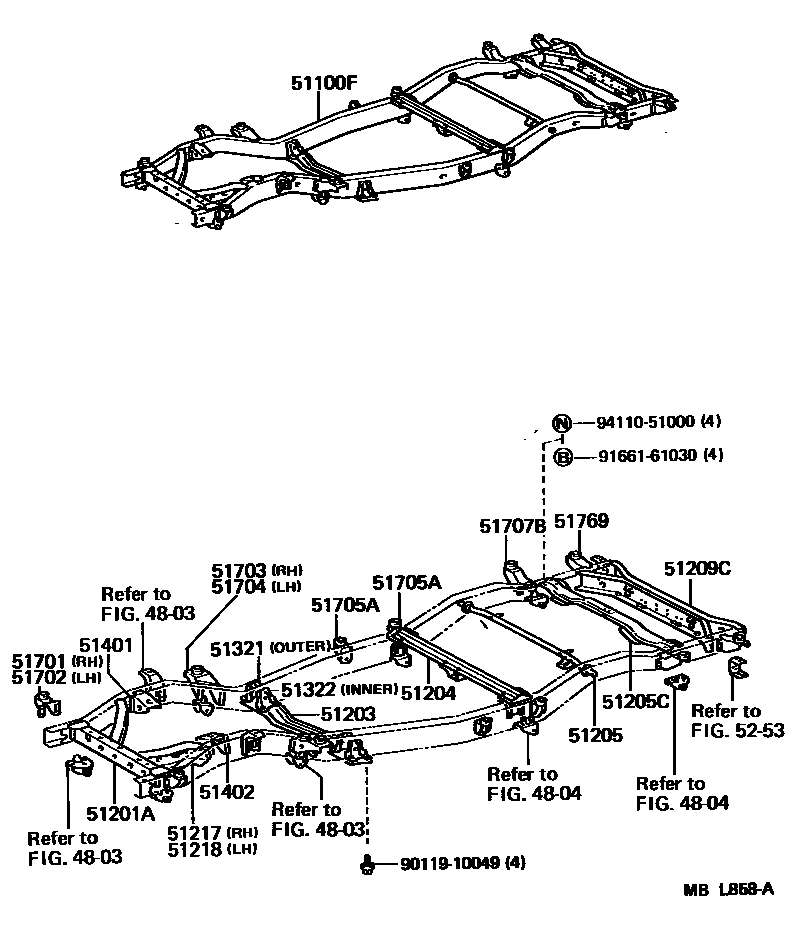

FRAME

4803

4804

51100FFRAME SUB-ASSY

main51001-60594iHJ60..RHD198708-199001

main51001-60604iHJ6#..LHD..MTM198708-199001

main51001-60663iHJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB198708-199001

W(WINCH)

main51002-60432iFJ62198808-199001

main51002-60452iHJ60..ATM198708-199001

main51002-60471iFJ62198808-199001

W(WINCH)

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51201-60080iFJ62,HJ6#198708-199001

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-60073iHJ6#..MTM198708-199001

main51202-60151iFJ62,HJ60..ATM198708-199001

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-60102iFJ62,HJ6#198708-199001

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-60052iFJ62,HJ6#198708-199001

51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-60010iFJ62,HJ6#198708-199001

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-60090iFJ62,HJ6#198708-199001

51217REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH

main51217-60011iFJ62,HJ6#198708-199001

51218REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH

main51218-60011iFJ62,HJ6#198708-199001

51321GUSSET, CROSSMEMBER, NO.2 RH

main51321-60011iHJ6#..MTM198708-199001

main51321-60030iFJ62,HJ60..ATM198708-199001

sub51321-60031

51322GUSSET, CROSSMEMBER, NO.2 LH

main51322-60011iHJ6#..MTM198708-199001

main51322-60030iFJ62,HJ60..ATM198708-199001

sub51322-60031

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-60021iHJ6#198708-199001

main51421-60041iFJ62198808-199001

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51422-60041iFJ62198808-199001

main51422-60052iHJ6#198708-199001

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-60051iFJ62,HJ6#198708-199001

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51702-60020iFJ62,HJ6#198708-199001

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-60020iFJ62,HJ6#198708-199001

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-60010iFJ62,HJ6#198708-199001

51705ABRACKET SUB-ASSY, CAB MOUNTING, NO.3

main51705-60062iFJ62,HJ6#198708-199001

FRONT

main51705-60110iFJ62,HJ6#198708-199001

REAR

51707BBRACKET SUB-ASSY, CAB MOUNTING, NO.4

main51707-60030iFJ62,HJ6#198708-199001

51769BRACKET, BODY REAR END MOUNTING

main51709-60020iFJ62,HJ6#198708-199001

5253

9011910049

main90119-10049

9166161030

main91661-61030

9411051000

main94110-51000

26 parts on this diagram · 1 diagram in section
