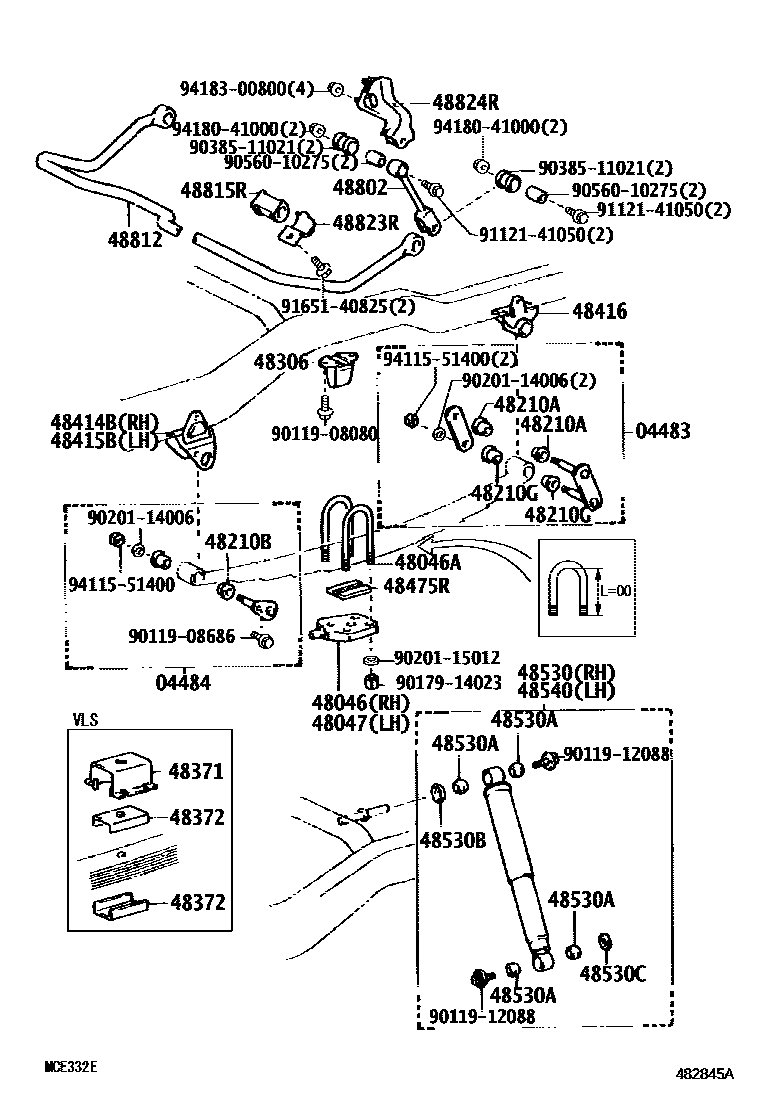

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

04483SHACKLE KIT, REAR SPRING

main04483-60050iFJ62,HJ6#198708-199001

sub04483-60101

04484PIN KIT, REAR SPRING

main04482-60040iFJ62,HJ6#198708-199001

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-60042iHJ60..STD198708-199001

main48046-60052iFJ62,HJ6#..GX,VX198708-199001

48046ABOLT, U(FOR REAR SPRING)

main90117-14021iHJ60..STD198708-199001

L=190

main90117-14032iFJ62,HJ6#..GX,VX198708-199001

L=200

main90117-14179iHJ60..STD198708-199001

L=195

sub90117-14032

main90117-14180iFJ62,HJ6#..GX,VX198708-199001

L=205

sub90117-14002

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-60042iHJ60..STD198708-199001

main48047-60052iFJ62,HJ6#..GX,VX198708-199001

48210SPRING ASSY, REAR RH

main48210-60440iHJ60..STD198708-198803

sub48210-60441

main48210-60441iHJ60..STD198803-199001

main48210-60650iHJ60..HRF..SOB;HJ6#..LHD..SRF..(GX,VX)198708-198803

sub48210-60651

main48210-60651iHJ60..HRF..SOB;FJ62,HJ6#..LHD..SRF..(GX,VX)198803-199001

main48210-60660iHJ60..RHD;HJ60..HRF..LUB198708-198803

8-LAEF

sub48210-60661

main48210-60661iHJ60..RHD;HJ60..HRF..LUB198803-199001

main48210-60670iHJ60..HRF..SOB;HJ6#..LHD..SRF..(GX,VX)198708-198803

W(7JJ-15 DISC WHEEL)

sub48210-60671

main48210-60671iHJ60..HRF..SOB;HJ6#..LHD..SRF..(GX,VX)198803-199001

W(7JJ-15 DISC WHEEL)

main48210-60680iHJ60..HRF..LUB198708-198803

8-LAEF,W(7JJ-15 DISC WHEEL)

sub48210-60681

main48210-60681iHJ60..HRF..LUB198803-199001

8-LAEF,W(7JJ-15 DISC WHEEL)

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90389-18002iFJ62,HJ6#198708-199001

48210BBUSH(FOR REAR SPRING PIN)

main90389-18002iFJ62,HJ6#198708-199001

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90389-18002iFJ62,HJ6#198708-199001

48306BUMPER SUB-ASSY, REAR SPRING

main48306-60030iFJ62,HJ6#198708-199001

main48306-60050iFJ62,HJ6#..LHD..(GX,VX)198708-199001

W(7JJ-15 DISC WHEEL)

48371RETAINER, REAR SPRING PAD

main48371-60050iFJ62,HJ6#..GX,VX198708-199001

48372PAD, REAR SPRING

main48372-23030iFJ62,HJ6#..GX,VX198708-199001

48414BBRACKET, SPRING, NO.3 RH

main48414-60042iFJ62,HJ6#198708-199001

48415BBRACKET, SPRING, NO.3 LH

main48415-60042iFJ62,HJ6#198708-199001

48416BRACKET, SPRING, NO.4

main48416-60030iFJ62,HJ6#198708-199001

48475RPLATE, DISTANCE(FOR REAR)

main48475-60020iHJ60..STD198708-199001

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-69105iFJ62,HJ6#..GX,VX198708-199001

MARK 48531-60190

sub48531-69106

main48531-69115iHJ60..STD198708-199001

MARK 48531-60220

sub48531-69116

main48531-69125iFJ62,HJ6#..LHD..(GX,VX)198708-199001

W(7JJ-15 DISC WHEEL)

sub48531-69126

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-19003iHJ60..STD198708-199001

W(7JJ-15 DISC WHEEL)

main90385-19057iFJ62,HJ6#..GX,VX198708-199001

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03011iFJ62,HJ6#198708-199001

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03011iFJ62,HJ6#198708-199001

48540ABSORBER ASSY, SHOCK, REAR LH

main48541-69025iFJ62,HJ6#..GX,VX198708-199001

MARK 48541-60050

sub48541-69026

main48541-69035iHJ60..STD198708-199001

MARK 48541-60040

sub48541-69036

main48541-69045iFJ62,HJ6#..LHD..(GX,VX)198708-199001

W(7JJ-15 DISC WHEEL)

sub48541-69046

48802LINK SUB-ASSY, STABILIZER

main48802-60020iFJ62,HJ6#..GX,VX198708-199001

48812BAR, STABILIZER, REAR

main48812-60040iFJ62,HJ6#..GX,VX198708-199001

48815RBUSH, STABILIZER(FOR REAR)

main48815-30050iFJ62,HJ6#..GX,VX198708-199001

48823RCOVER, STABILIZER LINK(FOR REAR)

main48823-27010iFJ62,HJ6#..GX,VX198708-199001

48824RBRACKET, STABILIZER(FOR REAR)

main48825-60031iFJ62,HJ6#..GX,VX198708-199001

9011908080

main90119-08080

9011908686

main90119-08686

9011912088

main90119-12088

9017914023

main90179-14023

9020114006

main90201-14006

9020115012

main90201-15012

9038511021

main90385-11021

9056010275

main90560-10275

9112141050

main91121-41050

9165140825

main91651-40825

9411551400

main94115-51400

9418041000

main94180-41000

9418300800

main94183-00800

39 parts on this diagram · 3 diagrams in section
