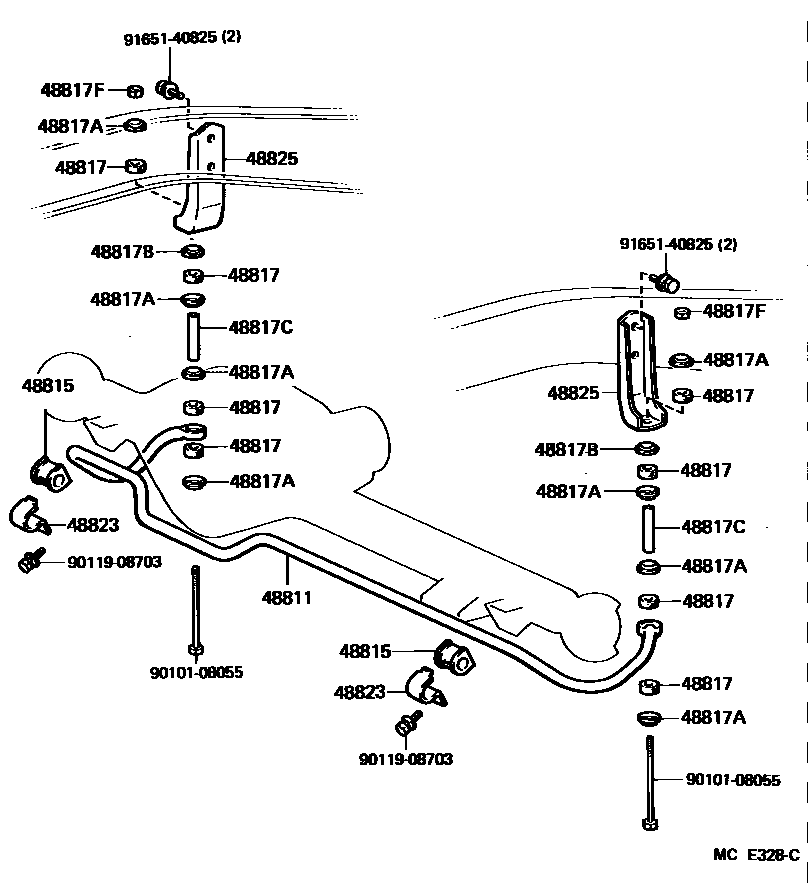

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

48811BAR, STABILIZER, FRONT

main48811-60031iHJ60..STD198708-199001

main48811-60070iFJ62,HJ6#..GX,VX198708-199001

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-20060iFJ62,HJ6#..GX,VX198708-199001

main48815-30050iHJ60..STD198708-199001

48817CUSHION, FRONT STABILIZER

main48817-30010iFJ62,HJ6#198708-199001

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032iFJ62,HJ6#198708-199001

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iFJ62,HJ6#198708-199001

48817CCOLLAR(FOR STABILIZER BAR)

main90387-09006iFJ62,HJ6#198708-199001

48817FNUT(FOR FRONT STABILIZER BAR)

main94183-60800iFJ62,HJ6#198708-199001

48823COVER, STABILIZER LINK(FOR FRONT)

main48823-27010iFJ62,HJ6#198708-199001

48825BRACKET, STABILIZER, NO.2

main48825-60010iFJ62,HJ6#198708-199001

9010108055

main90101-08055

9011908703

main90119-08703

9165140825

main91651-40825

12 parts on this diagram · 3 diagrams in section
