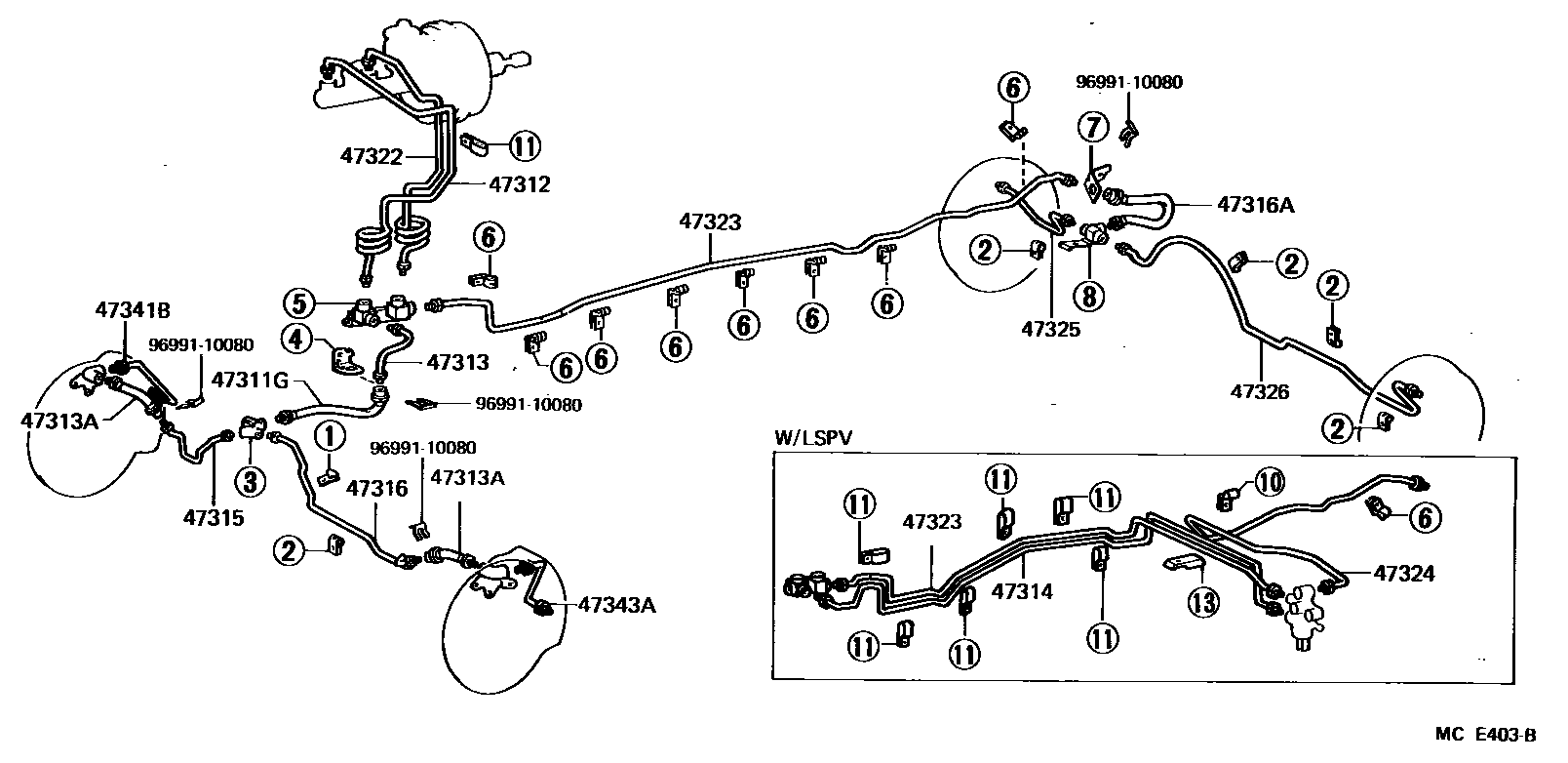

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main96940-33005iFJ62,HJ6#198708-199001

47312TUBE, FRONT BRAKE, NO.2

main47312-60181iHJ60..RHD198708-199001

main47312-60202iHJ6#..LHD198708-199001

main47312-60610iFJ62198808-199001

47313TUBE, FRONT BRAKE, NO.3

main47313-60180iFJ62,HJ6#198708-199001

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main96940-39855iFJ62,HJ6#198708-199001

47314TUBE, FRONT BRAKE, NO.4

main47314-60180iFJ62,HJ6#198708-199001

47315TUBE, FRONT BRAKE, NO.5

main47315-60340iFJ62,HJ6#198708-199001

47316TUBE, FRONT BRAKE, NO.6

main47316-60310iFJ62,HJ6#198708-199001

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-33805iFJ62,HJ6#198708-199001

47322TUBE, REAR BRAKE, NO.2

main47322-60081iHJ60..RHD198708-199001

main47322-60102iHJ6#..LHD198708-199001

main47322-60490iFJ62198808-199001

47323TUBE, REAR BRAKE, NO.3

main47323-60041iFJ62,HJ6#198708-199001

47324TUBE, REAR BRAKE, NO.4

main47324-60021iFJ62,HJ6#198708-199001

47325TUBE, REAR BRAKE, NO.5

main47325-60100iFJ62,HJ6#198708-199001

47326TUBE, REAR BRAKE, NO.6

main47326-60110iFJ62,HJ6#198708-199001

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-60031iFJ62,HJ6#198708-199001

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-60021iFJ62,HJ6#198708-199001

9699110080

main96991-10080

16 parts on this diagram · 6 diagrams in section
