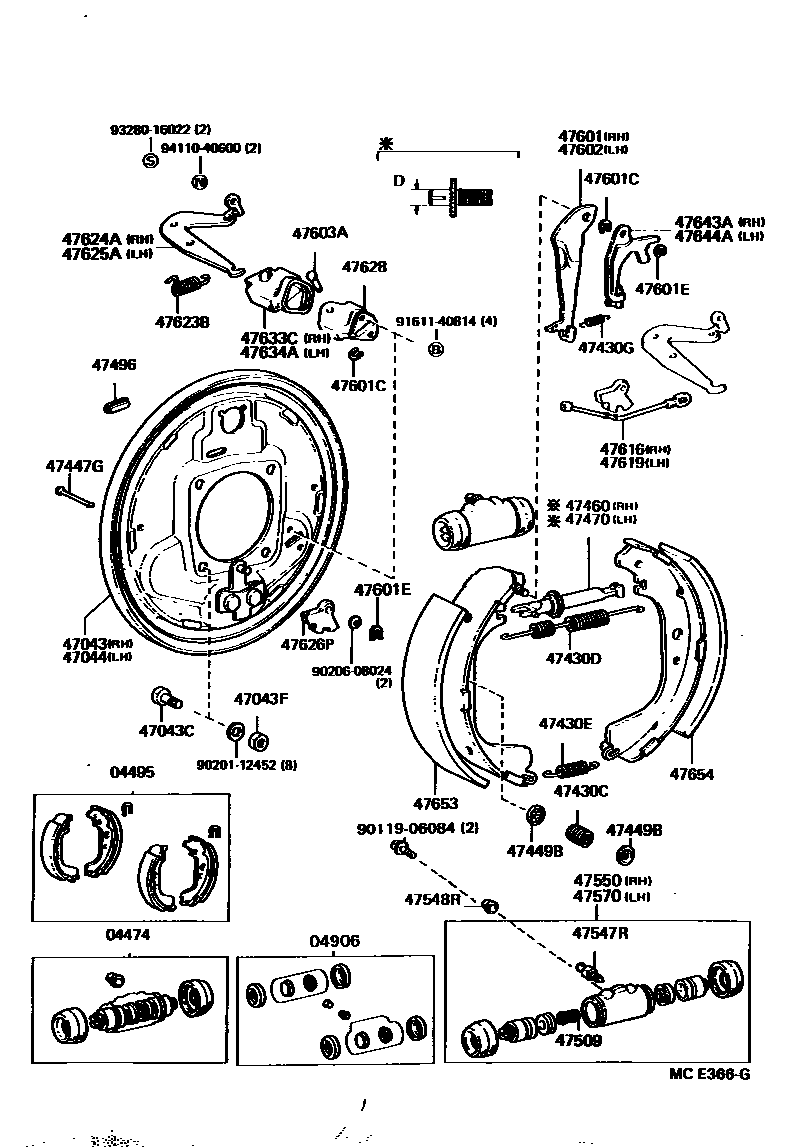

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-60010iFJ62,HJ6#198708-199001

sub04474-35100

sub90029-60009

04495SHOE KIT, REAR BRAKE

main04495-60030iHJ6#198708-198808

sub04495-60031

main04495-60050iHJ6#198801-198809

sub04495-60051

main04495-60051iFJ62,HJ6#198809-199001

sub04495-60060

04906CUP KIT, REAR WHEEL CYLINDER

main04906-35130iFJ62,HJ6#198708-199001

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-60050iFJ62,HJ6#198708-199001

sub47043-60090

main47043-60090iFJ62,HJ6#199001-199001

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90101-12021iFJ62,HJ6#198708-199001

*12-1.25PX33-21

sub90101-12175

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94110-40600iFJ62,HJ6#198708-199001

FOR BELLCRANK

main94115-71200iFJ62,HJ6#198708-199001

FOR BACKING PLATE

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-60010iFJ62,HJ6#198708-199001

sub47044-60040

main47044-60040iFJ62,HJ6#199001-199001

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012iFJ62,HJ6#198708-199001

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26011iFJ62,HJ6#198708-199001

RH

main90506-26014iFJ62,HJ6#198708-199001

LH

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18031iFJ62,HJ6#198708-199001

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12031iFJ62,HJ6#198708-199001

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-60010iFJ62,HJ6#198708-199001

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iFJ62,HJ6#198708-199001

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-60011iFJ62,HJ6#198708-199001

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-60011iFJ62,HJ6#198708-199001

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iFJ62,HJ6#198708-199001

47509SPRING SUB-ASSY, REAR WHEEL CYLINDER PISTON

main47509-60010iFJ62,HJ6#198708-199001

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-60020iFJ62,HJ6#198708-199001

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iFJ62,HJ6#198708-199001

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-60120iFJ62,HJ6#198708-199001

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-60120iFJ62,HJ6#198708-199001

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-60010iFJ62,HJ6#198708-199001

sub47611-35040

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iFJ62,HJ6#198708-199001

T=1.2

main90213-07010iFJ62,HJ6#198708-199001

T=1.6

47601ERING, E(FOR REAR BRAKE)

main96160-00500iHJ6#198801-199001

FOR ADJST LEVER

main96160-00500iHJ6#198708-198808

FOR ADJUST LEVER

main96160-00600iHJ6#198801-199001

FOR SEGMENT PULLEY

main96160-00600iHJ6#198708-198808

FOR SEGMENTAL PULLEY

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47612-60010iFJ62,HJ6#198708-199001

sub47612-35040

47603APIN, W/HOLE(FOR REAR BRAKE)

main90249-08068iFJ62,HJ6#198708-199001

47616WIRE, PARKING BRAKE, RH

main47616-60010iFJ62,HJ6#198708-199001

47619WIRE, PARKING BRAKE, LH

main47616-60010iFJ62,HJ6#198708-199001

47623BSPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN)

main90506-20033iFJ62,HJ6#198708-199001

47624ACRANK, PARKING BRAKE BELL, RH

main47624-60010iFJ62,HJ6#198708-199001

47625ACRANK, PARKING BRAKE BELL, LH

main47625-60010iFJ62,HJ6#198708-199001

47626PPULLEY, PARKING BRAKE SEGMENTAL

main47626-60010iFJ62,HJ6#198708-199001

47628BRACKET, REAR BRAKE BELLCRANK

main47628-35020iFJ62,HJ6#198708-199001

47633CBOOT, REAR BRAKE BELLCRANK, RH

main47633-35020iFJ62,HJ6#198708-199001

47634ABOOT, REAR BRAKE BELLCRANK, LH

main47633-35020iFJ62,HJ6#198708-199001

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-60010iFJ62,HJ6#198708-199001

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-60010iFJ62,HJ6#198708-199001

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47655-60020iHJ6#198708-198808

main47655-60040iHJ6#198801-198808

W(NON ASBESTOS PAD)

main47655-60040iFJ62,HJ6#198808-199001

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47655-60020iHJ6#198708-198808

main47655-60040iHJ6#198801-198808

W(NON ASBESTOS PAD)

main47655-60040iFJ62,HJ6#198808-199001

9011906084

main90119-06084

9020112452

main90201-12452

9020608024

main90206-08024

9161140814

main91611-40814

9328016022

main93280-16022

9411040600

main94110-40600

45 parts on this diagram · 1 diagram in section
