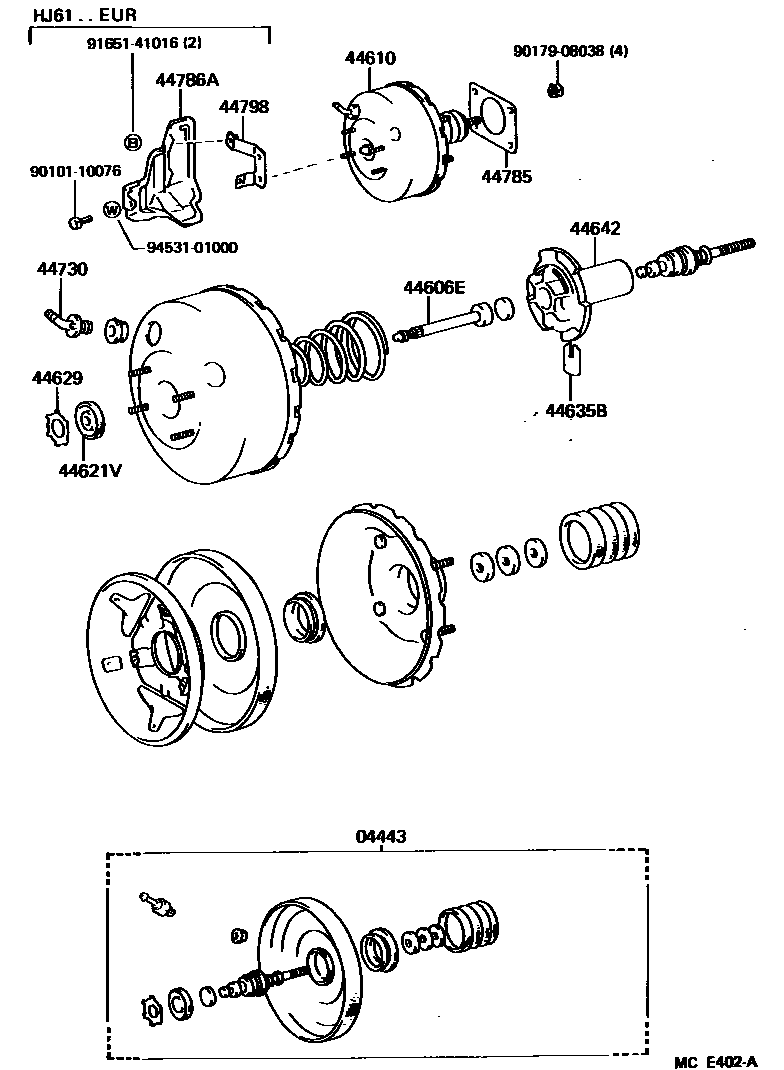

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

04443BOOSTER KIT, BRAKE

main04443-60241iHJ6#198708-199001

main04443-60350iFJ62198808-199001

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-12520iHJ6#198708-199001

main44606-20800iFJ62198808-199001

44610BOOSTER ASSY, BRAKE

main44610-60220iFJ62198808-199001

main44610-60401iHJ60..RHD198708-199001

main44610-60421iHJ6#..LHD198708-199001

44621VSEAL, BOOSTER BODY

main44621-14030iFJ62198808-199001

main44621-28120iHJ6#198708-199001

44629RING, CIRCULAR INTERNAL

main44628-28120iHJ6#198708-199001

main44628-60010iFJ62198808-199001

44635BKEY, VALVE STOPPER

main44635-20800iFJ62198808-199001

main44635-28120iHJ6#198708-199001

44642PISTON, BRAKE BOOSTER

main44642-20800iFJ62198808-199001

main44642-60450iHJ6#198708-199001

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44580-22030iHJ60..ATM198708-199001

BOOSTER SIDE

main44730-60040iHJ60..ATM198708-198808

VACUUM PUMP SIDE

main44730-60050iHJ60..ATM198808-199001

VACUUM PUMP SIDE

44785GASKET, BRAKE BOOSTER

main44785-35020iFJ62,HJ6#198708-199001

44786AINSULATOR, BRAKE BOOSTER HEAT

main44786-60070iHJ61198708-199001

44798BRACKET, HEAT INSULATOR, NO.3

main44798-60020iHJ61198708-199001

9017908038

main90179-08038

9165141016

main91651-41016

9453101000

main94531-01000

9910110076

main99101-10076

15 parts on this diagram · 5 diagrams in section
