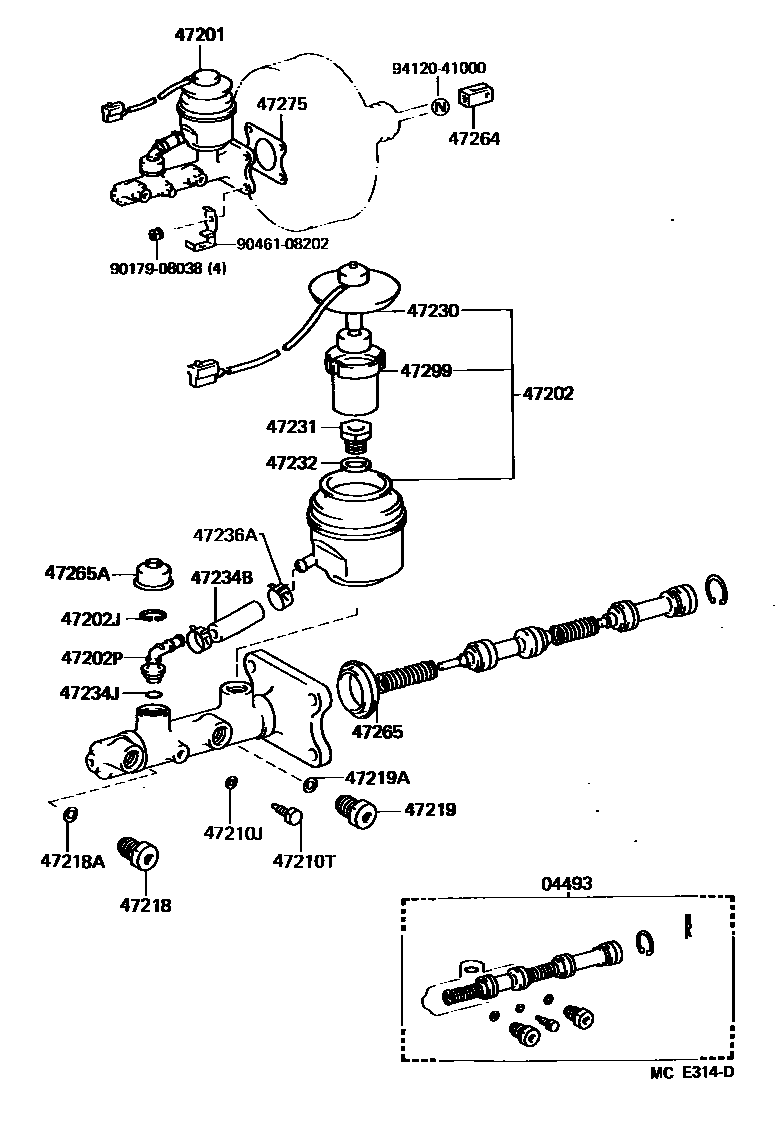

BRAKE MASTER CYLINDER
47201CYLINDER SUB-ASSY, BRAKE MASTER
SWEDEN SPEC
47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
SWEDEN SPEC
47202JRING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)
47210JGASKET(FOR MASTER CYLINDER)
47210TBOLT(FOR BRAKE MASTER CYLINDER)
47218PLUG, MASTER CYLINDER FLUID OUTLET
47218AGASKET(FOR FLUID OUTLET PLUG)
47219PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE)
47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)
47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET
47232WASHER, BRAKE RESERVOIR SET BOLT
47234BTUBE, RESERVOIR, NO.1
47234JRING, O(FOR RESERVOIR TUBE)
47236ACLIP(FOR RESERVOIR TUBE)
sub96134-51500
47264CLEVIS, MASTER CYLINDER PUSH ROD
47265BOOT, MASTER CYLINDER
47265ABOOT, MASTER CYLINDER, NO.1
47275GASKET, BRAKE MASTER CYLINDER
47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR
9017908038
main90179-08038
9046108202
main90461-08202
9412041000
main94120-41000
25 parts on this diagram · 3 diagrams in section
