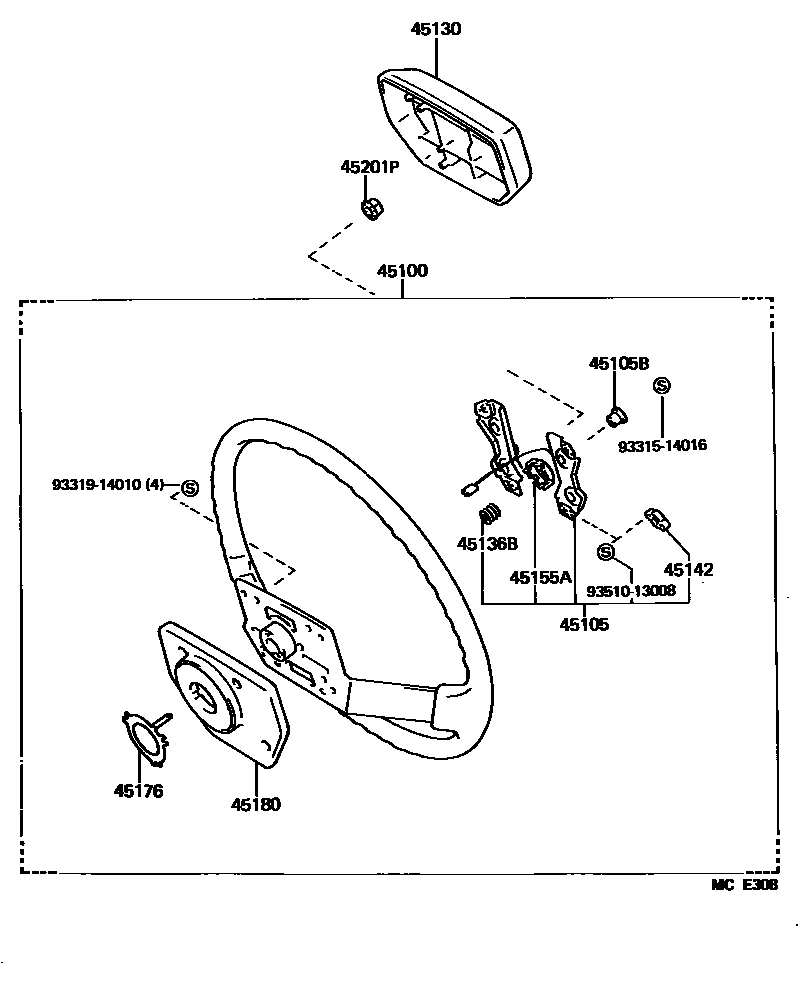

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-60140-03iFJ62,HJ6#..GX,VX198708-199001

SHADOW GRAY,TRIM1#

sub45100-60140

main45100-60140-06iFJ62,HJ6#198708-199001

SEPIA BROWN,TRIM4#

sub45100-60140

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-60040iFJ62,HJ6#198708-199001

45105BSPACER(FOR HORN BUTTON CONTACT PLATE)

main90561-04010iFJ62,HJ6#198708-199001

45130BUTTON ASSY, HORN

main45130-60101-03iFJ62,HJ6#..GX,VX198708-199001

SHADOW GRAY,TRIM1#

sub45130-26230

sub45130-60101

main45130-60101-06iFJ62,HJ6#198708-199001

SEPIA BROWN,TRIM4#

sub45130-26230

sub45130-60101

45136BSPRING, COMPRESSION(FOR HORN BUTTON CONTACT PLATE)

main90501-12099iFJ62,HJ6#198708-199001

45142SEAT, HORN BUTTON CONTACT, NO.1

main45142-12050iFJ62,HJ6#198708-199001

45155ASPACER, HORN CONTACT

main45155-12030iFJ62,HJ6#198708-199001

45176RING, HORN CONTACT

main45176-20030iFJ62,HJ6#198708-199001

45180COVER SUB-ASSY, STEERING WHEEL

main45180-60021iFJ62,HJ6#198708-199001

45201PNUT, STEERING WHEEL SET

main90179-12086iFJ62,HJ6#198708-199001

9331514016

main93315-14016

9331914010

main93319-14010

9351013008

main93510-13008

13 parts on this diagram · 1 diagram in section
