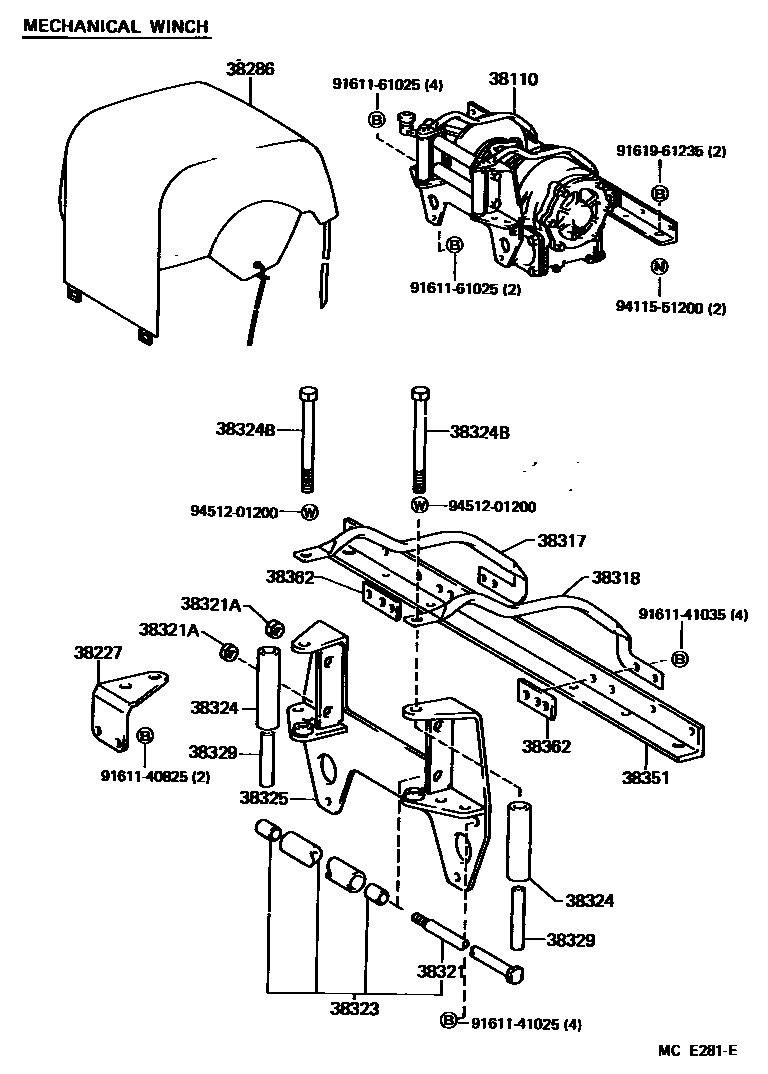

WINCH

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

38110WINCH ASSY

main38110-60140iHJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB198708-199001

main38110-60150iFJ62198808-199001

38227PLATE, WINCH CLUTCH LEVER SHIFT LOCK

main38227-60050iHJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB198708-199001

38286COVER, WINCH

main38286-60050iHJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB198708-199001

main38286-60060iFJ62198808-199001

38317SUPPORT, ROLLER BRACKET, NO.1

main38317-60030iHJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB198708-199001

38318SUPPORT, ROLLER BRACKET, NO.2

main38318-60030iHJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB198708-199001

38321SHAFT, WINCH ROLLER

main38321-60010×2iHJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB198708-199001

main38321-60150×2iFJ62198808-199001

38321ANUT, HEXAGON (FOR WINCH ROLLER SHAFT)

main90170-14057×2iHJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB198708-199001

38323ROLLER, WINCH WIRE GUIDE, NO.1

main38302-60010×2iHJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB198708-199001

main38323-60150×2iFJ62198808-199001

38324ROLLER, WINCH WIRE GUIDE, NO.2

main38324-60040×2iFJ62198808-199001

main38324-60150×2iHJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB198708-199001

38324BBOLT, HEXAGON (FOR WINCH WIRE GUIDE ROLLER)

main90101-12029×2iHJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB198708-199001

38325BRACKET, WINCH ROLLER, NO.1

main38325-60140iHJ60..LHD..MTM..SRF..LUB198708-199001

main38325-60150iFJ62198808-199001

38329SPACER, WINCH WIRE GUIDE ROLLER

main38329-60040×2iFJ62198808-199001

main90387-13027×2iHJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB198708-199001

38351BASE, WINCH

main38351-60040iHJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB198708-199001

38362SPACER, WINCH ROLLER BRACKET

main38362-60020×2iHJ61..GX;HJ60..STD;HJ60..LHD..MTM..SRF..LUB198708-199001

9161140825

main91611-40825

9161141025

main91611-41025

9161141035

main91611-41035

9161161025

main91611-61025

9161961235

main91619-61235

9411551200

main94115-51200

9451201200

main94512-01200

21 parts on this diagram · 6 diagrams in section
