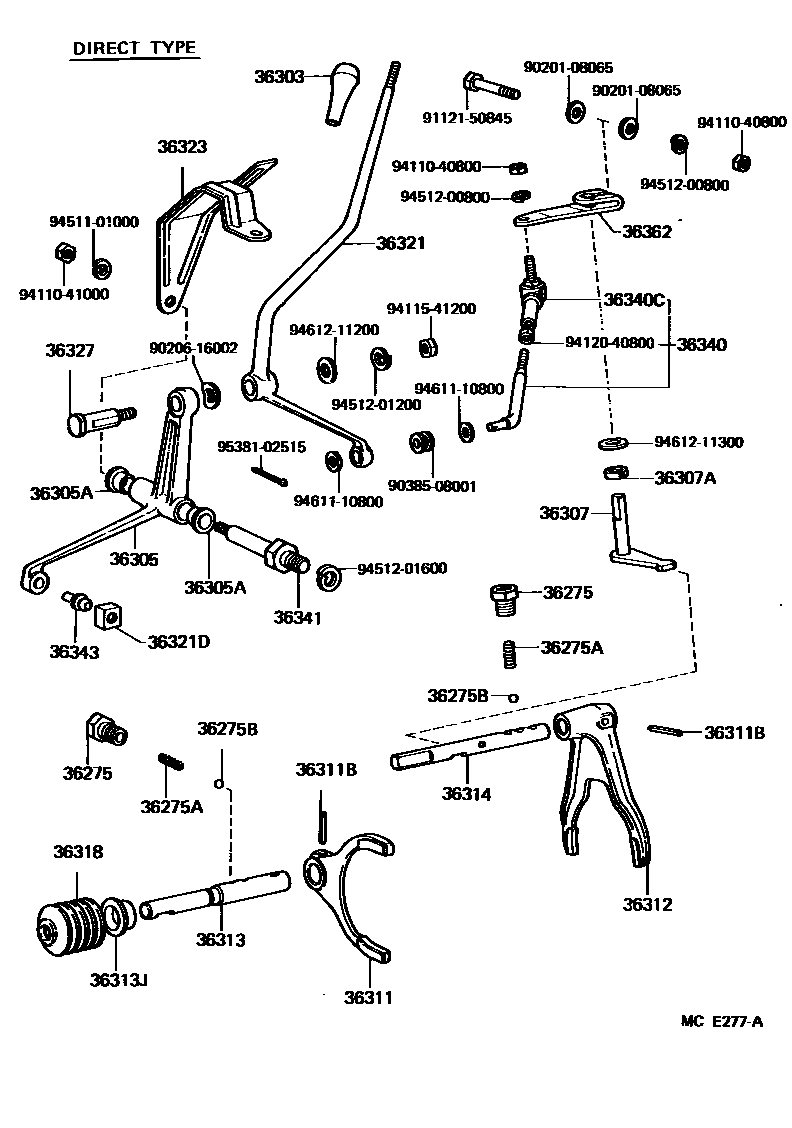

TRANSFER LEVER & SHIFT ROD
36275PLUG, SHIFT DETENT BALL SPRING
W(*ELC)
36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)
L=17.7
36275BBALL, SHIFT DETENT
OD=9.52,STEEL
OD=9.52,STEEL,W(*ELC)
36303KNOB SUB-ASSY, SHIFT LEVER
W(*ELC)
36305LEVER SUB-ASSY, FRONT DRIVE SHIFT LINK
36305ABUSH (FOR FRONT DRIVE SHIFT LINK LEVER)
36307LEVER SUB-ASSY, HIGH & LOW SHIFT INNER
W(*ELC)
36307ASEAL, OIL (FOR HIGH & LOW SHIFT INNER LEVER)
36311FORK, TRANSFER GEAR SHIFT, NO.1
36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
L=36.0,L=36.0
L=25.5,L=25.5
L=25.5
36312FORK, TRANSFER GEAR SHIFT, NO.2
W(*ELC)
36313SHAFT, TRANSFER FRONT DRIVE SHIFT
W(*ELC)
36313JSEAL, OIL (FOR TRANSFER FRONT DRIVE SHIFT SHAFT)
36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK
36318BOOT, TRANSFER FRONT DRIVE SHIFT
36321LEVER, TRANSFER FRONT DRIVE SHIFT
36321DBUSH (FOR TRANSFER SHIFT LEVER)
36323GUIDE, TRANSFER SHIFT LEVER
36327SHAFT, TRANSFER SHIFT LEVER
W(*ELC)
36340ROD ASSY, HIGH AND LOW SHIFT, NO.2
36340CEND ASSY, HIGH & LOW CONNECTING ROD
36341SHAFT, FRONT DRIVE SHIFT LINK SUPPORT
36343SHOE, FRONT DRIVE SHIFT LINK LEVER (FOR DIRECT TYPE)
36362LEVER, TRANSFER HIGH AND LOW SHIFT OUTER
W(*ELC)
9020108065
main90201-08065
9020616002
main90206-16002
9038508001
main90385-08001
9112150845
main91121-50845
9411040800
main94110-40800
9411041000
main94110-41000
9411541200
main94115-41200
9412040800
main94120-40800
9451101000
main94511-01000
9451200800
main94512-00800
9451201200
main94512-01200
9451201600
main94512-01600
9461110800
main94611-10800
9461211200
main94612-11200
9461211300
main94612-11300
9538102515
main95381-02515
40 parts on this diagram · 2 diagrams in section
