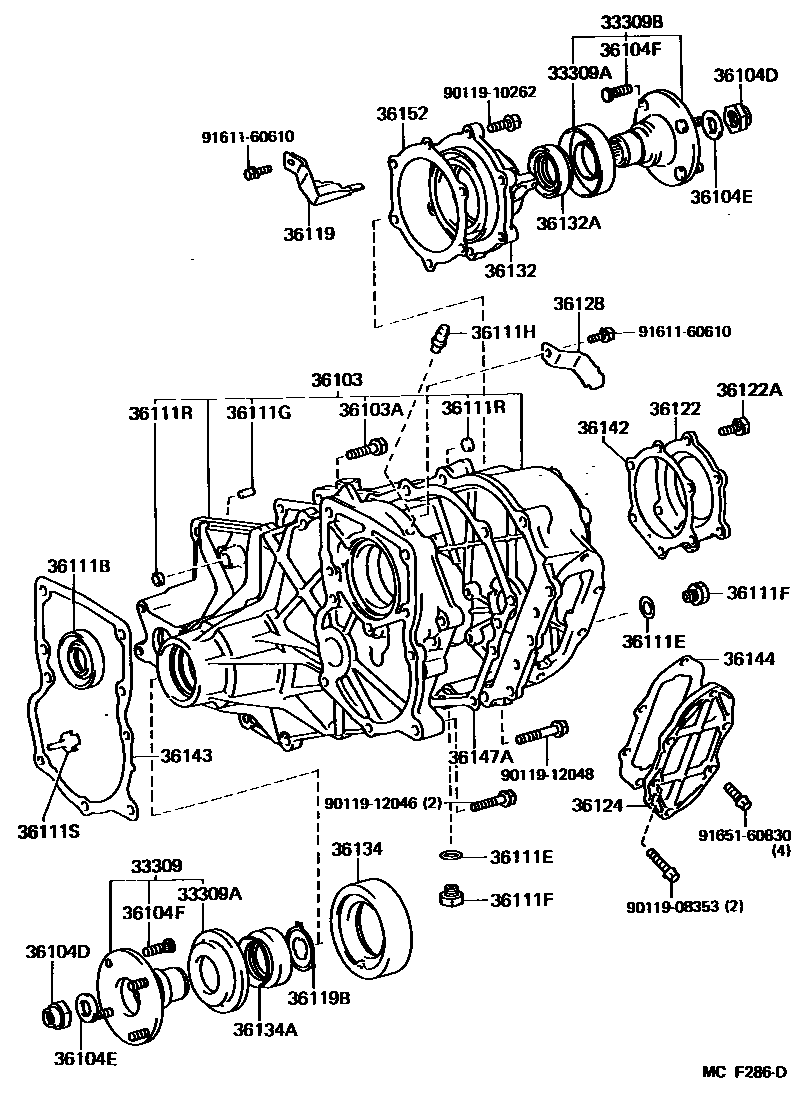

TRANSFER CASE & EXTENSION HOUSING

33309FLANGE SUB-ASSY, TRANSFER OUTPUT SHAFT COMPANION

main33309-60070iFJ62,HJ6#198708-199001

33309ADEFLECTOR, DUST

main33325-60010iFJ62,HJ6#198708-199001

FR

main33325-60021iFJ62,HJ6#198708-199001

RR

33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-60041iFJ62,HJ6#198708-199001

36103CASE SUB-ASSY, TRANSFER

main36103-60140iHJ6#..MTM198708-199001

main36103-60150iHJ60..RHD198708-199001

W(*ELC)

main36103-60160iFJ62,HJ60..ATM198708-199001

36103ABOLT (FOR TRANSFER CASE)

main91651-61030iFJ62,HJ6#198708-199001

*10-1.25PX30-30

main91651-61040iFJ62,HJ6#198708-199001

*10-1.25PX40-30

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-22005iFJ62,HJ6#198708-199001

36104EWASHER, PLATE (FOR TRANSFER OUTPUT SHAFT)

main90201-22005iFJ62,HJ6#198708-199001

36104FBOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90114-11124iFJ62,HJ6#198708-199001

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-48012iHJ6#..MTM198708-198801

main90316-48003iHJ60..ATM198708-199001

36111EGASKET (FOR TRANSFER CASE)

main90430-18008iFJ62,HJ6#198708-199001

36111FPLUG (FOR TRANSFER CASE)

main90341-18006iFJ62,HJ6#198708-199001

FILLER PLUG

main90341-18057iFJ62,HJ6#198708-199001

DRAIN PLUG

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10006iFJ62,HJ6#198708-199001

L=24,0D=10

36111HPLUG, BREATHER (FOR TRANSFER CASE)

main90930-03075iFJ62,HJ6#198708-199001

36111RPLUG, TIGHT (FOR TRANSFER CASE)

main96411-11600iFJ62,HJ6#198708-199001

36111SPIPE, OIL RECEIVER

main33124-36010iHJ6#..MTM198708-199001

36119RECEIVER, TRANSFER OIL, NO.1

main36119-60010iFJ62,HJ6#198708-199001

sub36119-60011

36119BRECEIVER, TRANSFER OIL, NO.2

main36119-60030iFJ62,HJ6#198708-199001

36122COVER, TRANSFER CASE, NO.2

main36122-60040iFJ62,HJ6#198708-199001

36122ABOLT (FOR TRANSFER CASE)COVER NO.2

main91611-61020iFJ62,HJ6#198708-199001

sub91612-B1020

36124COVER, TRANSFER POWER TAKE-OFF

main36124-60020iFJ62,HJ6#198708-199001

36128DEFLECTOR, BREATHER OIL

main36128-60021iFJ62,HJ6#198708-199001

36132RETAINER, OUTPUT SHAFT BEARING, REAR NO.1

main36132-60020iFJ62,HJ6#198708-199001

sub36132-60021

sub90311-48023

36132ASEAL, OIL (FOR OUTPUT SHAFT RETAINER)

main90311-48010iFJ62,HJ6#198708-199001

36134RETAINER, OUTPUT SHAFT BEARING, FRONT

main36134-60020iFJ62,HJ6#198708-199001

36134ASEAL, OIL (FOR OUTPUT SHAFT BEARING FRONT RETAINER)

main90311-48009iFJ62,HJ6#198708-199001

sub90311-48022

36142GASKET, TRANSFER COVER

main36142-60030iFJ62,HJ6#198708-199001

36143GASKET, TRANSFER CASE, FRONT

main33142-60030iHJ6#..MTM198708-199001

main36143-60030iFJ62,HJ60..ATM198708-199001

sub36143-60040

36144GASKET, TRANSFER POWER TAKE-OFF COVER

main36144-60020iFJ62,HJ6#198708-199001

36147AGASKET, TRANSFER CASE

main36143-60020iFJ62,HJ6#198708-199001

36152GASKET, OUTPUT SHAFT BEARING RETAINER

main36152-60030iFJ62,HJ6#198708-199001

9011908353

main90119-08353

9011910262

main90119-10262

9011912046

main90119-12046

9011912048

main90119-12048

9161160610

main91611-60610

9165160830

main91651-60830

36 parts on this diagram · 1 diagram in section
