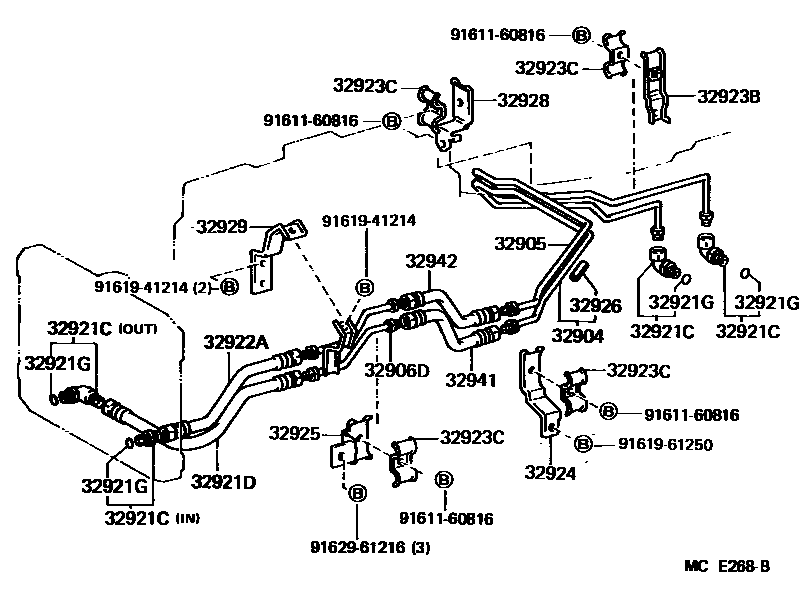

OIL COOLER & TUBE (ATM)
32904TUBE SUB-ASSY, OIL COOLER INLET, NO.1
32905TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1
32906TUBE SUB-ASSY, OIL COOLER
32906DTUBE SUB-ASSY, OIL COOLER, NO.2
32921CUNION(FOR OIL COOLER TUBE)
RADIATOR SIDE INLET
RADIATOR SIDE OUTLET
TRANSMISSION SIDE
RADIATOR SIDE INLET
32921DHOSE(FOR OIL COOLER INLET)
32921GRING, O(FOR OIL COOLER TUBE UNION)
32922AHOSE(FOR OIL COOLER OUTLET)
32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32924CLAMP, OIL COOLER TUBE, NO.2
32925CLAMP, OIL COOLER TUBE, NO.3
32926CUSHION, OIL COOLER TUBE(ATM)
L=35,ID=10
32928CLAMP, FLEXIBLE HOSE, NO.1
32929CLAMP, FLEXIBLE HOSE, NO.2
32941HOSE, OIL COOLER INLET, NO.1
W(AIR C00LED TYPE 0IL C00LER)
W(AIR C00LED TYPE 0IL C00LER)
32942HOSE, OIL COOLER OUTLET, NO.1
W(AIR C00LED TYPE 0IL C00LER)
9161160816
9161941214
main91619-41214
9161961250
9162961216
21 parts on this diagram · 4 diagrams in section
