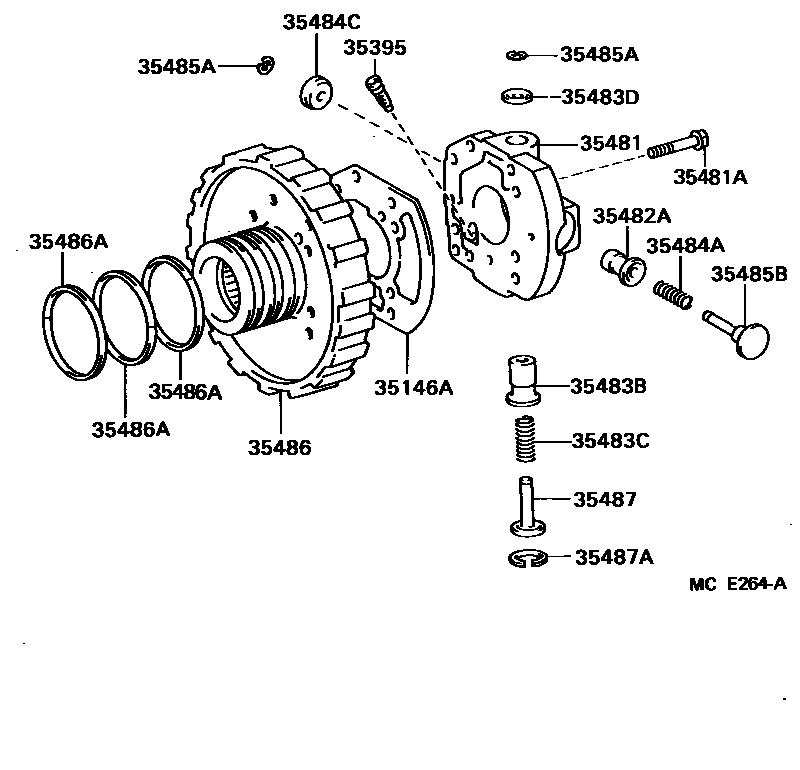

REAR OIL PUMP & GOVERNOR (ATM)

35146AGASKET, GOVERNOR BODY

main35146-36010iFJ62,HJ60..ATM198708-199001

35395STRAINER, GOVERNOR OIL

main35395-36010iFJ62,HJ60..ATM198708-199001

35481BODY, GOVERNOR

main35481-36011iHJ60..ATM198708-198709

sub35481-36012

main35481-36012iFJ62,HJ60..ATM198709-199001

35481ABOLT (FOR GOVERNOR BODY)

main90105-06069iFJ62,HJ60..ATM198708-199001

35482AVALVE, GOVERNOR, NO.1

main35482-36010iHJ60..ATM198708-198709

sub35482-36011

main35482-36011iHJ60..ATM198709-199001

main35482-60020iFJ62198808-199001

35483BVALVE, GOVERNOR, NO.2

main35483-36010iHJ60..ATM198708-199001

main35483-60010iFJ62198808-199001

35483CSPRING, COMPRESSION (FOR GOVERNOR VALVE NO.2)

main90501-12081iHJ60..ATM198708-199001

main90501-12086iFJ62198808-199001

35483DSPACER (FOR GOVERNOR VALVE NO.2)

main90561-06006iFJ62,HJ60..ATM198708-199001

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-07038iHJ60..ATM198708-198709

sub90501-07068

main90501-07064iFJ62198808-199001

main90501-07068iHJ60..ATM198709-199001

35484CWEIGHT, GOVERNOR

main35484-36011iHJ60..ATM198708-199001

main35484-60011iFJ62198808-199001

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05002iFJ62,HJ60..ATM198708-199001

35485BSHAFT, GOVERNOR VALVE, NO.1

main35485-36010iHJ60..ATM198708-199001

main35485-60010iFJ62198808-199001

35486SUPPORT, GOVERNOR BODY

main35486-36010iFJ62,HJ60..ATM198708-199001

35486ARING (FOR GOVERNOR BODY SUPPORT)

main35735-36010iFJ62,HJ60..ATM198708-199001

35487SHAFT, GOVERNOR VALVE, NO.2

main35487-36010iFJ62,HJ60..ATM198708-199001

35487ARING, SNAP (FOR GOVERNOR VALVE SHAFT NO.2)

main96151-02500iFJ62,HJ60..ATM198708-199001

16 parts on this diagram · 1 diagram in section
