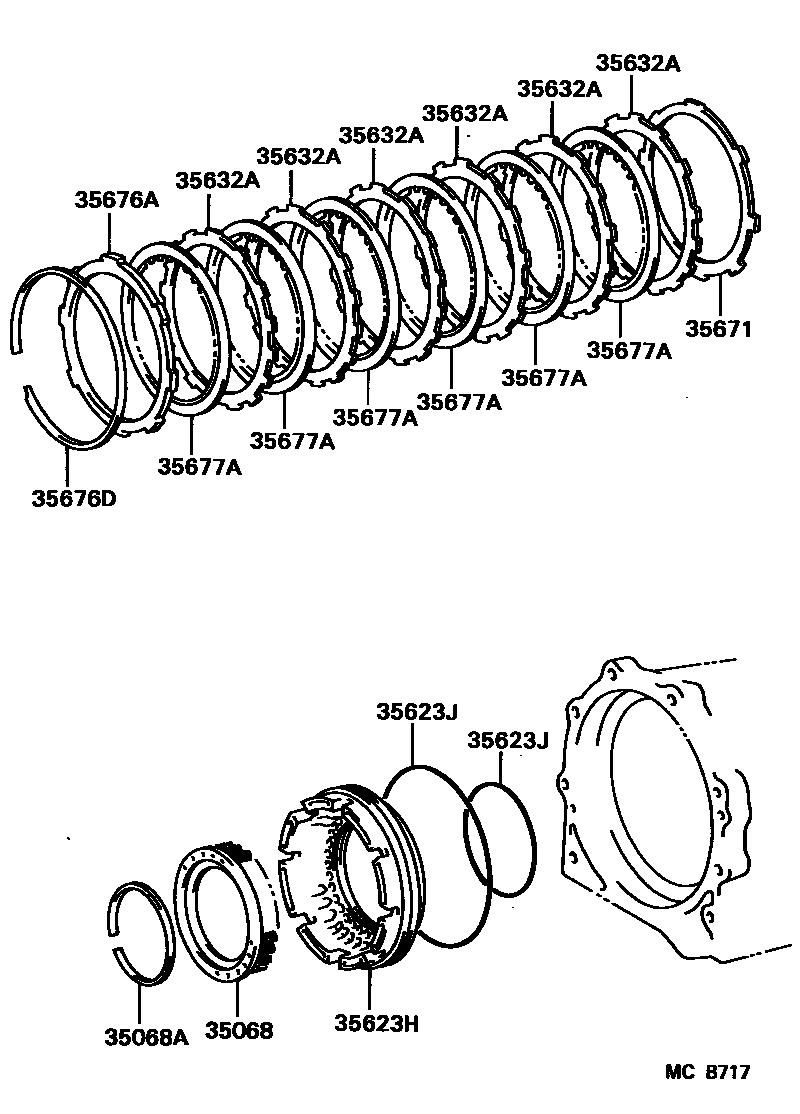

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-36010iFJ62,HJ60..ATM198708-199001

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-87001iFJ62,HJ60..ATM198708-199001

35623HPISTON, 1ST & REVERSE BRAKE

main35623-36010iFJ62,HJ60..ATM198708-199001

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94002iFJ62,HJ60..ATM198708-199001

INNER

main90301-99030iFJ62,HJ60..ATM198708-199001

OUTER

35632APLATE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35632-36020iFJ62,HJ60..ATM198708-199001

35671PLATE, BRAKE CUSHION

main35671-36010iFJ62,HJ60..ATM198708-199001

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-36070iFJ62,HJ60..ATM198708-199001

T=6.65

sub35676-60050

main35676-36080iFJ62,HJ60..ATM198708-199001

T=7.05

sub35676-60060

main35676-36090iFJ62,HJ60..ATM198708-199001

T=7.45

sub35676-60070

35676DRING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE)

main90521-99021iFJ62,HJ60..ATM198708-199001

sub90521-99109

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35633-36030iFJ62,HJ60..ATM198708-199001

sub35633-60030

9 parts on this diagram · 1 diagram in section
