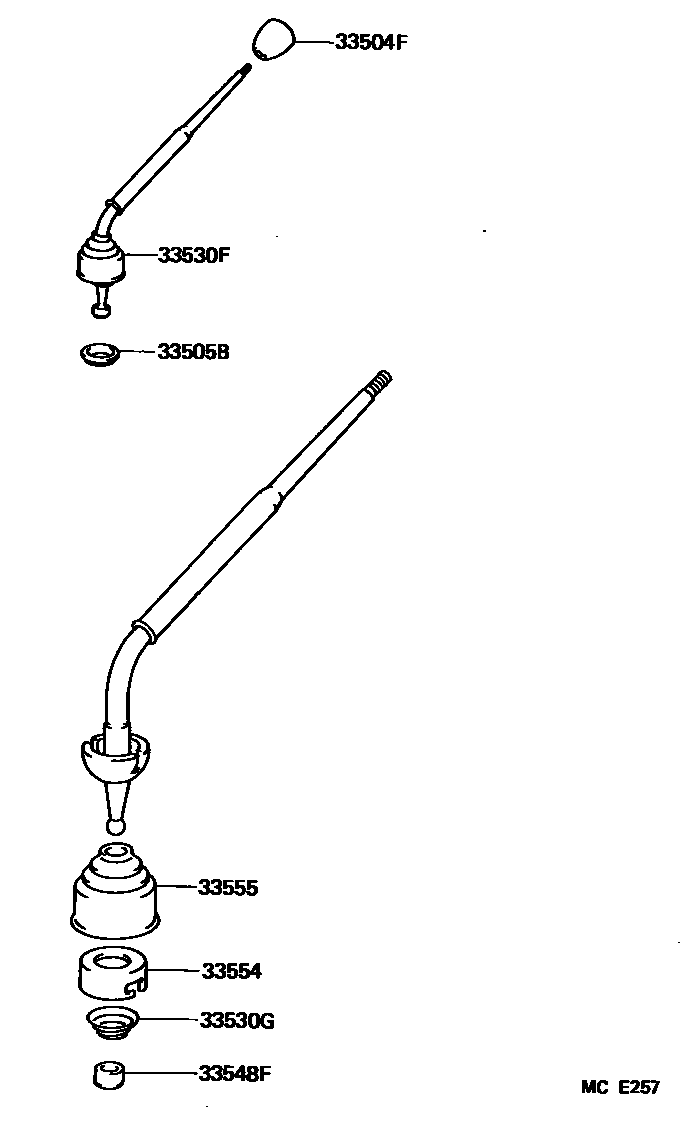

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-60060-01iHJ6#..MTM198708-199001

BLACK,BLACK,TRIM1#

sub33504-60060

sub33504-24010

main33542-30110-01iFJ62,HJ60..ATM198708-199001

BLACK,TRIM1#

sub33542-30110

sub33542-24030

main33542-30110-36iFJ62,HJ60..ATM198708-199001

SEPIA BROWN,TRIM4#

sub33542-30110

sub33542-24030

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-60011iHJ6#..MTM198708-198912

main33505-60020iHJ6#..MTM198912-199001

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-60150iHJ60..RHD198708-199001

main33530-60160iHJ6#..LHD..MTM198708-199001

33530GSPRING, CONICAL (FOR SHIFT LEVER)

main90502-29001iHJ60..ATM198708-199001

sub90502-29002

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-60020iHJ6#..MTM198708-199001

33554CAP, SHIFT LEVER

main33554-60021iHJ6#..MTM198708-199001

33555BOOT, SHIFT LEVER

main33555-55011iHJ6#..MTM198708-199001

main33555-60040iFJ62,HJ60..ATM198708-199001

7 parts on this diagram · 2 diagrams in section
