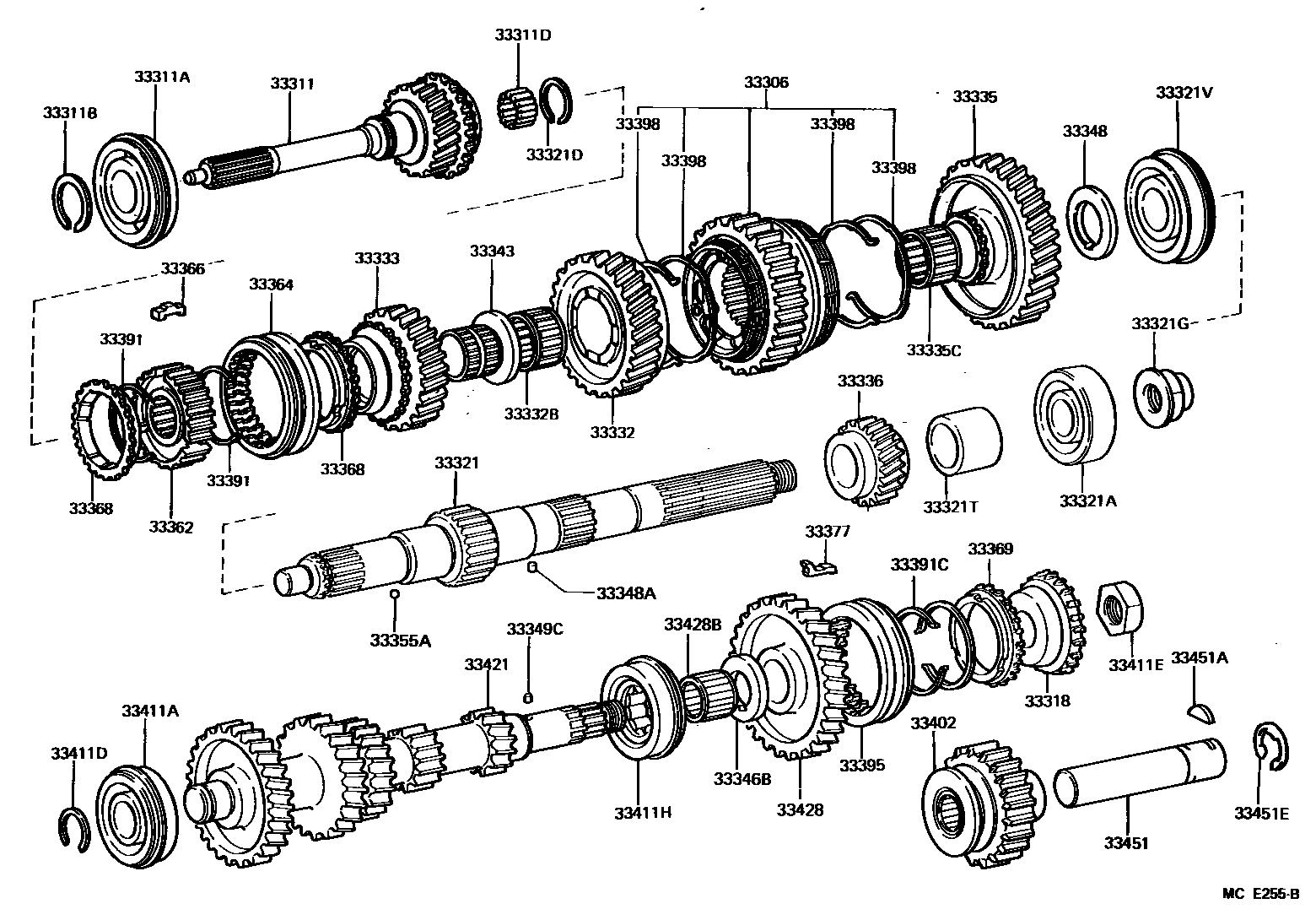

TRANSMISSION GEAR (MTM)
33306RING SUB-ASSY, SYNCHRONIZER, NO.1
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=3.31-3.42
T=3.20-3.31
33311DBEARING, INPUT SHAFT
33318PIECE, GEAR SPLINE, NO.5
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=2.40-2.45
T=2.45-2.50
T=2.50-2.55
T=2.55-2.60
T=2.60-2.65
T=2.65-2.70
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321TSPACER (FOR OUTPUT SHAFT)
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
33343BUSH, 3RD & 2ND GEAR
33346BWASHER, 5TH GEAR THRUST
33348WASHER, 1ST GEAR THRUST
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
33349CPIN (FOR 5TH GEAR THRUST WASHER)
33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
33362HUB, TRANSMISSION CLUTCH, NO.2
33364SLEEVE, TRANSMISSION HUB, NO.2
sub33364-36071
33366KEY, SYNCHROMESH SHIFTING, NO.2
33368RING, SYNCHRONIZER, NO.2
33369RING, SYNCHRONIZER, NO.3
33377KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33391CSPRING, SYNCHROMESH SHIFTING KEY, NO.2
33395SLEEVE, TRANSMISSION HUB, NO.3
33398HOLDER, SYNCHRONIZER RING
33402GEAR SUB-ASSY, REVERSE IDLER
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=2.05,MARK 0
T=2.15,MARK 2
T=2.25,MARK 4
33411ENUT(FOR COUNTER GEAR SHAFT)
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33428GEAR, COUNTERSHAFT 5TH
33428BBEARING (FOR COUNTER 5TH GEAR)
33451SHAFT, REVERSE IDLER GEAR
33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
33451ERING, E (FOR REVERSE IDLER GEAR SHAFT)
45 parts on this diagram · 1 diagram in section
