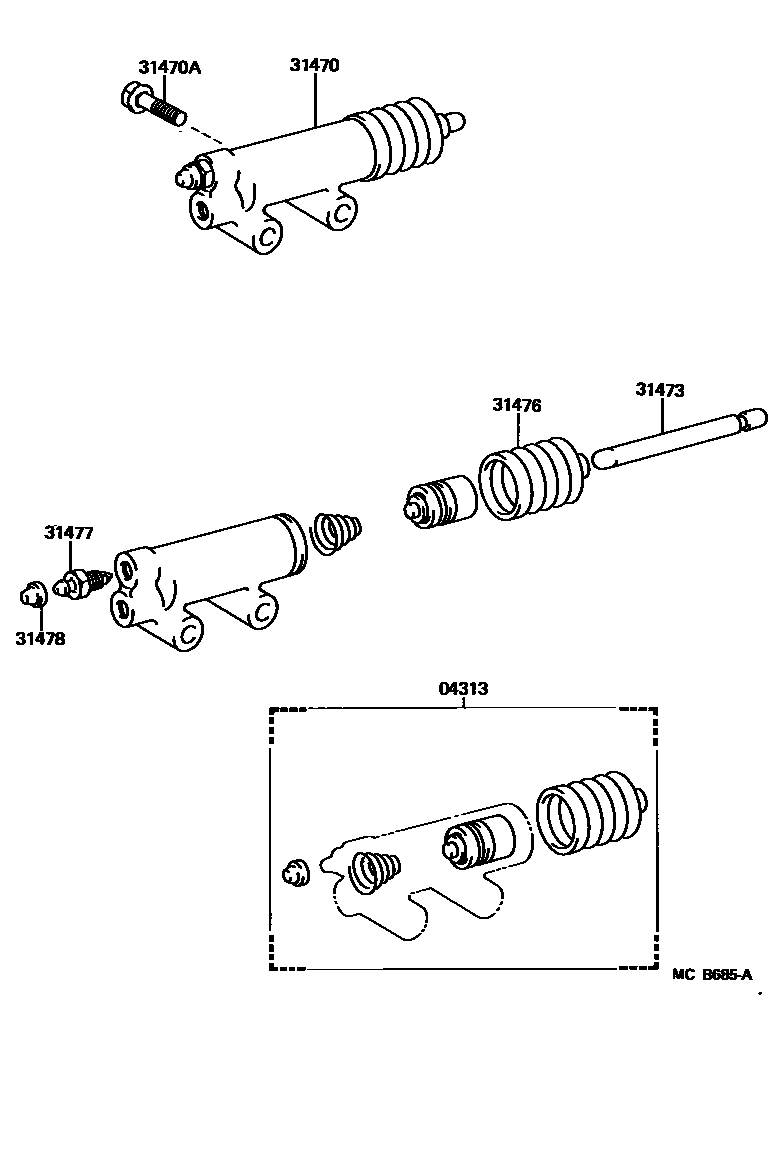

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-60050iHJ6#..MTM198708-199001

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-60101iHJ6#..MTM198708-199001

sub31470-60102

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-41045iHJ6#..MTM198708-199001

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-60080iHJ6#..MTM198708-199001

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-36010iHJ6#..MTM198708-199001

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iHJ6#..MTM198708-199001

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iHJ6#..MTM198708-199001

7 parts on this diagram · 1 diagram in section
